Description
PiCam module

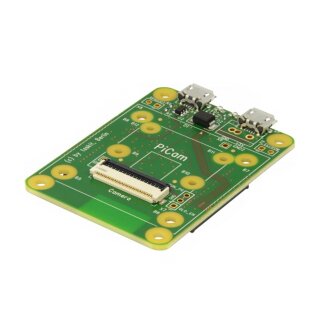

The PiCam module is the mechanical solution to connect a 15-pin camera* and the Raspberry Pi compute module 4*. This board offers the ideal connection for a compact mechanical design.
The Raspberry Pi compute module 4 (cm4, not included) can be plugged into the bottom of the PiCam module. The camera module (not included) is connected to the PiCam module via FFC/FPC ribbon cable. Reverse polarity must be avoided as a matter of urgency. If required, the camera module can also be mounted directly on the PiCam module, which achieves maximum compactness. The existing mounting holes cover a variety of Raspberry camera modules.
Any 15-pin camera should be connectable.
In addition, the PiCam module can generally also be used for programming of the Raspberry cm4.
PiCam Module
- USB-Interface for service (micro A)
- USB-Interface for power (micro A)
- 100 pin connector for connection to the cm4 module
- 15-pin camera connector
Technical Data
| Dimension: | 56.1 × 40.3 × 10.2 (length x width x height) mm |
| Weight: | 8.8g |
| Interfaces: | 2× USB (Power & Data), 1× 15pol. FFC/FPC-Connector (RPi) |
| Power Supply: | 5 Volt DC / 2A max. |
| Consumption: | 0.14 mA |
Included
- 1× PiCam module
- 1× Manual (ger & eng))
*Raspberry Pi CM4 and camera module are not included and are offered serparately
| Shipping weight: | 0.10 Kg |
