Arducam B0272 12MP IMX477 Motorized Focus High Quality Camera for Raspberry Pi

Artno.: AC2-202720

Arducam B0272 12MP IMX477 Motorized Focus High Quality Camera for Raspberry Pi

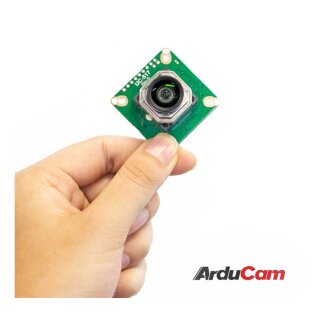

Arducam 12MP IMX477 Motorized Focus High Quality Camera for Raspberry Pi

109.00 € incl. 19% VAT

91.60 € excl. VAT

Free shipping

soon in stock

Shipping time: 2 - 4 business days

Description

This Arducam IMX477 High Quality motorized focus camera module integrates a motor that could be controlled by software for a smarter focus, and you will no longer focus the camera by screwing the lens with your bare hands. Instead, keyboard keys or OpenCV can be used to remotely control the focusing process of your HQ camera.

The same 12MP IMX477 High Quality Camera, but with smarter focus control – No more hand touching.

The intuitive focus control: Fine-tune the focus with keyboard arrow keys.
The automated focus control: Autofocus with OpenCV examples

Focus motor controlled via camera I2C.

Features

12MP IMX477 High Quality Camera - The same image sensor used in Raspberry Pi High Quality Camera. Natively works with existing commands, codes and examples.
I2C Focus Control - The focusing process is controlled via software instead of your bare hands. Use keyboard arrows keys to adjust the focus to the best or OpenCV autofocus examples to automate it.
Focus Distance: 80mm to infinity

Note:

This camera is developed and used for Raspberry Pi by default. If you want to use it on another platform, please contact sales@arducam.com for customization.

Specifications

Image Sensor

Sensor Model: IMX477
Shutter Type: Rolling shutter
Sensor resolution: 4056 x 3040 pixels, 12.3MP
Image Sensor Format: Type 1/2.3"
Pixel Size: 1.55 µm x 1.55 µm

Lens Assembly

Model No: M23390H08
Optical Format: 1/2.3"
Focal Length: 3.9mm
Aperture: F2.8
Field of View (FOV): 75° (H) on Raspberry Pi High Quality Camera, 50°(H) on Raspberry Pi V1/V2 Camera
Mount: M12 mount
Back Focal Length: 4.49mm
MOD: 0.3m
Dimension: F14×18.67mm
Weight: 5g

Camera Board

Board Size: 38mm×38mm
Hole Pitch: Compatible with 29mm, 30mm, 34mm

Note: It is not recommended to replace the default lens on the camera module, contact us first if needed.

Package Includes

1 × Arducam 12MP IMX477 Motorized Focus High Quality Camera for Raspberry Pi with lens
1 × 300mm 15pin-22pin flex ribbon cable for Raspberry Pi normal variants (Model As and Bs)
1 × 300mm 22pin-22pin flex ribbon cable for Raspberry Pi Zero and Compute Module
