Arducam B0315 HM01B0 QVGA Camera Module for Raspberry Pi Pico
Artno.: AC2-203150

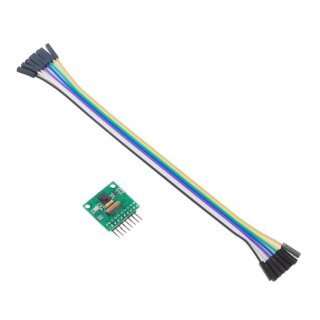

Arducam HM01B0 QVGA Camera Module for Raspberry Pi Pico

18.90 € incl. 19% VAT
15.88 € excl. VAT
10+ On stock

Shipping time: 1 - 3 business days

Description

Arducam HM01B0 is a camera module featuring ultra low power consumption, up to QVGA resolution, 1-bit video data interface and line sync. This, along with other specs make it a perfect camera for building machine vision projects and Always on Serivce applications with energy-efficient MCUs. It's designed specifically for Raspberry Pi Pico and other third party RP2040 dev boards. It's also the built-in camera of the Arducam Pico4ML.

Application

  • Machine Vision
  • Robotics
  • IoT

Specs

  • Ultra Low Power Image Sensor designed for Always-on vision devices and applications
  • High sensitivity 3.6µ BrightSenseTM pixel technology
  • 324 x 324 active pixel resolution with support for QVGA window, vertical flip and horizontal mirror readout
  • <1.1mW QQVGA resolution at 30FPS, < 2mW QVGA resolution at 30FPS
  • Programmable black level calibration target, frame size, frame rate, exposure, analog gain (up to 8x) and digital gain (up to 4x)
  • ? Automatic exposure and gain control loop with support for 50 / 60Hz flicker avoidance
  • Flexible 1-bit, 4-bit and 8-bit video data interface with video frame and line sync
  • Motion Detection circuit with programmable ROI and detection threshold with digital output to serve as an interrupt
  • On-chip self oscillator
  • I2C 2-wire serial interface for register access
  • CSP and Bare Die sensor package option
  • High CRA for low profile module design

Documentation

Arducam HM01B0 QVGA Camera Module for Raspberry Pi Pico

Datasheet-camera module

Datasheet-sensor

Schematic diagram

Demo

Package Contents

  • 1 x Arducam HM01B0 camera module

Datasheet
