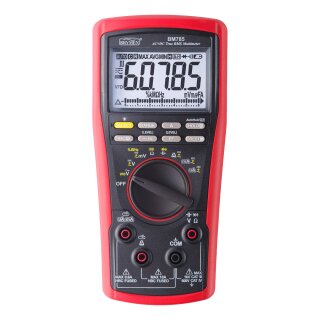

Brymen BM785 Multimeter
Description
The new Brymen BM780 multimeter series combines a high safety class of CAT IV 600V / CAT III 1kV in a robust, compact housing with integrated holster.
The resolution of 60 000 counts, a basic accuracy of 0.03% and the fast measuring rate (measured value 5 rdgs/s, bargraph 50 rdgs/s) enable reliable measurements. Extensive measuring and safety functions make the BM780 series the ideal companion for everyday use.
.Model Overview
| BM789 | BM786 | BM785 | ||
|---|---|---|---|---|
| Resolution (Counts) | 60 000 | |||
| Basic Accuracy | DCV | 0.03 % | ||
| DCA | 0.075 % | |||
| Specified Bandwidth | 100 kHz | 7 kHz | ||
| Update Rate | Display | 5 rdgs/s | ||
| Bargraph | 50 rdgs/s | |||
| BM789 | BM786 | BM785 | ||
|---|---|---|---|---|
| Measurement Class
Independently verified by IEC/UL/EN61010
|
CAT IV | 600 V | ||
| CAT III | 1000 V | |||
| Overvoltage Protection
For all ranges and inputs
|
Continuous | 1000 V | ||
| Peak | 8 kV | |||
| Auto Ranging | ||||
| True RMS | DC+AC | |||
| Voltage, Current | DC, AC, DC+AC | |||
| AutoV LoZ | ||||
| Frequency, Resistance, Capacitance, Diode Test | ||||
| Temperature | (Dual) | |||
| EF Measurment
Measurement of electric fields with non-contect voltage detection (NCV) or single probe tip |
||||
| Backlit Display | ||||
| MIN/MAX/AVG Recording
Auto Ranging
|
||||
| Relative Measurement | ||||
| Auto Hold | ||||
| Peak Hold | ||||
| BeepJack | ||||
Package Contents
- Device
- Test Leads
- User Manual
- BKP60 Temperature probe (BM786, BM789)
| Shipping weight: | 0.58 Kg |
