Description
Overview

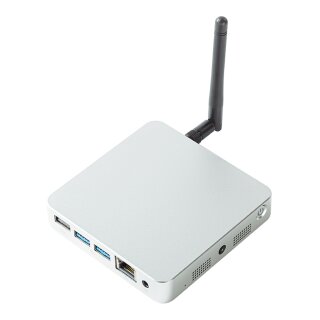

You only need to press the power button to start or shut down the computer like operating a Windows computer. The operating system can be installed on the SSD hard disk and it boot faster than from SD card. The large-capacity SSD hard disk can store various video data. The access speed of SSD hard disk is up to 300MB/S
CM4 Media installed Raspberry Pi certified external WiFi and Bluetooth dual-band antennas to provide better wireless signals.
You can load different application software to turn the CM4 Media multimedia computer into a network set-top box, network storage server, wireless access point and other different devices.
CM4 Media's case is made by CNC-cut aluminum alloy, very beautiful. The case provides excellent heat dissipation performance for the CPU, PMU and wireless module, which improves the system reliability. You can choose silver and pink color.
Specifications
| Category | Feature |
| Processor |
Broadcom BCM2711 quad-core Cortex-A72 (ARM v8) 64-bit SoC @ 1.5GHz H.265 (HEVC) (up to 4Kp60 decode), H.264 (up to 1080p60 decode, 1080p30 encode) OpenGL ES 3.1, Vulkan 1.0 |
| RAM | 1GB / 2GB / 4GB / 8GB LPDDR4-3200 SDRAM |
| Storage |
Onboard 0GB / 8GB / 16GB / 32GB eMMC 1x microSD Card Slot for system boot when choosing 0GB(CM4 Lite) eMMC Optional SSD Hard Disk Drive, support system boot (Capacity can be from 120GB ~ 1TB) |
| Display |
1x standard HDMI Out (Type A) 1x micro HDMI Out (Type D) |
| Camera | Optional Onboard SONY IMX219 8-megapixel Camera |
| Audio |
Built-in WM8960 Low power, High Quality Stereo CODEC Onboard 2 channel 1W Stereo Speakers Onboard 1 channel MEMS microphone Support headphone jack and external microphone |
| Wired Interface |
1x Gigabit Ethernet (10/100/1000M)
2x USB 3.0 Type-A 1x USB 2.0 Type-A |
| Wireless |
Optional 2.4 GHz, 5.0 GHz IEEE 802.11 b/g/n/ac wireless and Bluetooth 5.0, BLE with external antenna Optional 4G LTE (non-SSD Hard Disk version), 1x micro-SIM card slot |
| System | 1x RTC with CR1220 backup |
| Expansion Interface | 1x mini PCIe with 5Gb/s SATA and USB 2.0, compatible with 4G LTE Module and mSATA SSD Drive |
| Power In |
5V/3A DC USB Type-C |
| Buttons | 1x Power button |
| Indicator | 1x Blue LED Power Indicator integrated in Power button |
| Operating Temperature | 0 ~ 60°C |
| Operating Humidity | 10% - 60% |
| Case | Aluminum Alloy Case by CNC Cut |
| Dimension | 100(L) x 100(W) x 19(H) mm |
| Mounting Options | Desktop |
| OS |
Pre-installed with 32-bit Raspberry Pi OS with Desktop in eMMC or SSD Compatible with Origin Raspberry Pi OS, support 32-bit and 64-bit OS, support Lite and Desktop versions Support BSP online install / upgrade with APT tool |
Order Information
| ED | CM4MED | 10 | 0 | 2 | 10 | 4 | S |
|---|---|---|---|---|---|---|---|
| EDATEC | CM4 Media | 10 = V1.0 Version |
0 = Without WiFi & BT 1 = With WiFi & BT |
1 = 1GB DDR 2 = 2GB DDR 4 = 4GB DDR 8 = 8GB DDR |
SD = 32GB SD Card 10 = 120/128GB SSD 20 = 240/256GB SSD 50 = 500/512GB SSD 1T = 1TB SSD |
Blank = No 4G/LTE Module 4 = With 4G/LTE Module |
S = Silver Aluminium Case P = Pink Aluminium Case |
Example
| Part#: | ED-CM4MED10-1820-P |
| Configuration: | CM4 Media Computer V1.0 Version |
| 1pcs Raspberry Pi certified WiFi/Bluetooth Antenna | |
| 8GB DDR, 240/256GB SSD, WiFi & Bluetooth | |
| Pink Aluminium Case |
