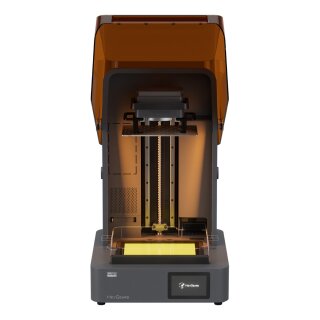

HeyGears UltraCraft Reflex 2 Pro

Artno.: HG1-429870
GTIN: 6971437942987
HAN: 11030301147
Manufacturers:

Large-format professional 3D resin printer with a huge 230 x 144 x 350mm build area. Features smart automation, precise heating control, and advanced light technology for consistent, high-quality prints. Perfect for dental labs, medical devices, and serious makers

from

3.568,00 €

incl. 19% VAT

(2.998,32 € excl. VAT)

On stock (short supply)
Delivery time: 1 - 3 business days (DE - int. shipments may differ)

Configure + Buy

The HeyGears Reflex 2 Pro is a powerful resin 3D printer that brings industrial-quality results to your workspace—without the industrial complexity.

With a generous 230 x 144 x 350mm printing area, you can create large prosthetics, dental models, or multiple small parts all at once. It's one of the largest build volumes in its class, meaning fewer batches and more productivity.

Model Overview

	Reflex 2 Pro	Reflex 2	Reflex Turbo	RS Turbo
	Hardware
Screen	10.7 Inch Amber Screen Pro		9.25 Inch Amber Screen	10.3 Inch Amber Screen Pro
Light Source	1032 Light Zones	161 Light Zones	COB Light Source	60 Light Zones
Optical Wavelength	385+ nm			405 nm

	Reflex 2 Pro	Reflex 2	Reflex Turbo	RS Turbo
Frame	Die-cast Unibody Base		Die-cast Base	N/A
Release Film Type	nFEP
Z-axis Module	C5 Grade Accuracy
Build Volume	230 x 144 x 350 mm	230 x 144 x 230 mm	192 x 121 x 220 mm	222 x 122 x 228 mm
	Intelligent Technology
Leveling Compatibility	240 ?m Gap Leveling
Resin Automatic Refill
Scraper	Heating Scraper	Standard Scraper
Resin Heating	Scraper-assisted Heating	Optional Scraper-Assisted Heating (Separate Purchase)	Resin Tank Heating	Resin Tank Heating (Separate Purchase)
Residue Detection	0.15 mm Residue		0.2 mm Residue
Print Monitoring	Force Curve Monitoring			Force Value Monitoring
Release Film Lifespan
	Others
Weight	29,7 kg	25,5 kg	25 kg	20 kg
Size	430 x 445 x 715 mm	430 x 445 x 605 mm	400 x 420 x 572 mm	380 x 360 x 584 mm
Compatible Resin	Kompatibel mit allen Materialien der Reflex-Serie			PARP10, PAS10, PAWW10, PAP10, PAWR10, PAF10, PAWW20, PAU11

Extended Specifications

Features

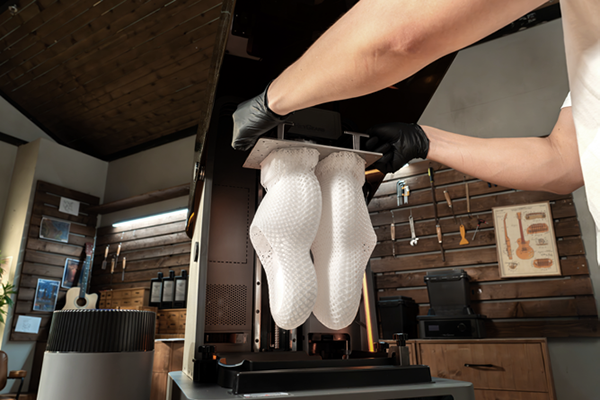

Larger Build Volume

With a 35 cm Z-height, the Reflex 2 Pro lets you print full-sized orthopedic products and shoes in a single run—no splitting, no compromises.

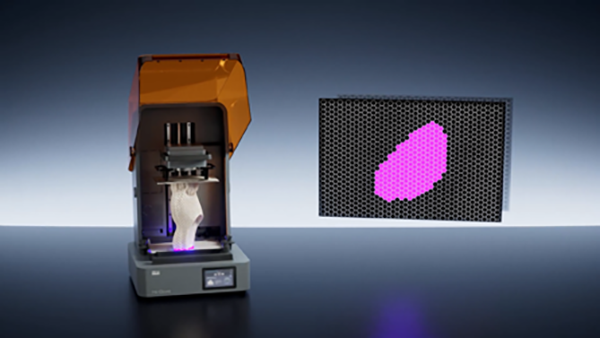

Precise Light Projection

With 1,032 individually controlled light zones, the Reflex 2 Pro delivers UV light exactly where it's needed. The result: smoother surfaces, lower energy use, and faster production.

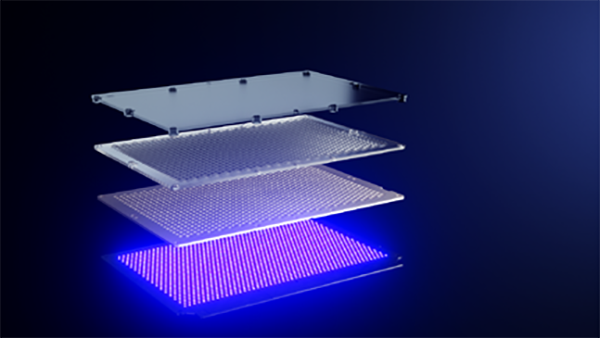

-Customized Lens Stack

The OptiZone Light Engine combines 1,032 custom collimating lenses with a dual-sided microlens array made up of 480,000 microlenses, delivering highly collimated and evenly distributed light.

Optimized Multi-Part Nesting

Powered by 1,032 individually controlled LEDs, the OptiZone Light Engine precisely matches the projected light area to the contours of every nested part. This avoids unnecessary exposure in empty spaces and improves both surface quality and dimensional accuracy.

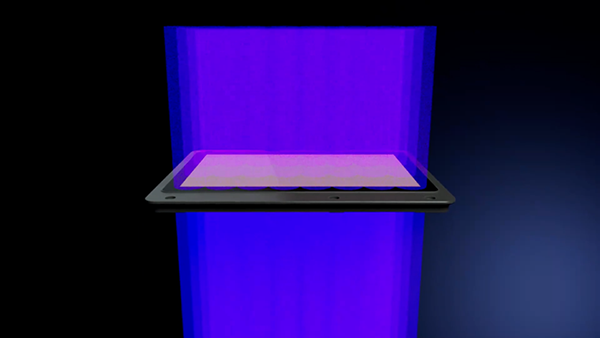

Higher Energy Transmission Rate

With a 10% energy transmission rate—twice that of conventional LCD printers—the Amber Screen Pro supports light intensities of up to 35 W/m². This reduces layer exposure time and expands the range of high-performance resins you can use. (*Data from HeyGears Lab, compared to conventional LCD screens with a 5% transmission rate.)

More Pressure Resistant

Built with reinforced support pillars in the liquid crystal layer, the Amber Screen Pro offers outstanding pressure resistance. It withstands over 10,000 cycles under a 40 kg load, making it ideal for continuous use with high-viscosity resins.

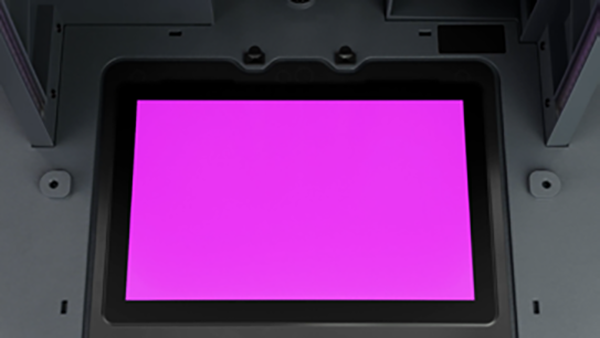

AI-Powered 86,000+ Zone Light Calibration

The upgraded MASK visual calibration algorithm uses 86,020 calibration zones to correct light intensity variations across the screen. This delivers at least 94% light uniformity and print accuracy within 0.05 mm.* (*HeyGears Lab data based on test models ? 20 mm in the XY direction, within a 95% confidence interval.)

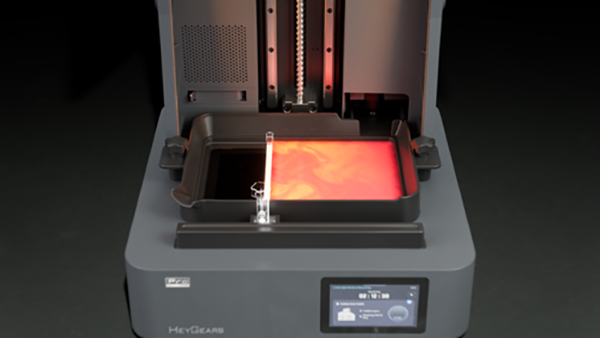

Intelligent Temperature Control

The built-in scraper heater stirs and heats resin from 10 °C to 22 °C in just 6 minutes—cutting warm-up time by 68%*. It then maintains the optimal printing temperature within ±1 °C throughout the entire print. (*HeyGears Lab data using UltraPrint-Production PAP10 resin.)

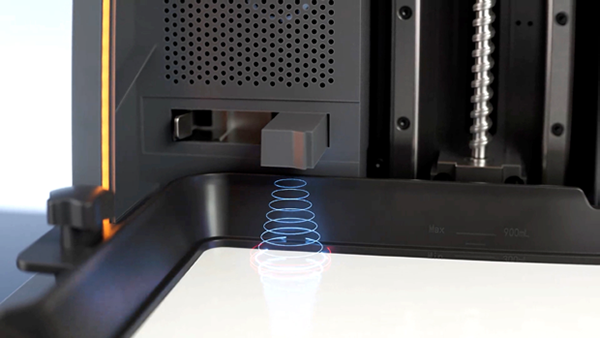

Auto Resin Refill with Ultrasonic Detection

A high-precision ultrasonic sensor measures the distance to the resin surface and calculates the liquid level within ±0.5 mm. This enables accurate resin monitoring and automatic refilling, reducing the need for manual checks.

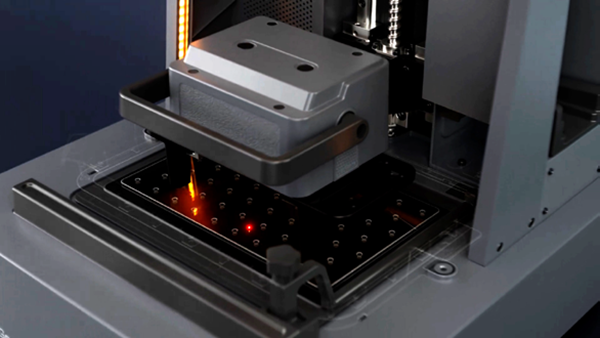

High-sensitivity Residue Detection

Force sensors with a sensitivity of 0.01 N can detect resin residue as small as 0.15 mm and automatically stop the print if residue or a failure is detected.

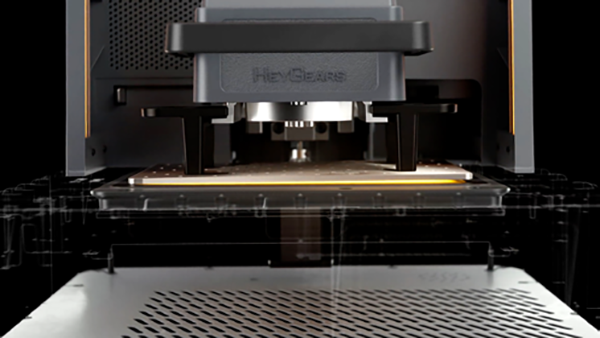

Floating Build Platform Auto Leveling

A floating build platform system with a deviation of just 0.15° automatically compensates for unevenness, eliminating gaps of up to 240 µm.

More Features
