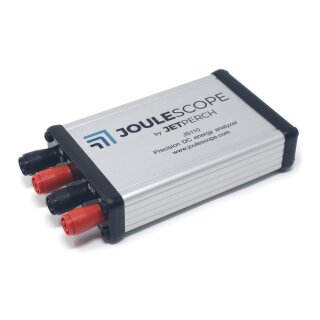

Jetperch Joulescope JS110 Precision DC Energy Analyzer
Artno.: JP5-101100
Precision measurement amplifier for DC current/voltage/power/energy, 250 kHz Bandwidth, 2 MS/s Sample Rate, 14 bit Resolution, USB Interface

849.00 € Special Price!
from 799.00 € incl. 16% VAT
688.79 € excl. VAT
On stock

Shipping time: 1 - 3 workdays

Description

The affordable and easy-to-use instrument that enables you to create better, more energy-efficient products. Measure current from nanoamps to amps while simultaneously measuring voltage, power, and energy.

  • 250 kHz bandwidth with 2 million samples per second, 14-bit, simultaneous current and voltage
  • Rapid 1 µs switching between shunt resistors for seamless dynamic current measurement
  • Computes power and total energy
  • Sensor ports electrically isolated from USB
  • Works with Microsoft Windows, Apple Mac OS X and Linux

All Joulescopes come fully calibrated from the factory at no additional cost. The ISO 17025:2017 NIST-traceable calibration option includes additional testing and calibration performed by Tra-Cal, an ANAB accredited calibration laboratory.

Model Overview

Joulescope JS110
Bandwidth 250 kHz
Sampling Rate 2 MS/s
Resolution 14 bit
Voltage Range -1 .. 15 V
Current Range -1 .. 3 A (10A Pulse) @ 1.5 nA Resolution
Interface USB 2.0 (electrically isolated)

Package Contents

  • Joulescope with installed banana jack front panel
  • USB Cable
  • T15 Torx screwdriver (for swapping the front panel)
  • Quick Start Guide
  • Carrying case

Features

Joulescope UI Software
The powerful Joulescope UI software for Windows, Mac and Ubuntu Linux is included as standard. It allows different data views, data logging, data export and more.

Shipping weight: 0.70 Kg
