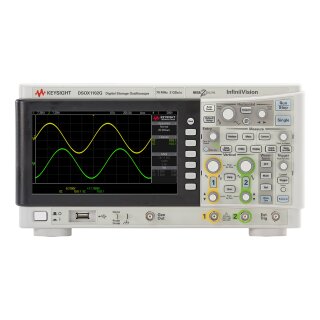

Keysight DSOX1102G Oscilloscope (100 MHz), 999,00 €

Keysight's InfiniiVision 1000 X-Series oscilloscopes are engineered to give you quality, industry-proven technology at unbelievably low prices. Now it's easy to get professional measurements and accessible expertise at your fingertips. Don't settle for less – and test to impress.

50 to 100 MHz bandwidth
See more signal detail with 50,000 wfms/sec update rate
Have confidence in your measurements with Keysight-custom technology that leverages more than 60 years of oscilloscope expertise
Test quickly and easily with a simple, intuitive user interface and built-in help and training signals
Get professional-level functionality with industry-leading software analysis and 6-in-1 instrument integration

Model Overview

Model	EDUX1002A	EDUX1002G	DSOX1102A	DSOX1102G
Bandwidth	50 MHz		70 MHz (100 MHz optional)
Sampling Rate	1 GSa/s		2 GSa/s
Waveform Update Rate	50,000 wfm/s
Channels	2 analog, 1 digital
Waveform Generator		20 MHz		20 MHz
Memory Depth	100 Kpts		1 Mpts
Segmented Memory
Trigger Types	Edge, pulse width, video, pattern/state		Edge, pulse width, video, rise/fall time, setup and hold, pattern/state
Serial Trigger (optional)	I2C, UART/RS232		I2C, UART/RS232, SPI, CAN, LIN
Decoding (optional)	I2C, UART/RS232		I2C, UART/RS232, SPI, CAN, LIN
Math Functions	Add, subtract, multiply, divide, FFT (magnitude and phase), low pass filter
Bode Plot Test
Mask/Limit Testing
Digital Voltmeter Free with product registration
Interfaces	USB Host, USB Device
Standard Probes	2 pcs N2142A (75 MHz)		2 pcs N2140A (200 MHz)
Display	7" WVGA TFT-LCD (800x480 pixel)

Included with Delivery

Oszilloscope
Passive probes (2 pcs N2142A 75 MHz for EDUX1002, 2 pcs N2140A 200 MHz for DSOX1102)
Power cord
Three-Year Keysight Warranty

Features

MegaZoom technology

Keysight's custom ASIC technology combines the capabilities of an oscilloscope and WaveGen built-in function generator in a compact form factor at an affordable price. 4th generation MegaZoom technology enables the fast waveform update rate with responsive memory acquisitions.

High update rate

With the unique, Keysight-designed MegaZoom IV custom ASIC technology, the InfiniiVision 1000 X-Series family delivers up to 50,000 waveforms per second. With this speed, you can clearly see the glitches and anomalies that you may miss on other oscilloscopes in this class.

Analog buses

Channel 1, 2 and external trigger can be combined to form a bus with hex or binary values displayed as the bus along the bottom of the display.

Powerful WaveGen (EDUX1002G/DSOX1102G only)

The integrated function generator provides stimulus output of sine, square, ramp, pulse, DC and noise waveforms to your device under test. Add modulation to the signal with customizable AM, FM and FSK settings.

Frequency response analyzer (EDUX1002G/DSOX1102G only)

Easy-to-use gain and phase analysis is possible by utilizing the 1000 X-Series' built-in WaveGen. Record the Bode plot of any circuit from 20 Hz to 20 MHz!

Digital voltmeter and frequency counter

The 1000 X-Series has an integrated 3-digit voltmeter (DVM) and 5-digit frequency counter inside each oscilloscope. You can quickly measure AC RMS, DC, DC RMS and frequency without configuring the oscilloscope capture. The voltmeter results are always displayed, keeping these quick characterization measurements at your fingertips.

Integrated training signals

All models come standard with built-in training signals, that enable users to quickly learn to capture and analyze simple (e.g. sine wave) or complex (e.g. radar pulse) signals with controlled real-time signal generation.

Automatic measurements

With automatic measurements you can quickly analyze signals and determine signal parameters. Up to four individual measurements can be displayed in real-time with continuous updates on the screen.

24 measurement types

The 1000X series supports 24 measurement types that can be taken simultaneously.

Cursors and zooming

Cursors allow you to quickly make detailed measurements on the waveform. Whether you are measuring voltage, time or frequency, the set of X and Y cursors support precise user-defined measurement. Zoom in to see signal detail, and use the cursors to easily make exact measurement.

Math functions

Math functions let you perform an arithmetic operation (like add, subtract or multiply) on analog input channels or perform a transform function on the result of an arithmetic operation.

FFT (Fast Fourier Transform)

Use the FFT function to find crosstalk problems; distortion problems in analog waveforms caused by amplifier non-linearity; and to adjust analog filters. Multiple FFT window functions are supported to provide required signal analysis.

Mask test (DSOX1102 only)

The 1000 X-Series' hardware-based mask testing can quickly validate a signal's quality and detect errors with up to 50,000 tests per second. Whether performing pass/fail tests to specified standards in manufacturing or testing for infrequent signal anomalies in R&D debug, the mask test option can be an invaluable tool.

Hardware-based serial protocol decode and triggering (optional)

The 1000 X-Series can be a powerful protocol analyzer that can do decoding and hardware-based triggering that enables specialized serial communication analysis. Other vendors' oscilloscopes use software post-processing techniques that slow down the waveform and decode update rate, but the 1000 X-Series has faster decoding by using hardware-based technology that enhances scope usability and the probability of capturing infrequent serial communication errors.
