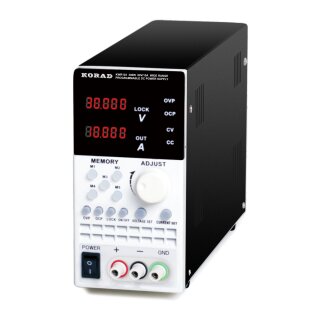

Korad KWR103 Wide Range Benchtop Power Supply (Screw Terminals)
Artno.: KR1-301030
Wide Range Benchtop Power Supply, 1 channel (60V/15A), 300W, 1mV/1mA resolution, LAN / USB / RS232 / RS485 interface
Variant
295.00 € incl. 19% VAT
247.90 € excl. VAT
Out of stock

Description

The KWR series of programmable DC power supplies, featuring a wide voltage and current range, offers versatile output configurations, such as 30V/30A and 60V/15A. This flexibility enhances equipment utilization for users and minimizes redundant investments in power supplies with different specifications, thereby significantly reducing input costs. Additionally, the power supply includes essential features like Over Voltage Protection (OVP), Over Current Protection (OCP), and Over Temperature Protection, allowing users to set the rising slope of the voltage to prevent instantaneous surges.

Furthermore, the KWR series is equipped with LAN, USB, and RS232 interfaces, enabling not only conventional DC power supply and testing applications but also facilitating a range of high-speed, dynamic test programs, and specialized applications. Examples include high-current contact life tests, battery charge tests, and high-current LED characteristics tests. This comprehensive set of features positions the KWR series as a reliable and versatile solution for diverse power supply and testing needs.

Models KWR102 KWR103
Power 300W 300W
Voltage 0-30V 0-60V
Current 0-30A 0-15A
Load Regulation
Voltage ≤0.01%+1mv ≤0.01%+1mv
Current ≤0.1%+3mA ≤0.1%+3mA
Line Regulation
Voltage ≤0.01%+3mv ≤0.01%+3mv
Current ≤0.1%+3mA ≤0.1%+3mA
Setup Resolution
Voltage 1mV 1mV
Current 1mA 1mA
Read Back Resolution
Voltage 1mV 1mV
Current 1mA 1mA
Setup Accuracy(25? ± 5?)
Voltage ≤0.5%+3mV ≤0.5%+5mV
Current ≤0.5%+3mA ≤0.5%+3mA
Ripple(20-20M)
Voltage ≤1mVrms+0.03%of current output ≤1mVrms+0.03%of current output
Current ≤5mArms ≤5mArms
Voltage Rise Time
Voltage ≤50ms ≤50ms
Current ≤50ms ≤50ms
Temp.Coefficient
Voltage ≤150ppm ≤150ppm
Current ≤150ppm ≤150ppm
Read Back Temp.Coefficient
Voltage ≤150ppm ≤150ppm
Current ≤150ppm ≤150ppm
Accessories
User manual, power cord, software CD, USB cable & LAN cable
Interfaces
 USB, RS232 & LAN
Weight and Dimension
87mm(W)*175mm(H)*290mm(D);2.2KGS

Shipping weight: 5.10 Kg
