Miniware MDP-M01 Control Module
Description

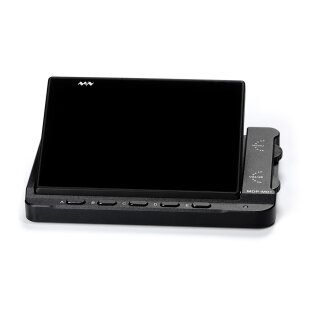

MDP-M01 is a display control module equipped with a 2.8-inch TFT display screen. The screen can beturned 90degrees, which is convenient forusers to view data. MDP-M01 can realize online display and control with MDP-P905 mini digital power supply module and other modules of MDP system through 2.4G wireless communication. And can control up to 6 sub-modules at the same time.
Specifications
- Screen Size: 2.8-inch TFT display screen
- Input: 3.6~5.5V, 0.1A
- Size: 101.5mm×64mm×2mm
- Screen Resolution: 240×320
- Controllable Channel Number: 6
- Weight: 133g
Contents
- 1× MDP-M01 Digital Power Supply
- 1× Output Cablex 1
- 1× Safety Instructions
| Shipping weight: | 0.26 Kg |
User Manual MDP-M01
