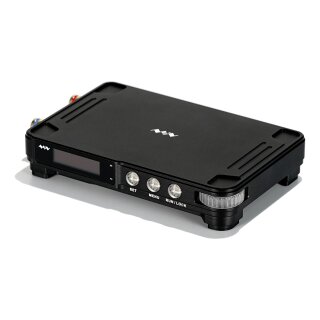

Miniware MDP-P906 Power Supply Module

The MDP (Mini Digital Power System) is a modular, programmable power supply system. Multiple modules can be combined as needed to create a multi-channel system tailored to the target application.

The MDP-XP consists of a display control module MDP-M01 and a digital power module MDP-P905 or MDP-P906. The wireless 2.4 GHz connection allows several channels (90W output power each) to be freely combined. The MDP-XP is a linear DC power supply with high stability and reliability with an innovative user interface. The MDP-XP can be compared with significantly larger and more expensive power supply gear.

The MDP-M01 display control module is equipped with a 2.8-inch TFT screen and can display voltage and current waveforms in real-time, supports data statistics and can be linked to a maximum of six power modules simultaneously. The power module is based on highly efficient hybrid technology: The output is controlled by a low-noise switching regulator with a downstream linear regulator and thus offers a very low residual ripple of typ. 0.25 mV, fast transient response and precise fine tuning.

MDP-P906 is the second digital power supply module of MDP series, following MDP-P905. 2.4G wireless connection, supporting wireless connection to Display Control module. 95% High efficiency programmable linear output, max 300W power output. Built-in low noise & high-speed cooling fan. Ultra high-speed transient response & ultra low ripple and noise. Support multiple in-series and in-parallel connection to output higher voltage. Support firmware upgrade.

Specifications

• Input: DC4.2V-30V 14A (Max), QC3.0/PD2.0 20V 5A (Max)
• Adjustment Rate: Load Adjustment Rate <±0.01^% Power Adjustment Rate <±0.01^%
• Transient Response Time: ≤ 4μS
• Protection: Input over-voltage, under-voltage, reverse connection protection, output over current, back-flow protection and over temperature protection
• Output: 0-30V 0-10A 300W (Max)
• Ripple and Noise: <250μVrms, 3mVpp; <2mArms
• Output accuracy: 0.03%+5mV, 0.05%+2mA
• Others: Automatically shut down and enter micro-power mode; Support USB firmware upgrade
• Data Transfer Interface: Micro USB Port
• Certification: Compliant with EU Certification CE FCC
• Net Weight: MDP-P906 181g

Contents

• 1× MDP-P906 Digital Power Supply
• 2× Output Cable
• 1× Safety Instructions
