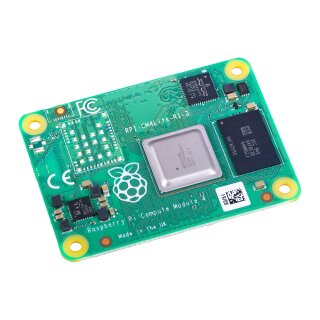

Raspberry Pi Compute Module CM4001000 (Lite, 1 GB RAM)
Artno.: RP1-403180
Raspberry Pi Compute Module 4, 4x1.5 GHz BCM2711 CPU, 1 GB RAM, no eMMC, no Wireless Interface
Variant
31.90 € incl. 19% VAT
26.81 € excl. VAT

plus shipping

Unit Price:
From incl. 19% VAT excl. VAT
250 31.00 € 26.05 €
50+ On stock

Shipping time: 1 - 3 business days

Your configuration
31.90 € incl. 19% VAT *

Description

Note: Due to the current supply situation, the maximum order quantity is limited in the webshop. Please contact us if you want to place a backorder with higher quantities.

The Raspberry Pi Compute Module 4 brings the power of the Raspberry Pi 4 to embedded applications with a compact form factor. The CM4 features a quad-core ARM Cortex-A72 processor, dual video output and a wide range of other interfaces.

The Raspberry Pi CM4 is available in 32 variants and is optimally tailored to your application with a range of RAM and eMMC flash options and with or without integrated WLAN/Bluetooth module.

Official accessories allow a quick start:

  • CM4 IO Board: The IO Board provides all CM4 interfaces to external connectors. It serves as a development platform or can be integrated into your end products.
  • CM4 Antenna Kit: The Antenna Kit can be connected to the CM4 via the U.FL connector and offers optimal WLAN signal reception. It is specifically designed and certified for the CM4.

Model Overview

Raspberry Pi CM4 Raspberry Pi CM3+
CPU 4x 1.5 GHz (64-bit)
Broadcom BCM2711
(Cortex-A72, ARM v8)
4x 1.2 GHz (64-bit)
Broadcom BCM2837B0
(Cortex-A53, ARM v8)
RAM 1/2/4/8 GB LPDDR4 1 GB LPDDR2
eMMC Size 0/8/16/32 GB
Bandwidth up to 100 MB/s up to 25 MB/s
WLAN/BT (optional)
Ethernet PHY Gigabit
Minimum Availability January 2028 January 2026
Raspberry Pi CM4 Raspberry Pi CM3+
Connectivity HDMI 2x HDMI 2.0
(up to 4Kp60)
1x HDMI 1.3a
(up to 1080p60)
USB 1x USB 2.0 Host/OTG
CSI 1x 2-Lane MIPI, 1x 4-Lane MIPI
DSI 1x 2-Lane MIPI, 1x 4-Lane MIPI
PCIe 1x PCIe Gen2 1-Lane (5 Gbps)
LAN 1x Gigabit Ethernet PHY
WLAN 2.4 / 5.0 GHz IEEE 802.11b/g/n/ac
Bluetooth Bluetooth 5.0, BLE
Antenna onboard, external via U.FL
GPIO Pins 28 48
UART up to 6x 2x
I2C up to 6x 2x
SPI up to 5x 2x
Other DPI, PCM, PWM, GPCLK
Power 5V 5V, 3V3, 1V8
Connector 2x 100 Pin DF40 200 Pin SODIMM
Dimensions 55 x 40 mm 67.6 x 31 mm


Shipping weight: 0.02 Kg
