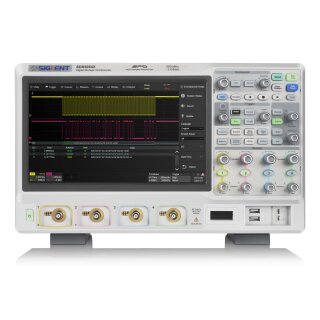

Siglent SDS5034X Oscilloscope
Artno.: SL2-150340
Digital storage oscilloscope (DSO), 4 Channels, Bandwidth 350 MHz, Sample Rate 5 GS/s, Memory Depth 250 MPts, Resolution 8-bit / 11-bit (ERES), Waveform Update Rate 110 000 wfrm/s / 500 000 wfrm/s (Sequence Mode), Display 10.1" Touch Screen, Interface USB Host / USB Device / LAN, Serial Trigger/Decoder I2C / SPI / UART / CAN / LIN, SPO Technology, Web Interface, Touch Screen, 25 MHz Signal Generator (optional), 16-Channel Logic Analyzer (optional)

from 3,414.00 € incl. 19% VAT
2,868.91 € excl. VAT
Orderable

Shipping time: 5 - 7 business days

Your configuration
  • 100+ On stock
    Shipping time: 1 - 3 business days
  • Promotion bundle for SDS5000X series oscilloscopes, consisting of SPL2016 logic probe, SDS5000X-16LA MSO Function Software license, SAG1021I Isolierted Function/Arbitrary Waveform Generator and SDS5000X-FG Function/Arbitrary Waveform Generator license
    Orderable
    Shipping time: 9 - 11 business days
    Promotion bundle for SDS5000X series oscilloscopes, consisting of SPL2016 logic probe, SDS5000X-16LA MSO Function Software license, SAG1021I Isolierted Function/Arbitrary Waveform Generator and SDS5000X-FG Function/Arbitrary Waveform Generator license
3,414.00 € incl. 19% VAT *

Description

SIGLENT's SDS5000X series Digital Storage Oscilloscopes are available in bandwidths of 1 GHz, 500 MHz and 350 MHz, have a maximum sample rate of 5 GSa/s, maximum record length of 250 Mpts/ch, and display up to 4 analog channels + 16 digital channels mixed signal analysis ability.

The SDS5000X series employs Siglent?s SPO technology with a maximum waveform capture rate of up to 110,000 wfm/s (normal mode, up to 500,000 wfm/s in sequence mode), 256-level intensity grading display function plus a color temperature display mode. It also employs an innovative digital trigger system with high sensitivity and low jitter. The trigger system supports multiple powerful triggering modes including serial bus triggering. History waveform recording, Sequence acquisition, Search and Navigate functions allow for extended waveform records to be captured, stored, and analyzed. An impressive array of measurement and math capabilities, options for a 25 MHz arbitrary waveform generator, as well as serial decoding are also features of the SDS5000X.

The large 10.1" capacitive touch screen supports multi-touch gestures, with the addition of user-friendly one-button design for most commonly used functions, can greatly improve the operation efficiency of the SDS5000X. It also supports mouse and external keyboard control.

Model Overview

SDS5034X
SDS5032X
SDS5054X
SDS5052X
SDS5104X
SDS5102X
Channels 4+EXT (SDS5004X)
2+EXT (SDS5002X)
Bandwidth 350 MHz 500 MHz 1 GHz
Sample Rate 5 GSa/s
2.5 GSa/s (non-interleaving mode)
Memory Depth 250 Mpts/ch
125 Mpts/ch (non-interleaving mode)
Waveform Capture Rate 110 000 wfm/s (Normal Mode)
500 000 wfm/s (Sequence Mode)
Vertical Resolution 8-bit
up to 11-bit in ERES Mode
Trigger Types Edge, Slope, Pulse width, Window, Runt, Interval, Dropout, Pattern, Video, Qualified, Nth Edge, Setup/Hold, Delay
SDS5034X
SDS5032X
SDS5054X
SDS5052X
SDS5104X
SDS5102X
Measurement Functions More than 50 parameters, supports statistics with histogram and trend
Math Functions 2 Traces
2 MPts FFT, +, -, ×, ÷, d/dt, ∫dt, √, Average, ERES, Formula Editor
Data Processing Search&Navigate, History, Mask Test, Bode Plot, Power Analysis (optional), Counter
Serial Trigger/Decoder I2C, SPI, UART, CAN, LIN (Standard)
CAN FD, FlexRay, I2S, MIL-STD-1553B (optional)
Logic Analyzer (optional) 16 Channels, 1.25 GSa/s Sample Rate, 62.5 MPts Record Length per Channel
Signal Generator (optional) 1 Channel, 25 MHz Bandwidth, 125 MSa/s Sample Rate, 16 KPts Memory Depth
Interfaces USB Host (3x), USB Device, LAN, VGA Output, External Trigger, Auxiliary Output (TRIG OUT, PASS/FAIL), 10 MHz In/Out
Display 10.1" capacitive touch screen (1024x600 Pixel)
Supplied Probes 4x SP3050A, 500 MHz (SDS5004X)
2x SP3050A, 500 MHz (SDS5002X)

Package Contents

  • Device
  • Power Cord
  • USB Cable
  • Quick Start Guide
  • Probes

Features

10.1? TFT-LCD display with capacitive touch screen
The capacitive touch screen supports multi-touch gestures. Waveforms can be scaled and moved quickly by finger-touch movements which greatly improves the operation efficiency. Resolution is 1024 x 600 pixels.
Up to 500,000 wfm/s Waveform Update Rate
With a waveform update rate of up to 110,000 wfm/s the oscilloscope can easily capture unusual or low-probability events. In Sequence mode the waveform capture rate can reach 500,000 wfm/s.
Record Length of up to 250 Mpts/ch
Using hardware-based zoom technique and record length of up to 250 Mpts users can select a slower timebase without compromising the sample rate, and then quickly zoom in to focus on the area of interest.
Multiple Trigger Functions
Edge, Slope, Pulse width, Window, Runt, Interval, Dropout, Pattern, Video, Qualified, Nth Edge, Setup/Hold, Delay and serial trigger.
Zone Trigger
Zone Trigger is available for advanced triggering.
Measurements of a Variety of Parameters
Parameter measurements includes 3 categories: horizontal, vertical and CH delay providing a total of 39 different types of measurements. Measurements can be performed within a specified gate period. Measurements on Math, Reference and History frames are supported.
Parameter statistics function
Statistics shows the current value, maximum value, minimum value, standard deviation and mean value of up to 5 parameters simultaneously. Histogram is available to show the probability distribution of a parameter.
Hardware accelerated FFT
Hardware accelerated FFT supports up to 2 Mpts operation. This provides high frequency resolution with a fast refresh rate. The FFT function also supports a variety of window functions so that it can adapt to different spectrum measurement needs. Three modes (Normal, Average and Max hold) can satisfy different requirements for observing the power spectrum.
History Mode
History function can record up to 100,000 frames of waveforms. The recording is executed automatically, so that the customer can play back the history waveforms at any time in order to observe unusual events and quickly locate the area of interest using the cursors or measurements.
Sequence Mode
Segmented memory collection will store the waveform into multiple memory segments (up to 100,000) and each segment will store a triggered waveform as well the dead time information. The interval between segments can be as small as 2 µs. All of the segments can be played back using the History function.
Advanced Math Function
In addition to the traditional (+, -, ×, ÷) operations, FFT, integration, differential and square root operations are supported. Math on math is available for more complex operations.
Search&Navigate
The SDS5000X can search events specified by the user in a frame. Events flagged by the Search can be recalled automatically using Navigate. It can also navigate by time (delay position) and history frames.
Hardware-based Average and Eres Acquisition
Average and Eres (Enhanced Resolution) acquisition modes are hardwarebased, allowing the waveforms to be captured at a faster rate.
Hardware-based High Speed Mask Test Function
The SDS5000X utilizes a hardware-based Mask Test function, performing up to 110,000 Pass / Fail decisions each second. It is easy to generate user-defined test templates in order to provide trace mask comparisons, making it suitable for long-term signal monitoring or automated production line testing.
Custom Masks
Built-in Mask Editor application helps to create custom masks.
Serial Bus Decode
Display the decoded characters through the events list. Bus protocol information can be quickly and intuitively displayed in tabular form. I2C, SPI, UART, CAN, LIN, CAN FD, FlexRay, I2S and MIL-STD-1553B are supported.
Waveform Histogram
The Waveform Histogram feature provides a statistics view of the waveform in horizontal and vertical directions.
Digital Voltmeter Function
4-digit voltmeter and 7-digit frequency counter. Any analog channel can be selected as a source. Bar, Histogram and Trend diagrams are supported.
Web control
With the new embedded web server, users can control the oscilloscope from a simple web page. This provides wonderful remote troubleshooting and monitoring capabilities.
Digital Channels / MSO (Optional)
Four analog channels plus 16 digital channels enable users to acquire and trigger on the waveforms then analyze the pattern, simultaneously with one instrument.
25 MHz Function/Arbitrary Waveform Generator (Optional)
The SDS5000X can control the SAG1021I USB Function/Arbitrary waveform generator to output waveform with up to 25 MHz frequency and ±3 V amplitude. Six basic waveforms plus multiple types of arbitrary waveforms are built-in.
Complete Connectivity
USB Host, USB Device (USBTMC), LAN (VXI-11, telnet, socket, web), Pass/Fail, Trigger Out, 10 MHz In/Out and VGA output.
