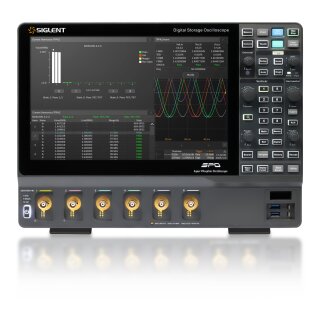

Siglent SDS5106X HD Oscilloscope

Artno.: SL2-551060
Manufacturers: Siglent

Digital storage oscilloscope (DSO), 6 Channels, Bandwidth 1 GHz, Sample Rate 5 GS/s, Memory Depth 2.5 Gpts, Resolution 12-bit / 16-bit (HiRES), Waveform Update Rate 160 000 wfrm/s / 650 000 wfrm/s (Sequence Mode), Display 12.1" Touch Screen, Interface 2x USB 3.0 Host / 1x USB 2.0 Host / USB 2.0 Device / LAN, Serial Trigger/Decoder I2C / SPI / UART / CAN / LIN, SPO-Technologie, Web Interface, Touch Screen

17.112,00 €

incl. 19% VAT

(14.379,83 € excl. VAT)

Out of stock
Delivery time: 5 - 7 business days (DE - int. shipments may differ)

Description
Product Reviews

SIGLENT's SDS5000X HD series high-resolution digital storage oscilloscopes are available with 4, 6, or 8 analog channels, and bandwidth options of 350 MHz, 500 MHz, and 1 GHz. Both series feature 12-bit ADCs, a sampling rate of up to 5 GSa/s, and a maximum record length of 2.5 Gpts per channel.

These oscilloscopes utilize SIGLENT's SPO (Super Phosphor Oscilloscope) technology, offering a maximum waveform capture rate of up to 160,000 wfm/s. Additional display features include 256-level intensity grading and color temperature mode. They are equipped with an advanced digital trigger system, providing high sensitivity and low jitter, and support a wide range of triggering modes, including serial bus triggering.

To enhance analysis capabilities, tools such as History waveform recording, Search and Navigate, Mask Test, Bode Plot, and Power Analysis are included, allowing for comprehensive data capture and evaluation. A broad set of measurement and math functions, as well as serial decoding, further extends the instruments' utility.

The SDS5000X HD is equipped with a 12.1" capacitive touchscreen that supports multi-touch gestures. Combined with an intuitive user interface, this model is designed to significantly enhance operational efficiency.

The series supports remote web-based control over LAN. A comprehensive SCPI command set is available via the standard 1000M LAN interface, enabling high-speed data acquisition for automated testing applications.

8/6/4 analog channels for SDS5000X HD
Up to 1 GHz bandwidth with up to 5 GSa/s sample rate
12-bit ADC
Low noise floor: 140 μVrms @ 1 GHz bandwidth (typical)
SPO technology
- Waveform capture rates up to 160,000 wfm/s in normal mode and 650,000 wfm/s in sequence mode
- Supports 256-level intensity grading and color temperature display modes
Up to 2.5 Gpts/ch waveform length
Digital trigger system
Intelligent trigger types: Edge, Slope, Pulse, Window, Runt, Interval, Dropout, Pattern, Qualified, Nth edge, Setup/hold, Delay, and Video (HDTV supported)
Zone Trigger simplifies advanced triggering
Serial bus triggering and decoder with support for I2C, SPI, UART, CAN, LIN, CAN FD, FlexRay, I2S, MIL-STD-1553B, SENT, Manchester, ARINC429
Segmented acquisition (Sequence) mode with up to 170,000 segments and minimal dead time
History waveform record (up to 170,000 frames)
Automatic measurements on 60+ parameters with support for:
- Histogram
- Track
- Trend
- Gating measurement
- Measurements on Math, History, and Memory traces
8 Math traces (8 Mpts FFT, Filter, addition, subtraction, multiplication, division, integration, differential, square root, etc.), with formula editor
Advanced data analysis functions:
- Search
- Navigate
- Digital Voltmeter
- Counter
- Waveform Histogram
- Bode plot
- Power Analysis
- Double Pulse Test
High-speed hardware-based Average and Hi-Res
Hardware-based Mask Test with Mask Editor tool
16 digital channels (only for SDS5000X HD)
External 50 MHz waveform generator supported
Large 12.1” TFT-LCD display with 1280 x 800 resolution; capacitive touch screen with multi-touch support
Interfaces include:
- 2x USB Host 3.0
- USB 2.0 Host
- USB 3.0 Device (USBTMC)
- 1000M LAN
- HDMI
- External Trigger In
- Aux Out (Pass/Fail, Trigger Out)
- 10 MHz In
- 10 MHz Out
Built-in web server for remote control via LAN using a web browser
Supports SCPI remote control commands
Supports external mouse and keyboard

Model Overview

	1 GHz	500 MHz	350 MHz
8	SDS5108X HD	SDS5058X HD	SDS5038X HD
6	SDS5106X HD	SDS5056X HD	SDS5036X HD
4	SDS5104X HD	SDS5054X HD	SDS5034X HD

	SDS5108X HD SDS5058X HD SDS5038X HD	SDS5106X HD SDS5056X HD SDS5036X HD	SDS5104X HD SDS5054X HD SDS5034X HD
Channels	8/6/4 + EXT
Bandwidth	1 GHz	500 MHz	350 MHz
Sample Rate	5 GSa/s (quarter channel/half channel mode) 2.5 GSa/s (full channel mode)
Vertical Resolution	12-bit up to 16-bit in ERES Mode
Memory Depth	2.5 Gpts/ch (quarter channel mode) 1 Gpts/ch (half channel mode) 500 Mpts/ch (full channel mode)
Waveform Capture Rate	Normal mode: Up to 160,000 wfm/s; Sequence mode: Up to 650,000 wfm/s
Trigger type	Edge, Slope, Pulse width, Window, Runt, Interval, Dropout, Pattern, Video, Qualified, Nth edge, Setup/hold, Delay, Serial
Serial Trigger/Decoder	Standard: I2C, SPI, UART, CAN, LIN Optional: CAN FD, FlexRay, I2 S, MIL-STD-1553B, SENT, Manchester (decode only), ARINC429
Measurement	60+ parameters. Statistics, histogram, trend, and track supported
Math	8 traces 8 Mpts FFT, +, -, x, /, &intdt, d/dt, √, Identity, Negation, Absolute, Sign, e^x, 10^x, ln, lg, Interpolation, MaxHold, MinHold, ERES, Average, Filter. Supports formula editor
Data analysis	>Search, Navigate, History, Mask Test, Digital Voltmeter, Counter, Waveform Histogram, Bode plot Power Analysis, Double Pulse Test
Waveform generator (optional)	SAG1021I USB isolated waveform generator module, frequency up to 50 MHz, 125 MSa/s sample rate, 16 kpts waveform memory
Probe(Standard)	500 MHz, 1 probe supplied for each channel
Display	12.1ä TFT-LCD with capacitive touch screen (1280x800)
Digital channel	16-channel; maximum sample rate up to 1.25 GSa/s; record length up to 250 Mpts
I/O	I/O: 2x USB 3.0 Host, USB 2.0 Host, USB 3.0, Device (USBTMC), 1000M LAN (VXI-11+SCPI, Telnet (5024)+SCPI, Socket (5025)+SCPI, LXI, WebServer), Display: HDMI, Others: External Trigger In, Aux Out (TRIG OUT, PASS/FAIL), 10 MHz In, 10 MHz Out

Extended Specifications

Package Contents

Device
Power Cord
USB Cable
Quick Start Guide
Passive probe 1/channel, 500 MHz
Wireless mouse
