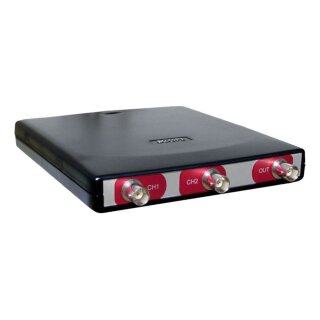

TiePie Handyscope HS3-100 USB Oscilloscope
Artno.: 103523-100
Digital 16-bit USB 2.0 PC oscilloscope, 2 channels, bandwidth up to 100 MHz, sample rate up to 100 MS/s, memory depth 128 KPts, with signal generator
Model
1,366.00 € incl. 19% VAT
1,147.90 € excl. VAT
Orderable

Shipping time: 15 - 17 business days

Description

The Handyscope HS3 is a powerful 100 MS/s USB oscilloscope that can also be used as a multimeter, spectrum analyzer, data logger or protocol analyzer. This USB oscilloscope also contains a function / arbitrary waveform generator that is able to produce every signal that is needed. Together with the 2 measurement channels this oscilloscope is an excellent measurement tool to troubleshoot circuits.

Continuous streaming

Besides measuring in block mode, the Handyscope HS3 is also capable of performing continuous streaming measurements. This will create a continuous uninterrupted data stream to the computer. The data can then be displayed on the screen and/or saved to disk.

Arbitrary Waveform Generator

The integrated Arbitrary Waveform Generator operates fully independent from the measuring system of the Handyscope HS3. It has a 50 MS/s sampling clock, a 256K samples deep waveform memory, a 14 bit output resolution and a ± 12 V output range. The arbitrary function generator allows you to generate test signals for your measurements in any shape you like. Several standard signal shapes are available and it is possible to regenerate previously measured signals.

Combining multiple Handyscope HS3s

When one Handyscope HS3 does not offer enough input channels, the Handyscope HS3 can be coupled to one or more other instruments. This allows to make a combined instrument which will enable simultaneous measuring on all channels of all combined instruments.


Shipping weight: 1.00 Kg
