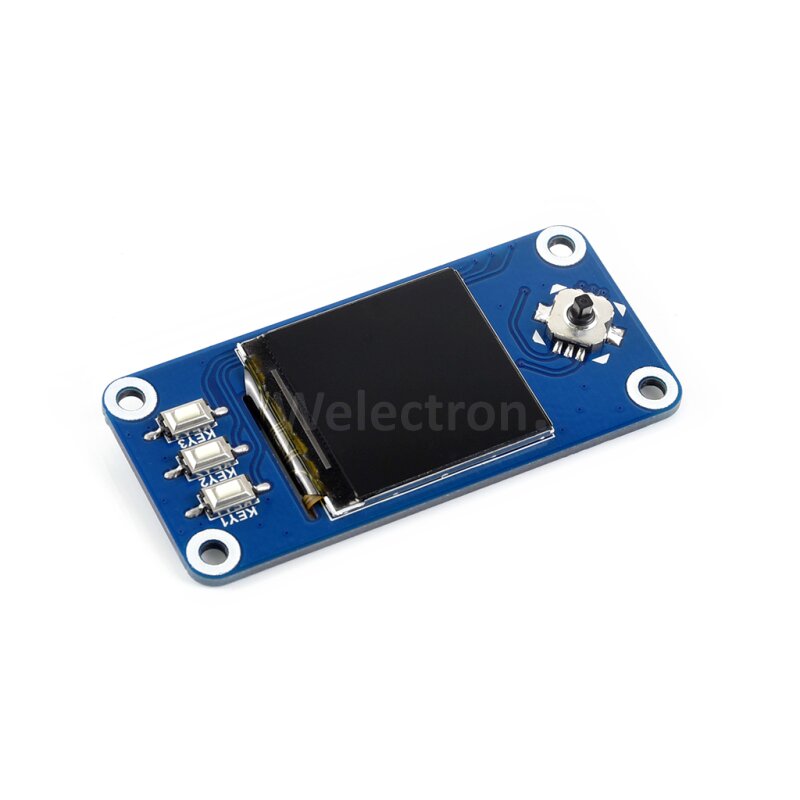

Waveshare 14972 1.3inch LCD HAT
Artno.: WS3-014972
1.3inch IPS LCD display HAT for Raspberry Pi, 240x240 pixels, SPI interface

11.90 € incl. 19% VAT
10.00 € excl. VAT
10+ On stock

Shipping time: 1 - 3 business days


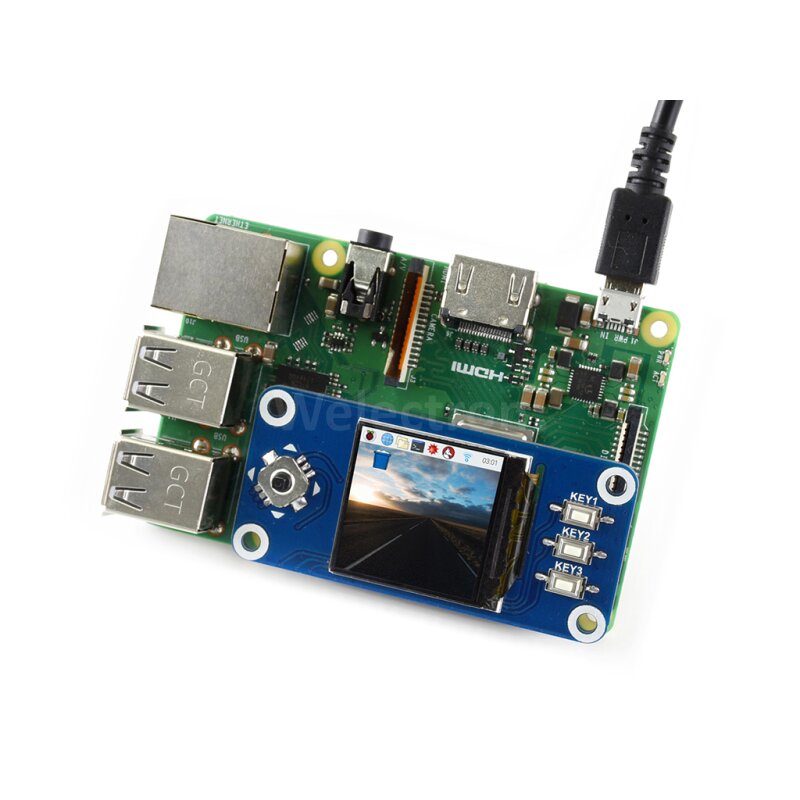

This is an IPS LCD display HAT for Raspberry Pi, 1.3inch diagonal, 240x240 pixels, with embedded controller, communicating via SPI interface.

Trying to add a control interface for your Pi? This compact display would be the ideal choice.


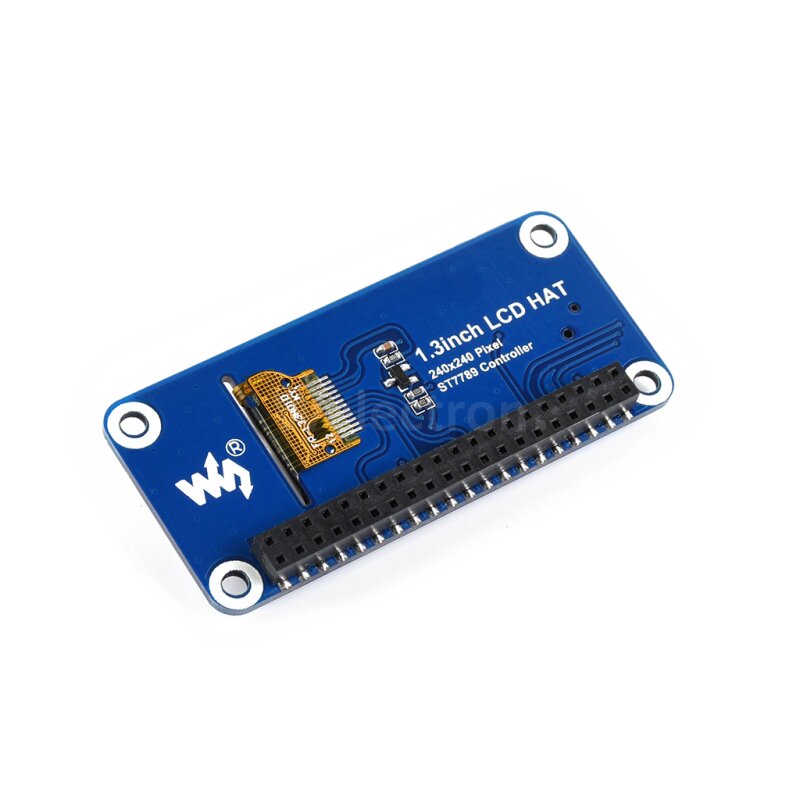

  • Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards
  • IPS screen, wide viewing angle, better display
  • High definition in small size

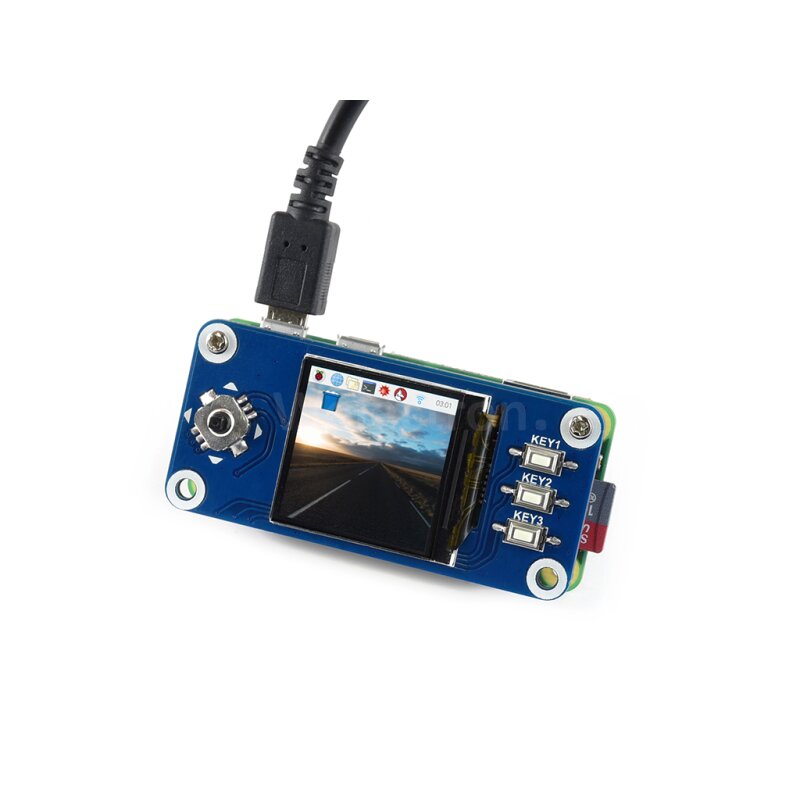

  • 1x joystick, 3x pushbuttons, handy and useful
  • Comes with development resources and manual (examples for Raspberry Pi)


  • Driver: ST7789
  • Interface: SPI
  • Display color: RGB, 65K color
  • Resolution: 240x240
  • Backlight: LED
  • Operating voltage: 3.3V


KEY1 P21 Button 1/GPIO
KEY2 P20 Button 2/GPIO
KEY3 P16 Button 3/GPIO
Joystick Up P6 Joystick Up
Joystick Down P19 Joystick Down
Joystick Left P5 Joystick Left
Joystick Right P26 Joystick Right
Joystick Press P13 Joystick Press
SCLK P11/SCLK SPI clock input
MOSI P10/MOSI SPI data input
DC P25 Data/Command selection (high for data, low for command)
CS P8/CE0 Chip selection, low active
RST P27 Reset, low active
BL P24 Backlight

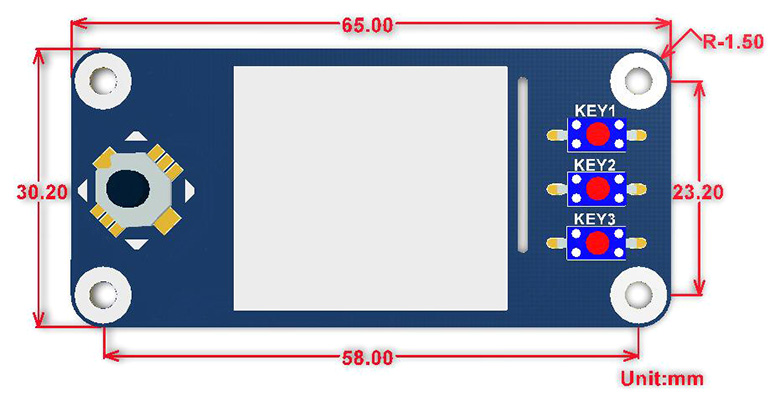

1.3inch LCD HAT dimensions

Development Resources

Wiki : www.waveshare.com/wiki/1.3inch_LCD_HAT

Package Contents

  1. 1.3inch LCD HAT x1

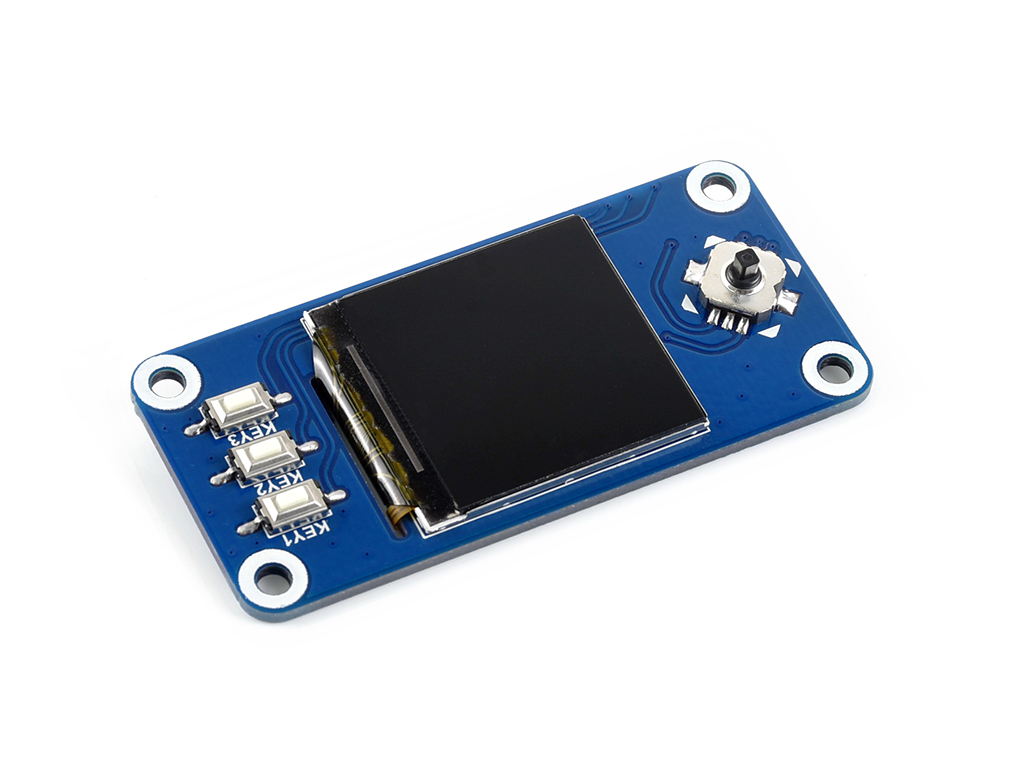

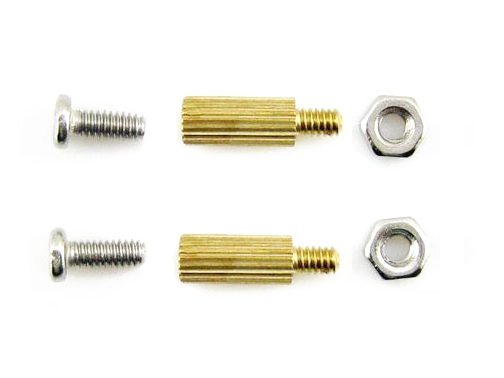

  2. RPi screws pack (2pcs) x1

Shipping weight: 0.02 Kg
