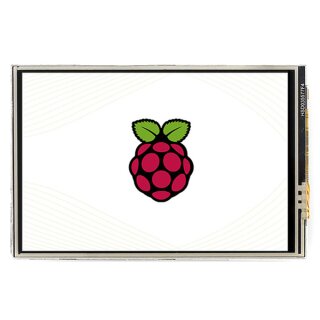

Waveshare 15811 3.5inch RPi LCD (C)

Artno.: WS3-015811
3.5inch Resistive Touch Display (C) for Raspberry Pi, 480×320, 125MHz High-Speed SPI
22.90 € incl. 19% VAT
19.24 € excl. VAT

plus shipping

10+ On stock

Shipping time: 1 - 3 business days

Description

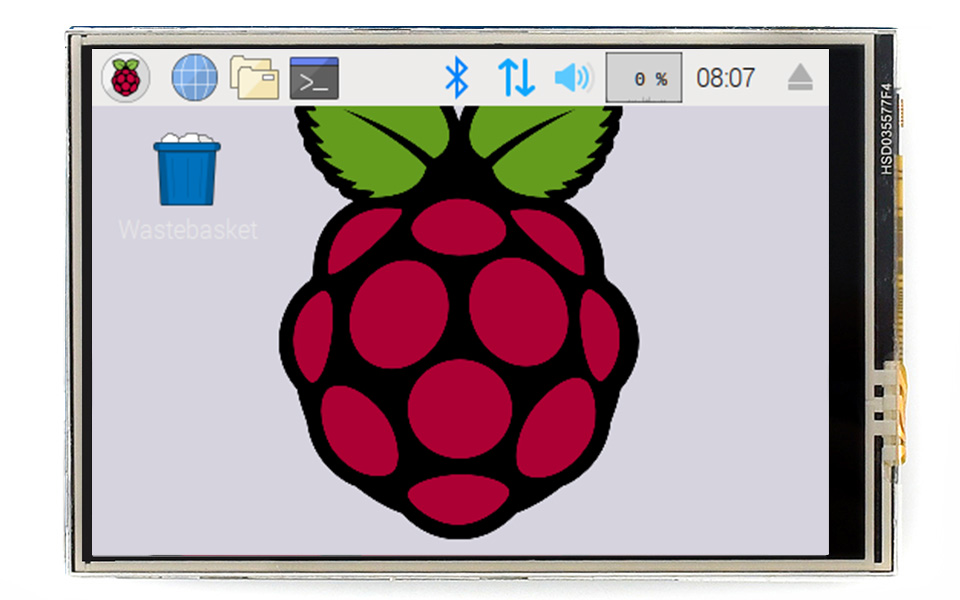

3.5" Touch Display for Raspberry Pi

  • Size3.5"
  • Resolution480×320
  • Display Port125MHz SPI
  • Touch TypeResistive
  • Touch PortSPI
  • ConsumptionLower Power

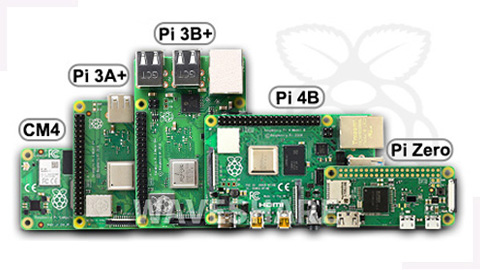

Device & System Support

Raspberry Pi
Supports Raspbian / Ubuntu MATE* / Kali / Retropie, driver provided Supports FBCP software driver, allows setting software resolution and dual-display

Supports all versions of Raspberry Pi

* Ubuntu MATE on Pi 4B is not available now, until the official image is released

Connection Examples

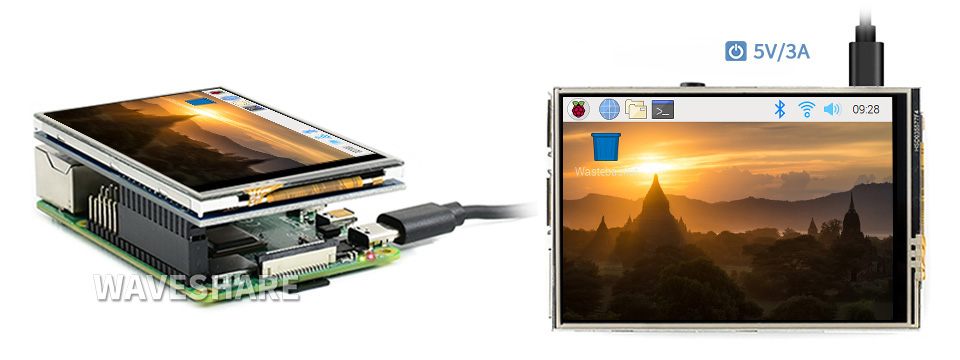

Working with Raspberry Pi 4

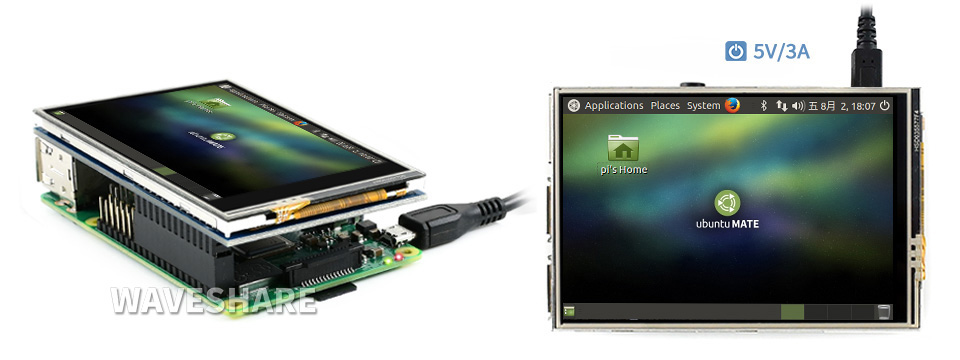

Working with Raspberry Pi 3B+

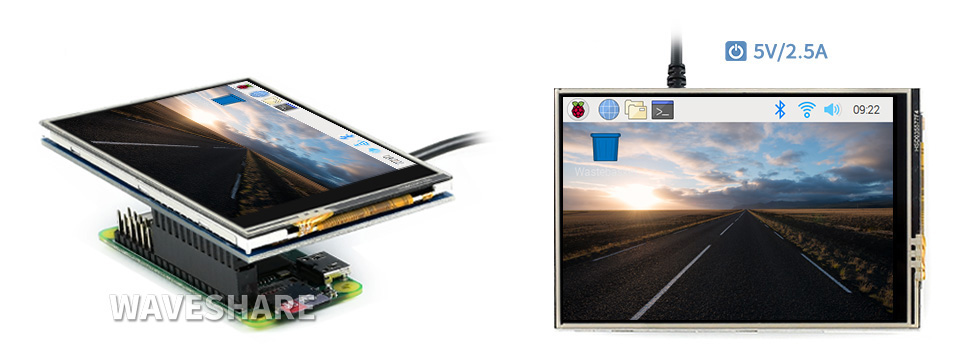

Working with Raspberry Pi Zero W

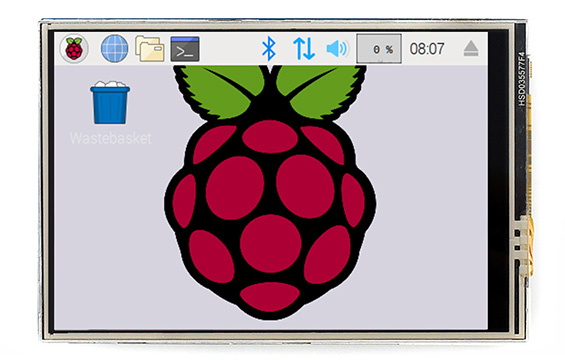

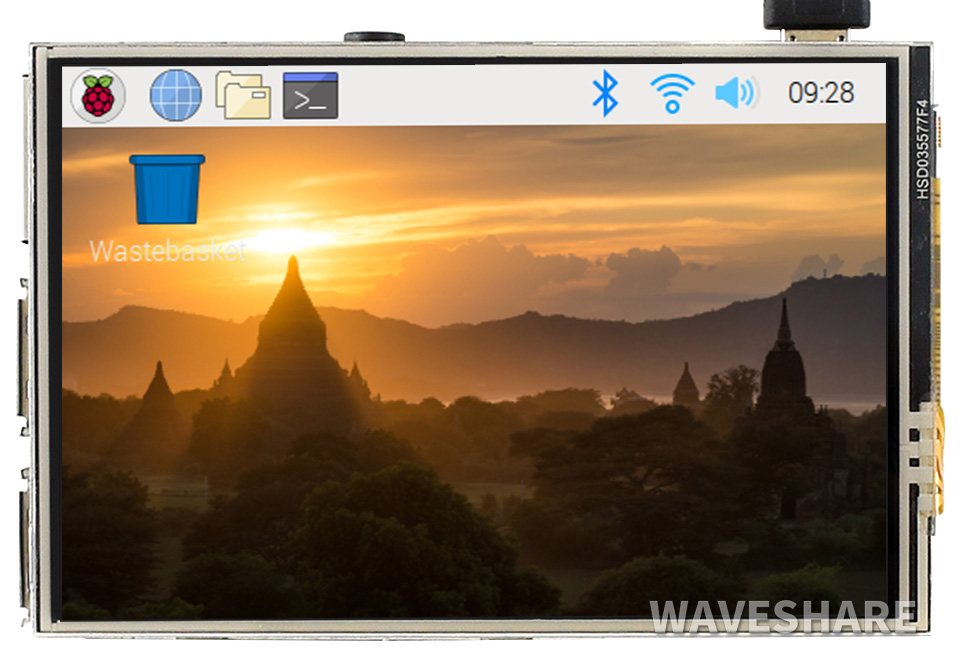

Display

FBCP software driver support allows setting software resolution and dual-display (about 50Hz refresh rate)

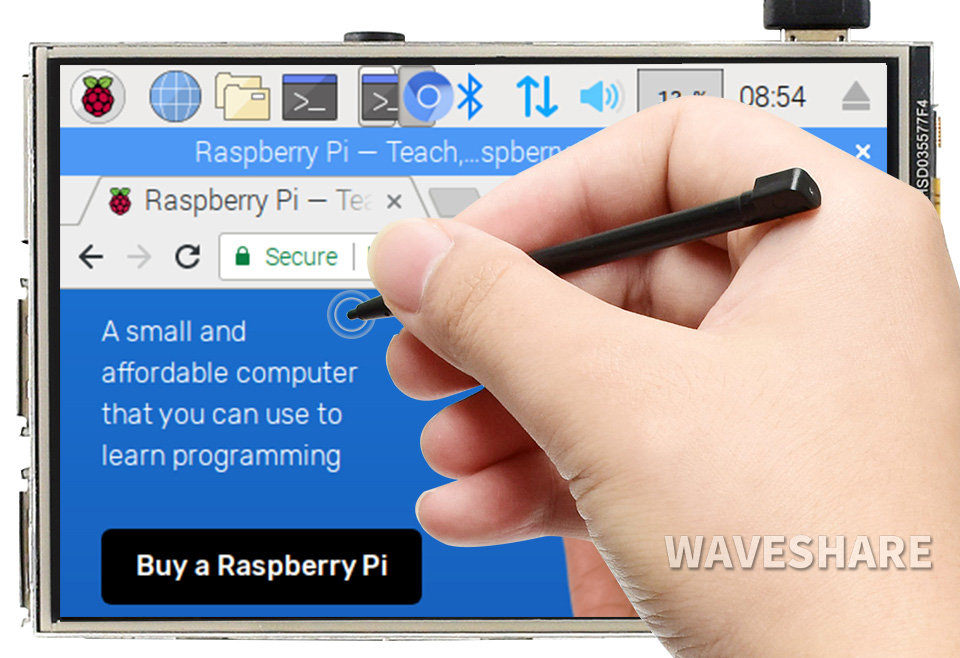

Touch Control

Comes with stylus

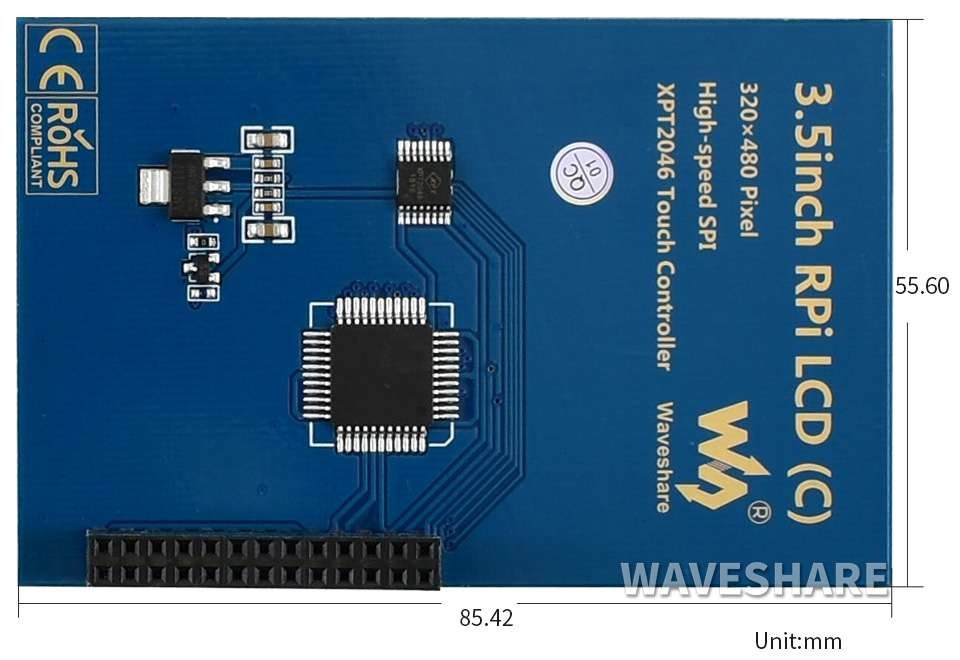

Appearance and Dimensions

Resources & Services

Wiki: www.waveshare.com/wiki/3.5inch_RPi_LCD_(C)

Over a decade: Waveshare grows with display

* Waveshare has been focusing on display design for over 10 years.

Selection Guide

PartNumber Display Touch Audio Device Support
Resolu-tion Display Port Display Panel View Angle Touch Type Touch Port Toughened Glass Panel Fully Laminated Spe-aker Signal Output Pi JETSON NANO PC
SPI DISPLAYS PROS: low price. CONS: low refresh rate & resolution, supports Raspberry Pi only, requires Raspberry Pi 40PIN GPIO (the SPI bus), poor compatibility with Raspberry Pi system.
3.2inch RPi LCD (C) 320×240 High-Speed SPI TFT – Resistive SPI × × × × √ × ×
3.5inch RPi LCD (B) 480×320 SPI IPS 160° Resistive SPI × × × × √ × ×
3.5inch RPi LCD (C) 480×320 High-Speed SPI TFT – Resistive SPI × × × × √ × ×
4inch RPi LCD (C) 480×320 High-Speed SPI TFT – Resistive SPI × × × × √ × ×
DPI DISPLAYS PROS: low price, high refresh rate, multiple resolution support, better compatibility with Raspberry Pi system. CONS: supports Raspberry Pi only, requires Raspberry Pi 40PIN GPIO.
2.8inch DPI LCD 480×640 DPI IPS 160° Capacitive I2C √ √ × × √ × ×
3.5inch DPI LCD 640×480 DPI IPS 170° Capacitive I2C √ × × × √ × ×
4inch DPI LCD (B) 480×800 DPI IPS 170° Capacitive I2C √ × √ √ √ × ×
4inch DPI LCD (C) 720×720 DPI IPS 170° Capacitive I2C √ √ × × √ × ×
5inch DPI LCD 800×480 DPI IPS 160° × × × × × × √ × ×
7inch DPI LCD 1024×600 DPI IPS 170° × × × × × × √ × ×
DSI DISPLAYS PROS: moderate price, high refresh rate, leaves the Raspberry Pi 40PIN GPIO free, better compatibility with Raspberry Pi system. CONS: only 800×480 resolution is available currently, supports Raspberry Pi only.
4.3inch DSI LCD 800×480 DSI IPS 160° Capacitive I2C √ × × × √ × ×
4.3inch DSI LCD (with case) 800×480 DSI IPS 160° Capacitive I2C √ × × × √ × ×
5inch DSI LCD 800×480 DSI TFT - Capacitive I2C √ × × × √ × ×
7inch DSI LCD 800×480 DSI TFT - Capacitive I2C √ × × × √ × ×
7inch DSI LCD (with case A) 800×480 DSI TFT - Capacitive I2C √ × × × √ × ×
HDMI / TYPE-C DISPLAYS PROS: high refresh rate, multiple resolution support, multiple devices support, leaves the Raspberry Pi 40PIN GPIO free, better compatibility with Raspberry Pi system. CONS: somewhat costly.
3.5inch HDMI LCD 480×320 HDMI IPS 160° Resistive SPI × × × √ √ × Display ONLY
4inch HDMI LCD 480×800 HDMI IPS 170° Resistive SPI × × × × √ × Display ONLY
4inch HDMI LCD (H) 480×800 HDMI IPS 170° Resistive SPI × × × √ √ × Display ONLY
4.3inch HDMI LCD (B) 800×480 HDMI IPS 160° Capacitive USB × × × √ √ √ √
5inch HDMI LCD 800×480 HDMI TFT – Resistive SPI × × × × √ × ×
5inch HDMI LCD (with case) 800×480 HDMI TFT – Resistive SPI × × × × √ × ×
5inch HDMI LCD (B) 800×480 HDMI TFT – Resistive USB × × × × √ × √
5inch HDMI LCD (B) (with case) 800×480 HDMI TFT – Resistive USB × × × × √ × √
5inch HDMI LCD (G) 800×480 HDMI/VGA TFT – Resistive USB × × × √ √ × √
5inch HDMI LCD (H) 800×480 HDMI/VGA TFT – Capacitive USB √ × × √ √ √ √
5inch HDMI LCD (H) V4 800×480 HDMI TFT – Capacitive USB √ × × × √ × √
5inch HDMI AMOLED 960×544 HDMI AMOLED 170° Capacitive USB √ × × √ √ √ √
5.5inch HDMI AMOLED 1080×1920 HDMI AMOLED 170° Capacitive USB √ × × √ √ √ √
5.5inch HDMI AMOLED (with case A) 1080×1920 HDMI AMOLED 170° Capacitive USB √ × × √ √ × ×
5.5inch HDMI AMOLED (with case B) 1080×1920 HDMI AMOLED 170° Capacitive USB √ × × √ √ √ √
7inch HDMI LCD 1024×600 HDMI IPS 170° Resistive SPI × × × × √ × Display ONLY
7inch HDMI LCD (B) 800×480 HDMI TFT – Capacitive USB × × × × √ × √
7inch HDMI LCD (B) (with case) 800×480 HDMI TFT – Capacitive USB × × × × √ × √
7inch HDMI LCD (C) 1024×600 HDMI IPS 170° Capacitive USB × × × × √ × √
7inch HDMI LCD (C) (with case) 1024×600 HDMI IPS 170° Capacitive USB × × × × √ × √
7inch HDMI LCD (H) 1024×600 HDMI/VGA IPS 170° Capacitive USB × × × √ √ √ √
7inch HDMI LCD (H) (with case) 1024×600 HDMI/VGA IPS 170° Capacitive USB √ × × √ √ √ √
7inch FHD Monitor 1080×1920 HDMI IPS 170° Capacitive USB √ √ √ √ √ √ √
7HP-CAPQLED 1024×600 HDMI IPS (QLED) 170° Capacitive USB √ × × √ √ √ √
9HP-CAPQLED 1280×720 HDMI IPS (QLED) 170° Capacitive USB √ × × √ √ √ √
10.1HP-CAPQLED 1280×720 HDMI IPS (QLED) 170° Capacitive USB √ × × √ √ √ √
7.9inch HDMI LCD 400×1280 HDMI IPS 170° Capacitive USB √ × × √ √ √ √
9inch 2560x1600 Monitor 2560×1600 HDMI IPS 178° Capacitive USB √ √ √ √ √ √ √
10.1inch HDMI LCD 1024×600 HDMI IPS 170° Resistive SPI × × × × √ × Display ONLY
10.1inch HDMI LCD (H) (with case) 1024×600 HDMI/VGA TFT – Capacitive USB × × × × √ √ √
10.1inch HDMI LCD (E) 1024×600 HDMI IPS 170° Capacitive USB √ √ × √ √ √ √
10.1inch HDMI LCD (B) (with case) 1280×800 HDMI IPS 170° Capacitive USB √ × × × √ × √
11.6inch HDMI LCD (H) 1920×1080 HDMI IPS 178° Capacitive USB √ √ × √ √ √ √
11.6inch HDMI LCD (H) (with case) 1920×1080 HDMI/VGA IPS 178° Capacitive USB √ √ √ √ √ √ √
11.9inch HDMI LCD 320×1480 HDMI IPS 170° Capacitive USB √ × × √ √ √ √
12.5inch FHD Monitor 1920×1080 HDMI/Type-C IPS 178° Capacitive Type-C / USB √ × √ √ √ √ √
13.3inch HDMI LCD (H) 1920×1080 HDMI IPS 178° Capacitive USB √ × × √ √ √ √
13.3inch HDMI LCD (H) (with case) 1920×1080 HDMI/VGA IPS 178° Capacitive USB √ × √ √ √ √ √
13.3inch HDMI LCD (H) (with case) V2 1920×1080 HDMI/VGA IPS 178° Capacitive USB √ × √ √ √ √ √
15.6inch HDMI LCD 1920×1080 HDMI IPS 178° Capacitive USB √ × × √ √ √ √
15.6inch HDMI LCD (H) (with case) 1920×1080 HDMI/VGA IPS 178° Capacitive USB √ × √ √ √ √ √
15.6inch FHD Monitor 1920×1080 HDMI/Type-C IPS 178° Capacitive Type-C / USB √ × √ √ √ √ √

Have a look : RPi LCD Comparing

Package Contents

  1. 3.5inch RPi LCD (C) x1
  2. Touch pen x1
  3. RPi screws pack (2pcs) x1
  4. Quick start sheet x1
1
2
3
4
Shipping weight: 0.04 Kg
