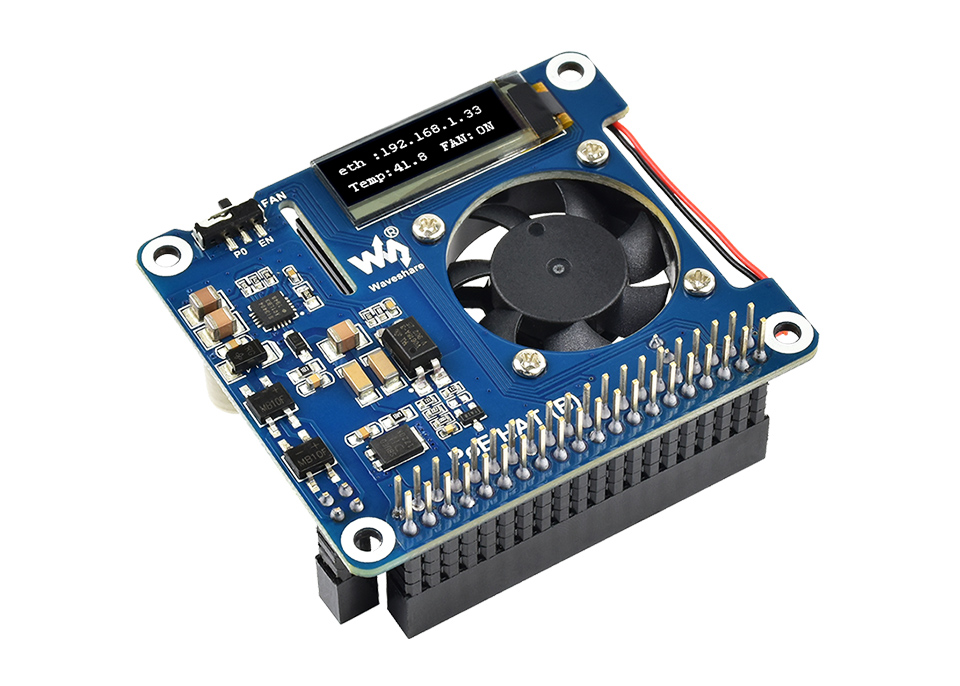

Waveshare 18014 PoE HAT (B)
Artno.: WS1-018014
Power Over Ethernet HAT (Type B) For Raspberry Pi 3B+/4B, 802.3af Power-Sourcing Equipment Required

20.90 € incl. 19% VAT
17.56 € excl. VAT
On stock

Shipping time: 1 - 3 business days

Description

POE HAT for Raspberry Pi

Power Over Ethernet HAT for Raspberry Pi 3B+/4B, 802.3af-compliant(any backward-compatible future versions will be supported as well)

OLED for real-time monitoring temperature, IP, and fan status
The PoE HAT (B) is a 802.3af-compliant Power Over Ethernet accessory for the Raspberry Pi 3B+/4B . By using this small HAT and some proper 802.3af-compliant power sourcing equipments, it is possible to provide both network connection and power supply for your Raspberry Pi in only one Ethernet cable.

Features at a glance

  • Standard Raspberry Pi 40PIN GPIO header, supports Raspberry Pi 3B+/4B
  • PoE (Power Over Ethernet) capability,802.3af-compliant
  • Fully isolated switched-mode power supply (SMPS)
  • 0.91" OLED, for monitoring processor temperature, IP address, and fan status in real-time

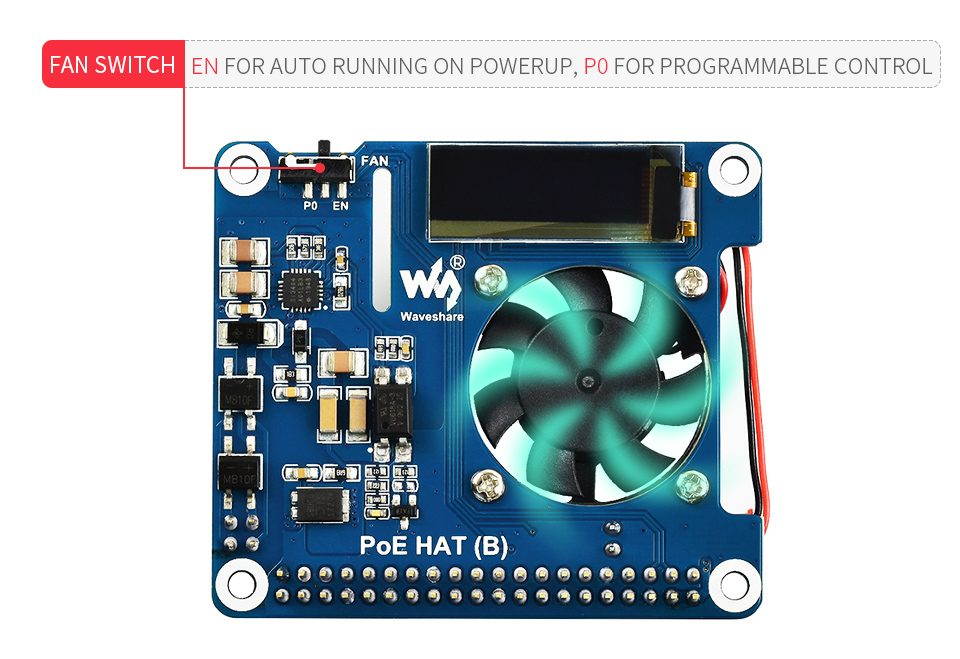

  • Onboard cooling fan, allows auto running on powerup OR programmable control, configured by switch
  • Integrates PCF8574 IO expander for I2C bus, providing pin P0 for directly fan control, and more spare IO pins

Specifications

PoE power input 37V ~ 57V DC in OLED size 0.91"
PoE power output 5V 2.5A DC out OLED pixels 128×32
Network standard 802.3af PoE OLED driver SSD1306
Dimensions 56.5 × 65mm OLED display color white

For use with Raspberry Pi 3B+/4B

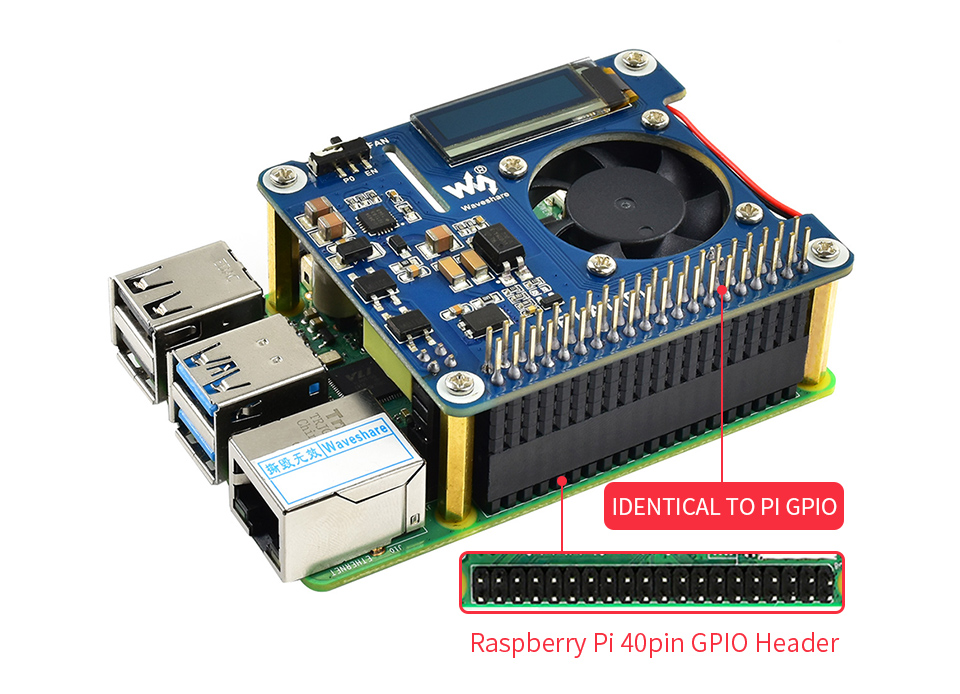

Standard Raspberry Pi 40PIN GPIO stackable header, allows connecting other HATs

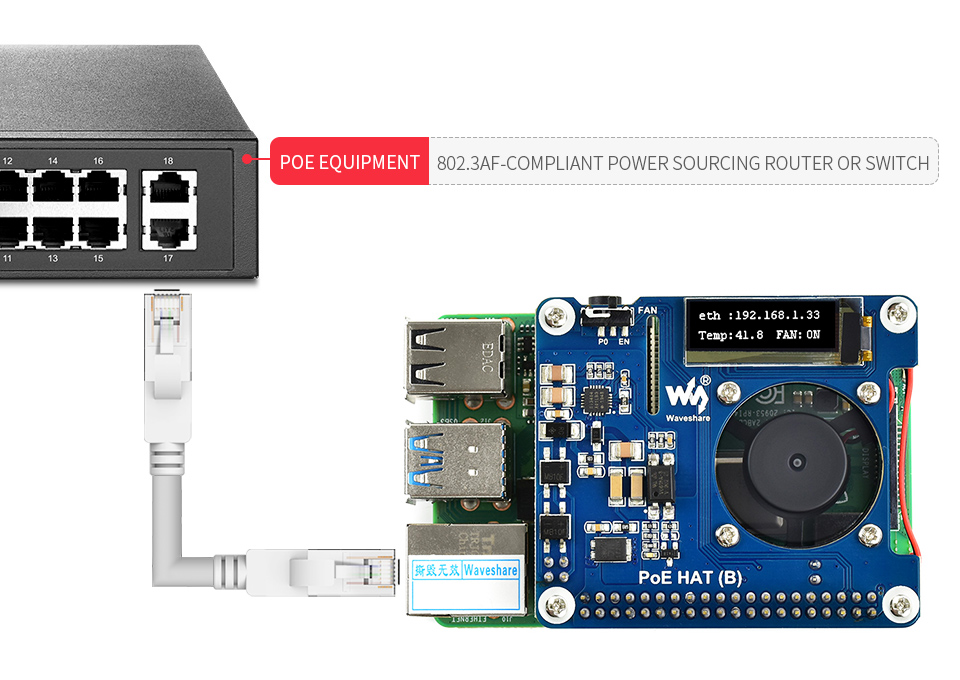

Power Over Ethernet

providing both network connection and power supply for your Raspberry Pi in one cable

* proper 802.3af-compliant power sourcing equipment is required

0.91" OLED display

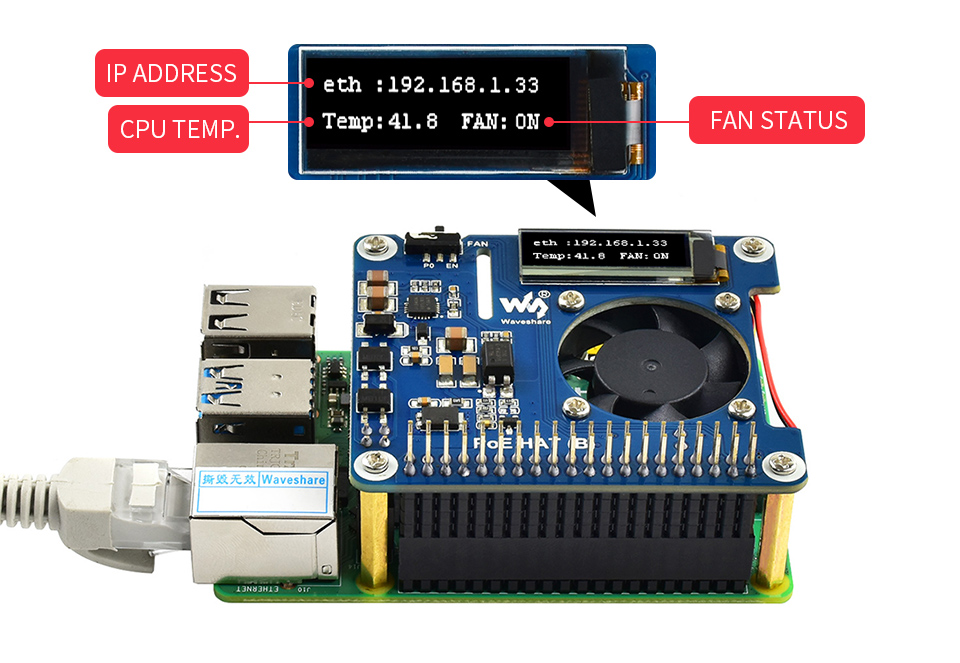

128 × 32 pixels, I2C-bus controlledmonitoring processor temperature, IP address, fan status in real-time

Cooling fan

allows auto running on powerup OR programmable control, configured by switchautomatically turn on/off depending on the Raspberry Pi processor temperature

Onboard PCF8574 chip

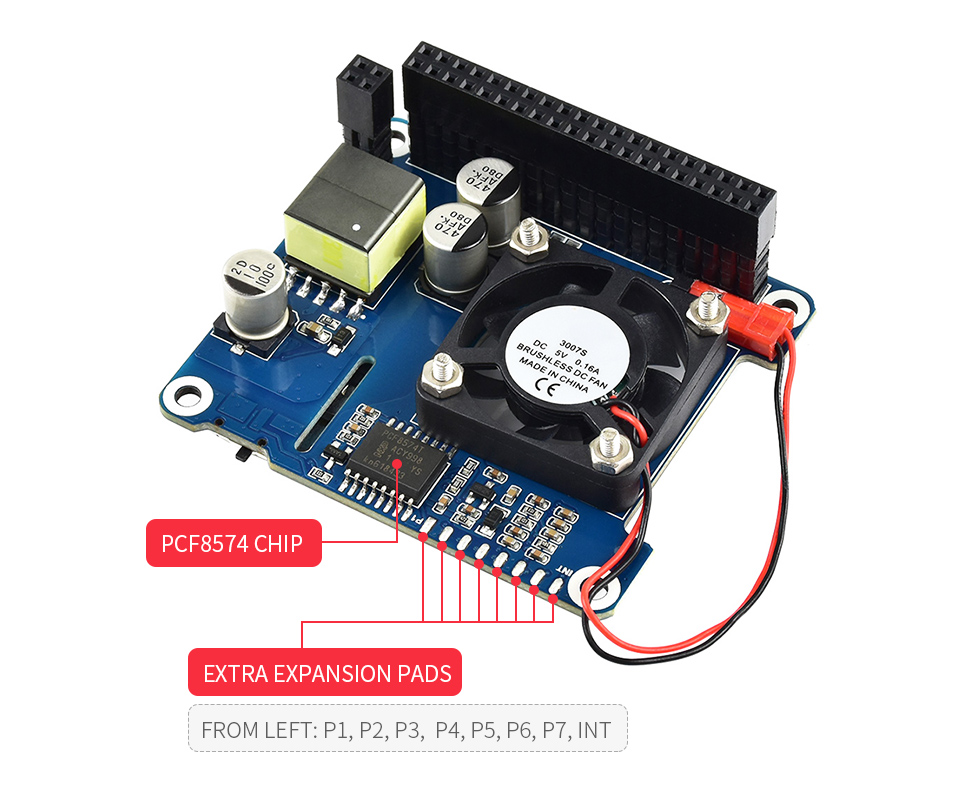

PCF8574 IO expander for I2C bus, providing 8 IO pins, of which P0 for fan controland extra spare pins on solder pads (P1-P7, INT)

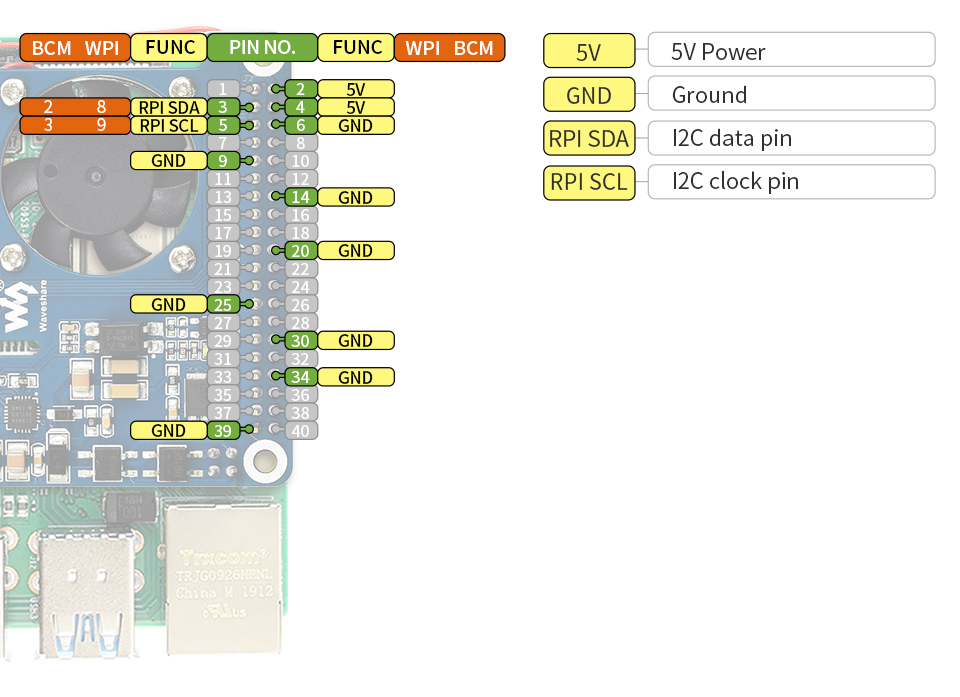

Pinout definition

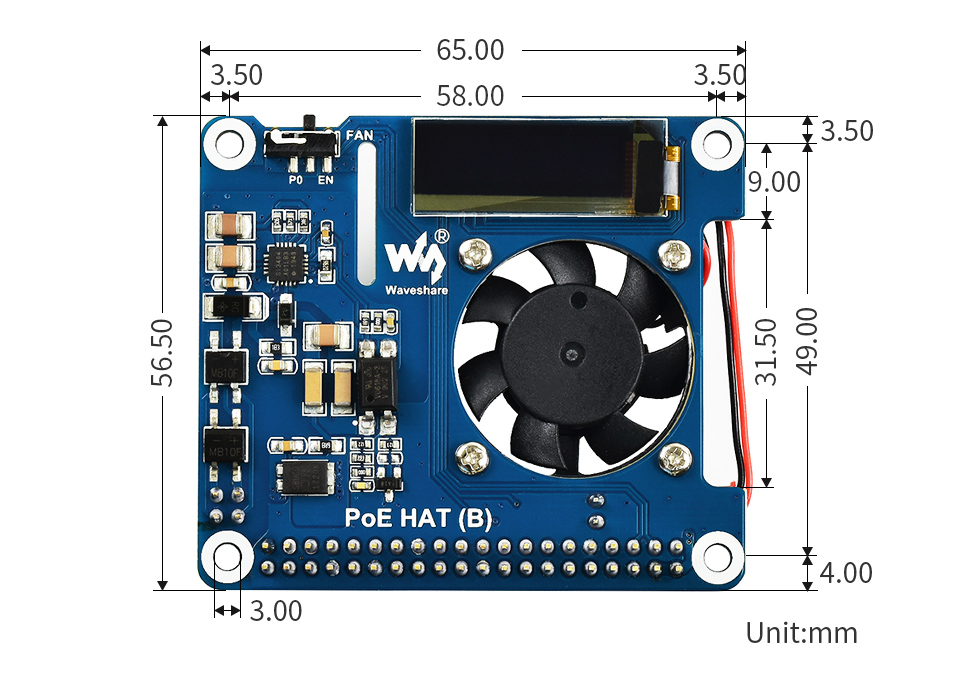

Outline dimensions

Resources & Services

* Resources for different product may vary, please check the wiki page to confirm the actually provided resources.

Selection guide

Product Supported Pi PoE standard PoE power output Feature
Raspberry Pi PoE HAT 3B+/4B 802.3af 5V 2.5A Raspberry Pi official
Raspberry Pi PoE+ HAT 802.3af/at 5V 4A Raspberry Pi official (second generation)
PoE HAT (B) 802.3af 5V 2.5A with OLED display, cost effective
PoE HAT (C) 802.3af/at 5V 4A / 12V 2A high power, cost effective
PoE HAT (D) 802.3af 5V 2.5A tailored for Raspberry Pi official case, cost effective

Package Contents

  1. PoE HAT (B) x1

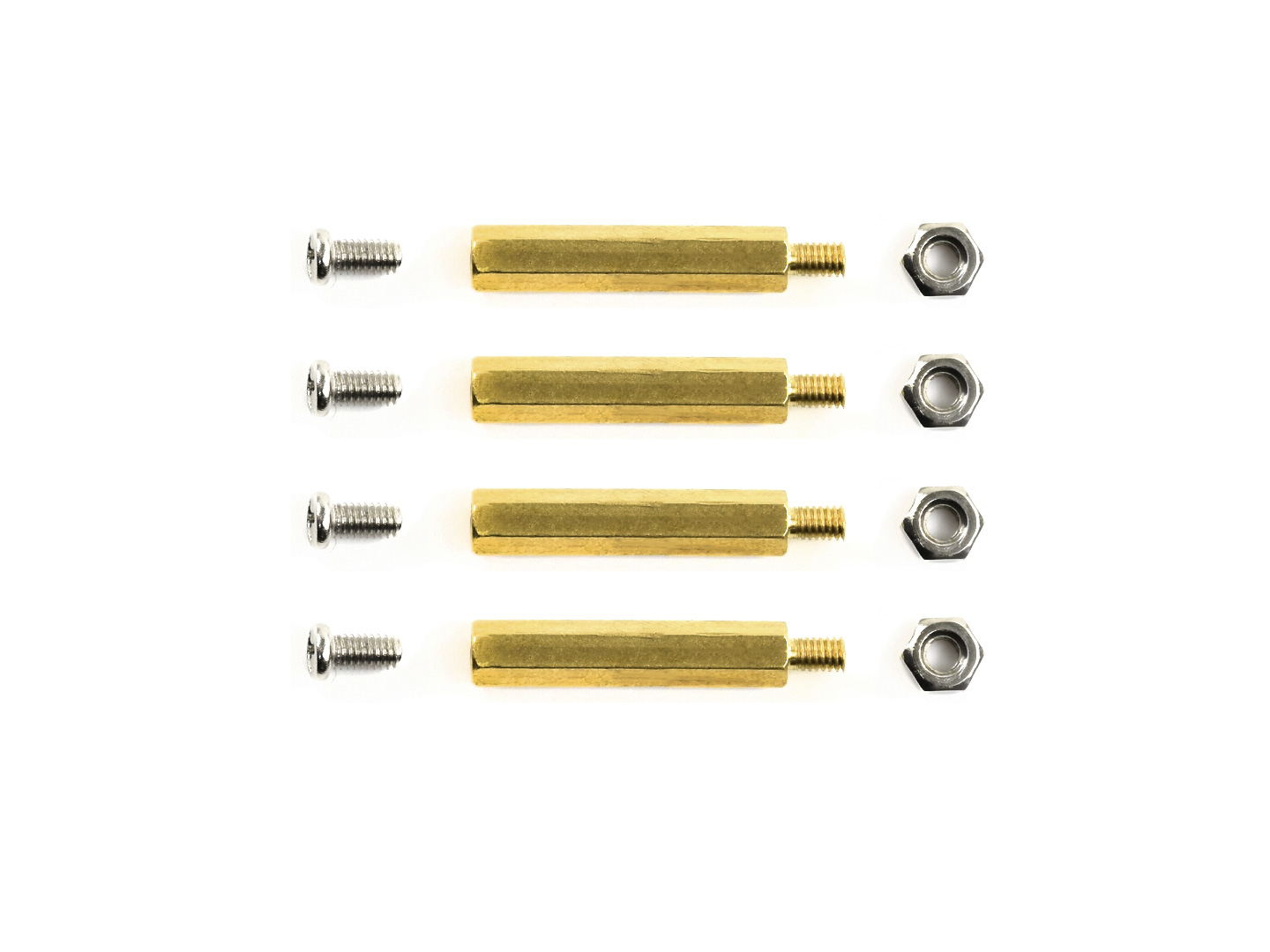

  2. Standoffs pack x1
1
2

Shipping weight: 0.08 Kg

Review this product

Average product review

Write your first review and help others with their purchase decision:
