Prusa XL Enclosure

Artno.: PS8-447850
Manufacturers: Prusa Research

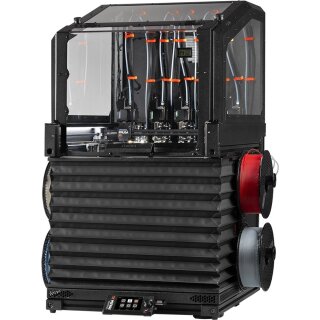

The Original Prusa XL Enclosure is a modular enclosure for the Original Prusa XL. It creates a more stable print environment, reduces drafts, helps minimize warping with demanding materials such as PCCF, Nylon, PP, ASA or ABS and includes an integrated filtration system with a HEPA filter. With LED status lighting, magnetic bellows-style front cover, metal frame and included PCCF replacement parts, it is ideal for professional XL workflows using engineering filaments.

729,00 €

incl. 19% VAT

(612,61 € excl. VAT)

Out of stock

PRUSA XL ENCLOSURE

Original Prusa XL Enclosure

Modular enclosure for the Original Prusa XL – for a more stable print environment, reduced drafts, less warping and better control when printing demanding materials such as PCCF, Nylon, PP, ASA and other engineering filaments.

A stable printing environment for the Prusa XL

The Original Prusa XL Enclosure is designed specifically for the Original Prusa XL and integrates neatly with the existing printer structure. The enclosure protects the print area from drafts and sudden temperature changes, reduces dust on moving parts and supports more reliable prints with engineering materials that benefit from a warm and controlled environment.

More control with demanding materials

The XL Enclosure creates a more stable environment with elevated temperatures and makes printing materials such as PCCF, Nylon, PP, ASA and other engineering filaments significantly easier. In addition, the integrated filtration system helps reduce odors and the spread of ultrafine particles in the air.

For Original Prusa XL

Stable print environment

HEPA filter 99.9%

LED status lighting

Bellows-style front cover

Printer not included

700 × 900 × 720 mm

Dimensions when installed

15.7 kg

Enclosure weight

99.9%

HEPA filter efficiency

Passive

Heated by the printer heatbed

FILTRATION SYSTEM WITH HEPA FILTER

Less odor and reduced particle spread

The advanced filtration system of the Original Prusa XL Enclosure helps reduce odors and limit the spread of ultrafine particles in the air. The XL controls filtration automatically and can manage filter power and post-print filtration time directly through the printer menu.

HEPA filter

Reduced UFP spread

Odor reduction

Automatic filtration control

Filter status in printer menu

MAGNETIC BELLOWS COVER

Better access and flexible airflow

The special magnetic bellows-style front cover can be opened and folded quickly. This keeps access to the large XL print area convenient without requiring extra space to the sides or in front of the printer for traditional doors. For materials such as PLA, the cover can be opened to improve airflow and prevent the enclosure temperature from rising too high.

Highlights

Stable print environment

The enclosure protects against drafts and sudden temperature changes – ideal for engineering materials that are more prone to warping.

Integrated filtration system

HEPA filtration with automatic control through the XL helps reduce odors and ultrafine particles while printing.

LED status lighting

The additional LED strip is synchronized with the XL and acts both as print area lighting and printer status indication.

High-quality components

Metal frame, PETG side panels, PETG top cover and clean cable management provide robust integration.

Quickly removable

The enclosure is mounted directly to the printer and can be removed when needed.

Everything included

All required plastic parts are included – no parts need to be printed separately.

Package Contents

Frame parts	Components for assembling the XL Enclosure frame
Transparent panels	Side panels, top and bottom panel for the enclosure
Bellows cover	Magnetic bellows-style front cover made from polyester and polyurethane
PCCF replacement parts	More heat-resistant replacement parts for selected XL printer components
Electronics & accessories	Temperature sensor, LED strip, mounting hardware and documentation
Note	The Original Prusa XL 3D printer is not included

Technical Data

Product	Original Prusa XL Enclosure
Product Type	Modular enclosure for the Original Prusa XL
Compatible Printer	Original Prusa XL
Version	Disassembled kit
Dimensions when installed	700 mm width × 900 mm height × 720 mm depth
Weight	15.7 kg
Enclosure Type	Passive, heated only by the 3D printer heatbed
Filtration System	Integrated filtration system with HEPA filter, 99.9% efficiency
Lighting	Additional LED strip synchronized with the XL printer
Front Cover	Magnetic bellows-style cover made from polyester and polyurethane
Frame	Metal frame with mounting points for extensions and cable management
Side Panels / Top	PETG plastic
Mounting	Mounted directly to the printer, quickly removable if needed

Especially useful for engineering materials

The Original Prusa XL Enclosure is especially useful when the XL is frequently used with more demanding materials. The more stable environment helps with filaments that are sensitive to drafts and temperature changes.

PCCF

Nylon / PA

ASA

ABS

PC Blend

Technical prototypes

Functional parts

Typical Applications

Engineering filaments

Functional parts

PCCF prints

Nylon parts

ASA outdoor parts

Workshop and lab

Small series

Professional print environment

More Information from Prusa

Visit the official Prusa product page for more information about the XL Enclosure, its features, package contents, technical parameters, filtration and assembly.

View Original Prusa XL Enclosure →

Usage note

The Original Prusa XL Enclosure is a passive enclosure and does not include active heating. Heating is provided by the printer heatbed. For materials such as PLA or PETG, increased airflow may be useful to prevent the enclosure temperature from becoming too high. The Original Prusa XL 3D printer is not included.

PRUSA AT WELECTRON

Welectron provides professional advice, fast shipping and technical support for Prusa 3D printers, enclosures, filaments, spare parts and accessories.
