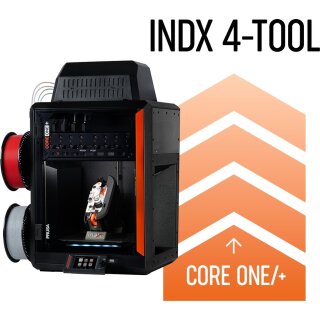

Prusa INDX Tool Conversion Kit for CORE One/+

Prusa INDX Tool Conversion Kit for CORE One/+

Artno.: PS8-672100-P
Manufacturers: Prusa Research

The Prusa INDX Tool Conversion Kit for CORE One/+ upgrades the Prusa CORE One or CORE One+ into a powerful multi-material toolchanger with up to eight independent tools. With dedicated filament paths, induction-heated nozzles and hardened high-flow CHT nozzles, it enables colors, flexible materials, engineering filaments, soluble supports and different nozzle sizes to be combined in a single print – with significantly less material waste than classic single-nozzle multi-material systems.

Variant

from

669,00 €

incl. 19% VAT

(562,18 € excl. VAT)

Out of stock

Please select a model.

PRUSA INDX TOOLCHANGER UPGRADE

Prusa INDX Tool Conversion Kit for CORE One/+

Toolchanger upgrade for the Prusa CORE One and CORE One+ with up to eight independent tools, dedicated filament paths and nearly waste-free multi-material printing – ideal for multi-color models, flexible functional areas, soluble supports and different nozzle sizes in a single print.

More material freedom for the Prusa CORE One/+

The Prusa INDX Tool Conversion Kit turns the CORE One/+ into a true multi-material toolchanger. Instead of pushing multiple filaments through one shared melt zone, each material gets its own dedicated tool path. This makes colors, materials and nozzle sizes easier to combine – with less purging, less material waste and more freedom for functional 3D printed parts.

True multi-material capability instead of classic filament switching

INDX works with independent tools. This reduces typical single-nozzle multi-material issues such as material mixing, long purge cycles, large wipe towers and TPU jams in a shared hotend. It is especially useful for users who want to combine colors, rigid and flexible materials, water-soluble supports or abrasive filaments in one workflow.

Up to 8 tools

Dedicated filament paths

Minimal material waste

Hardened CHT nozzles

Multi-color & multi-material

For CORE One/+

Up to 8

Tools on CORE One/+

300 °C

Maximum nozzle temperature

248 × 205 × 270 mm

Build volume with INDX

1.75 mm

Filament diameter

MULTI-MATERIAL WITHOUT A CLASSIC PURGE TOWER

Combine colors, materials and nozzle sizes flexibly

With the Prusa INDX toolchanger, different materials can be combined in a single print: rigid and flexible sections, PETG with TPU grip zones, PLA with PVA support, abrasive materials with hardened nozzles or different nozzle sizes for detail and infill areas. Each tool stays ready and can be picked up when needed.

Multi-color prints

Rigid + flex in one part

Soluble supports

Breakaway supports

Different nozzle sizes

Abrasive filaments

CONVERSION KIT

Upgrade instead of a new printer

The INDX kit is designed as a conversion kit for the Prusa CORE One/+. The existing printer is upgraded with a Smart Head, tool docks, passive tools, PTFE routing and a top cover. Existing print sheets, filaments, PrusaSlicer profiles and the familiar Prusa workflow can continue to be used.

Highlights

Up to eight independent tools

Each material gets its own path, making color changes, material changes and tool changes cleaner and more efficient.

Almost no material waste

Because one shared nozzle does not need to be purged repeatedly, INDX reduces typical wipe towers, filament waste and material contamination.

Induction-heated nozzles

Contactless induction heating in the Smart Head enables fast temperature changes and efficient tool switching.

Hardened high-flow nozzles

The passive tools use hardened CHT nozzles and are suitable for abrasive filaments such as carbon-fiber materials.

Fast tool calibration

A calibration system mounted outside the print area supports precise toolhead offsets and significantly shortens calibration time per tool.

Open Prusa workflow

Preparation and control are handled through PrusaSlicer, EasyPrint, Prusa Connect and the familiar Prusa workflow – ideal for makers, labs, schools and businesses.

Kit contents depending on version

Smart Head	1× Smart Head with induction coil, DX extruder and contactless temperature sensor
Passive tools	Depending on version, 4× or 8× passive tools with hardened CHT nozzles, 0.4 mm default
Docking hardware	INDX mounting plate and tool docks for CORE One/+
PTFE tubing & mounting	PTFE routing, mounting hardware and assembly components included
Top cover	Top cover with automatic ventilation included
Spoolholders	Depending on version, 4× or 8× spoolholders included

Technical Data

Product	Prusa INDX Tool Conversion Kit for CORE One/+
System type	Passive toolchanger with induction-heated nozzles
Compatible printer	Prusa CORE One / CORE One+; not for CORE One L
Maximum tools	Up to 8 tools on CORE One/+
Nozzle temperature	Up to 300 °C
Filament diameter	1.75 mm
Compatible nozzle sizes	0.25 / 0.4 / 0.5 / 0.6 / 0.8 / 1.0 mm
Nozzle type	Hardened high-flow CHT nozzles
Heating system	Contactless induction coil on the Smart Head
Temperature sensing	Wireless and contactless
Extrusion system	Dynamic Dual Drive with auto-adjusting grip
Tool coupling	Mechanical Maxwell coupling
Build volume with INDX installed	248 × 205 × 270 mm
Supported materials	PLA, PETG, ASA, ABS, PC, PCCF, PA, TPU, PVA, BVOH and other 1.75 mm filaments up to 300 °C

Typical material combinations

The Prusa INDX Tool Conversion Kit is suitable for multi-material 3D prints with colors, engineering filaments, flexible materials and support materials. The separate material path is especially useful for combinations that are difficult to control in a shared nozzle.

PLA + PVA

PETG + TPU

ASA + support

PC + CF filaments

TPU grip zones

Multi-color models

0.25 mm details

0.8 mm infill areas

Typical Applications

Multi-material printing

Multi-color models

Functional parts with TPU

Soluble supports

Abrasive filaments

Prototypes

Small series

Workshop and development

More Information from Prusa

Visit the official Prusa product page for more information about the INDX Tool Conversion Kit, compatible printers, material possibilities, package contents and technical data.

View Prusa INDX Tool Conversion Kit →

Compatibility note

The INDX Tool Conversion Kit is intended for the Prusa CORE One/CORE One+. Before ordering, check whether your printer meets the required CORE One+ status and whether the selected kit version fits your workflow, desired number of tools and filament requirements.

PRUSA AT WELECTRON

Welectron provides professional advice, fast shipping and technical support for Prusa 3D printers, toolchanger upgrades, filaments, spare parts and accessories.
