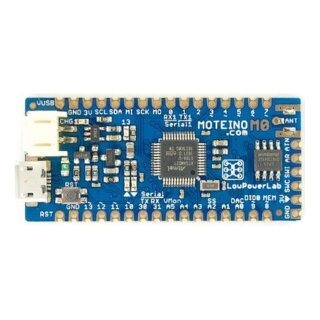

Key Features of MoteinoM0 R1
Microcontroller:
- ATSAMD21G18A microcontroller, which is a 32-bit ARM Cortex M0+ processor.
- Runs at a clock speed of 48 MHz.
- Operates at a core voltage of 3.3V.
Power Supply:
- Accepts an input voltage range of 3.6V to 6V.
- Low power consumption of approximately 8 µA in standby mode with the flash and transceiver in deep sleep.
I/O Pins:
- 23 digital pins (11 of which support PWM).
- 6 analog ADC pins with 12-bit resolution.
- 1 analog DAC pin with 10-bit resolution.
Memory:
- Flash memory of 256 KB, with 8 KB used by the bootloader.
- SRAM of 32 KB for data storage.
Wireless Communication:
- Compatible with various RF transceivers, including:
- RFM69HCW (FSK transceiver)
- RFM95 (LoRa transceiver)
- RFM96 (another LoRa transceiver)
Programming and Development:
- Fully compatible with the Arduino IDE, allowing users to write and upload sketches easily.
- Supports various libraries for different functionalities, making it versatile for a range of applications.
Applications:
- Suitable for IoT projects, remote sensing, environmental monitoring, smart agriculture, and home automation.
- Designed for low-power applications, making it ideal for battery-operated devices.
Model Overview
| Feature |
MoteioM0 R1 Standard |
MoteioM0 R2 Standard |
| Microcontroller |
ATSAMD21G18A |
| USB Connectivity |
No built-in USB support; requires FTDI |
Built-in USB interface for programming and power |
| Reset Button |
No reset button |
Includes a reset button |
| Power Management |
Basic power management |
Improved power management features |
| Size |
Slightly larger |
More compact layout |
| LED Indicators |
Limited LED indicators |
Additional status LEDs |
| RF Transceiver Support |
RFM69HCW, RFM95, RFM96 |
