Siglent SDG7102A Waveform Generator
Artno.: SL3-471020
Arbitrary Waveform Generator, 2 Channels,1 GHz Bandwidth, 5 GS/s Sample Rate, 512 MPts Memory Depth, 14-bit Resolution, 5" Touch Screen Display,3x USB 2.0 Host / USB 2.0 Device / LAN Interface, Web Interface, Touch Screen

15,232.00 € incl. 19% VAT
12,800.00 € excl. VAT
Orderable

Shipping time: 5 - 7 business days

Description

SIGLENT's SDG7000A is a family of dual-channel arbitrary waveform generators providing bandwidths up to 1 GHz, a maximum sample rate of 5 GSa/s, and a vertical resolution of 14 bits. It can generate arbitrary waveforms point by point with a maximum sample rate of 2.5 GSa/s and vector signals with a maximum sample rate of 500 MS/s. Additionally, it has the ability to generate a variety of signals including continuous wave, pulse, noise, PRBS patterns, and a 16-bit digital bus. It supports the generation of complex signals such as modulation, sweep, bursting, as well as dual-channel copy/couple/track and overlay. Outputs are differential/single-ended and support a maximum output range of ±24 V. The instrument can ensure high amplitude at high frequencies, eliminating the need for an external power amplifier in some applications and covering a wider range of requirements.

Main Features

  • Dual-channel differential/single-ended output, 16-bit LVDS/LVTTL digital bus output
  • High-performance sampling system with 5 GSa/s sample rate and 14-bit vertical resolution
  • Maximum bandwidth up to 1 GHz
  • Generates arbitrary waveforms with sample rates from 0.01 Sa/s to 2.5 GSa/s and maximum memory depth
  • Generates vector signals with a symbol rate of up to 500 MS/s
  • Generates low jitter pulses, with a minimum pulse width of 1 ns and minimum rise/fall time of 500 ps
  • Up to 1 GHz bandwidth for White Gaussian Noise with adjustable bandwidth
  • Supports PRBS up to 312.5 Mbps
  • The digital bus can output digital signals up to 1 Gbps
  • Supports analog/digital modulation, sweeping, and bursting
  • Enhanced dual-channel operation functions: Inter-channel tracking, coupling, and copying; Dual-channel superposition function; Supports mutual modulation between channels.
  • The 24 Vpp analog output is superimposed with ± 12 Vdc offset to provide a maximum output range of ± 24 V (48 V)
  • High-precision frequency counter
  • 5-inch capacitive touchscreen with a resolution of 800x480; Supports external mouse and keyboard operation; Supports WebServer for remote control of the instruments
  • Supports multiple interfaces: 10 MHz In, 10 MHz Out, Trigger In/Out, RS-232, USB Host, USB Device, LAN, LXI Core 2011, USB-GPIB (optional)
  • Compact size: W x H x D = 261.4 mm x 117.3 mm x 329.2 mm
  • Power supply: 100 VAC - 240 VAC, 50/60 Hz
  • Weight: 3.4 kg

Model Overview

SDG7102A SDG7052A SDG7032A
Channels 2 Differential/Single-ended
Bandwidth 1 GHz 500 MHz 350 MHz
Sample Rate 5 GSa/s
Vertical Resolution 14-bit
Arbitrary waveform 0.01 Sa/s ~ 2.5 GSa/s sample rate; 24 pts ~ 512 Mpts/ch memory depth, with segment editing and playback
Vector signal (Optional) 500 MS/s max symbol rate; Carrier DC ~ 1 GHz settable. Includes modulation modes such as ASK, PSK, FSK and QAM. EasyIQ software provides vector signal creation and editing
Continuous waveform Up to 1GHz, supports harmonic generation function
Pulse Min pulse width 1 ns, min. edge 500 ps pulse with low jitter, the rise/fall edge is independently fine adjustable, and the pulse width is fine adjustable
SDG7102A SDG7052A SDG7032A
Noise Bandwidth 1 mHz ~ 1 GHz adjustable
PRBS Bit rate 1 µbps ~ 312.5 Mbps, length PRBS3 ~ PRBS32
Complex signal generation Supports internal/external modulation, AM, FM, PM, PWM, FSK, PSK, ASK, etc.; Supports sweep; Support burst
Dual-channel function Inter channel tracking, coupling, and copying. Dual channel superposition function. Supports mutual modulation between channels
Output range 24 Vpp analog output superimposed ± 12 V DC offset, supports a maximum output range of ± 24 V (48 V)
Digital bus(Optional) 16-bit, LVTTL or LVDS output
Bit rate: 1 µbps ~ 1 Gbps
Interfaces USB 2.0 Host x3, USB 2.0 Device(USBTMC)
LAN 10M/100M (VXI-11/Telnet/Socket/WebServer)
EXT MOD/CNT, 10MHz In, 10MHz Out, Marker x2, Trigger In/Out
Interaction 5'' TFT-LCD with capacitive touch screen (800x480)
Supports mouse operation
Supports Webserver
Supports SCPI control

Package Contents

  • Device
  • Power Cord
  • USB Cable
  • Quick Start Guide
  • 2x BNC Coaxial Cable
  • Wireless mouse

Features

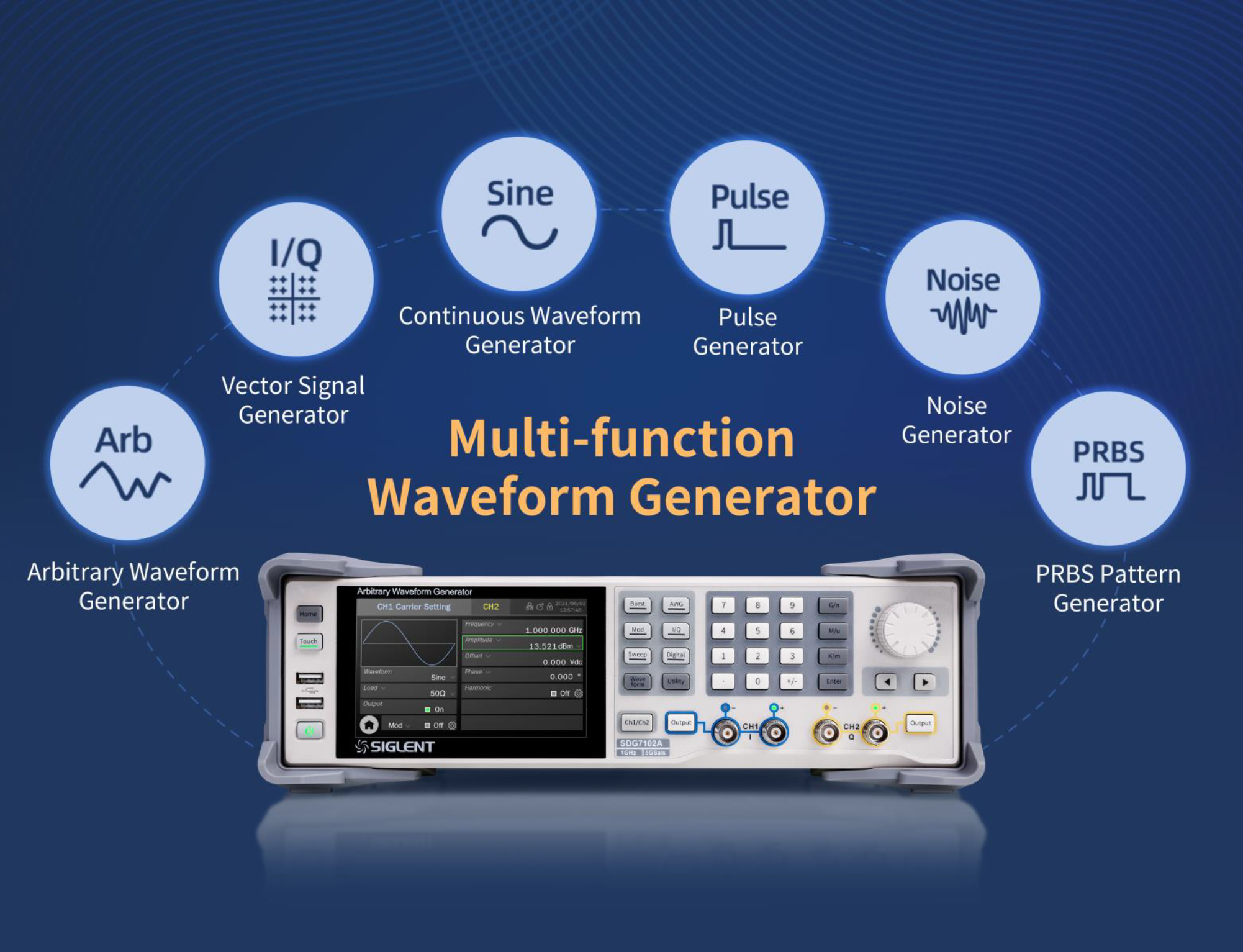

Multifunctional Waveform Generator
The SDG7000A series integrates multiple waveform generator functions from DC to continuous waves up to 1 GHz, which can replace RF signal generators in some applications. It adopts Siglent's TrueArb point by point arbitrary waveform generation technology, which enables user adjustable output sample rates from 0.01 Sa/s to 2.5 GSa/s with excellent jitter performance and the generation of I/Q vector signals with a maximum settable bandwidth greater than 500 MHz. Using the benefits of Siglent's EasyPulse architecture, a low jitter pulse with a minimum pulse width of 1 ns can be generated. The SDG7000A also features a Gaussian noise output with adjustable bandwidth, Pseudo random code generation, an optional 16 channels of digital signal output for synthesizing digital communications, and much more.

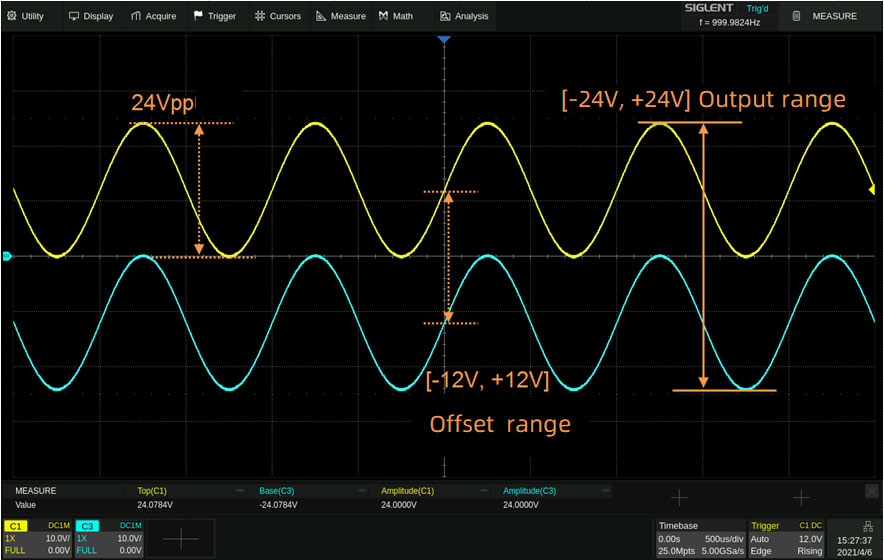

Wide Range Amplitude Output
24Vpp analog output superimposed with ± 12 Vdc offset, providing a maximum output range of ± 24 V (48)

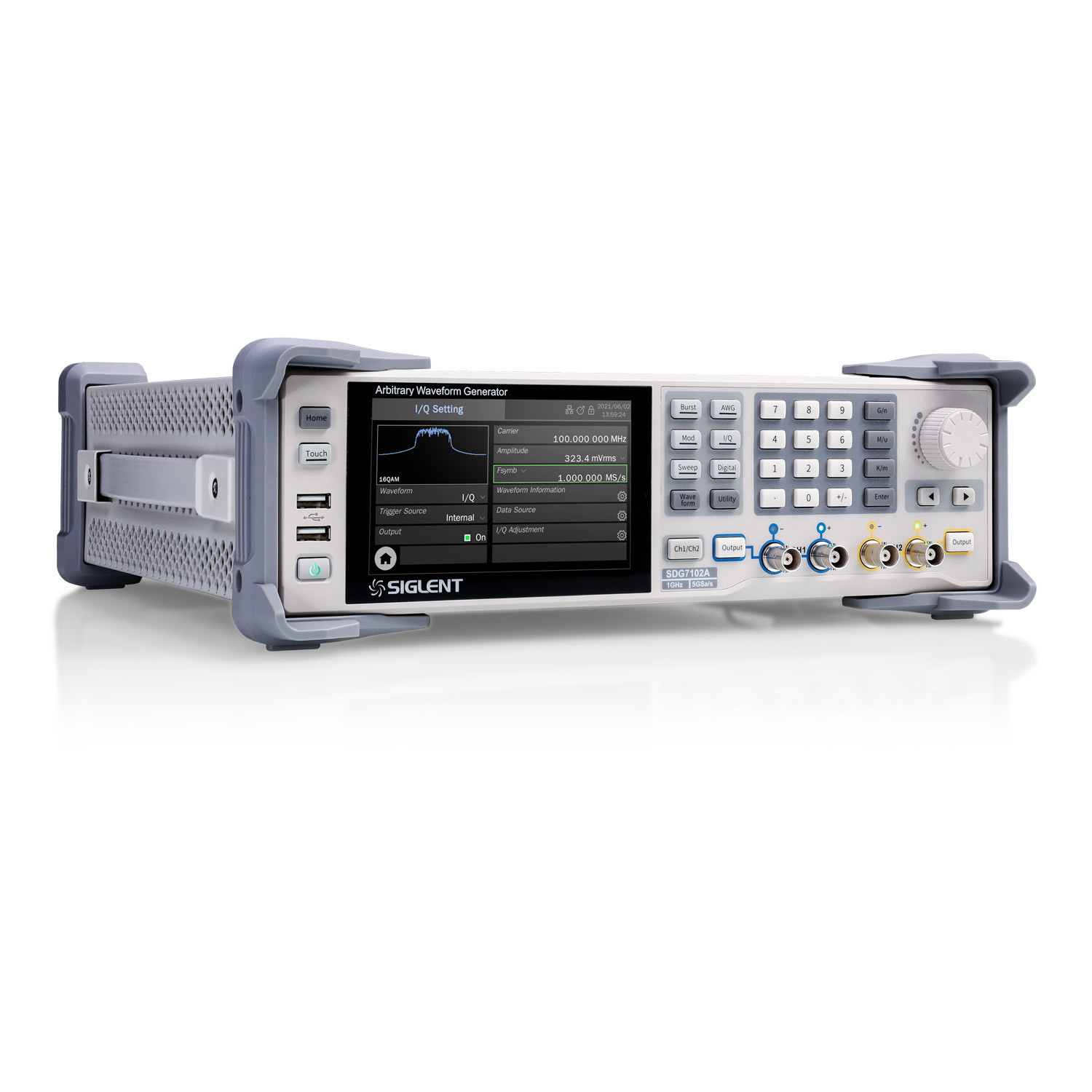

Excellent Arbitrary Waveform Generation

AFG mode and AWG mode
AFG mode uses traditional DDS technology to generate arbitrary waveforms.
AWG mode uses the innovative TrueArb technology, with an adjustable sample rate from 0.01 Sa/s~ 2.5 GSa/s and jitter less than 20 ps. It not only has all the advantages of traditional DDS technology, but also overcomes its intrinsic jitter and distortion defects. The flexible platform also provides zero order hold, linear and sinc interpolation methods for increased flexibility when creating complex waveforms.

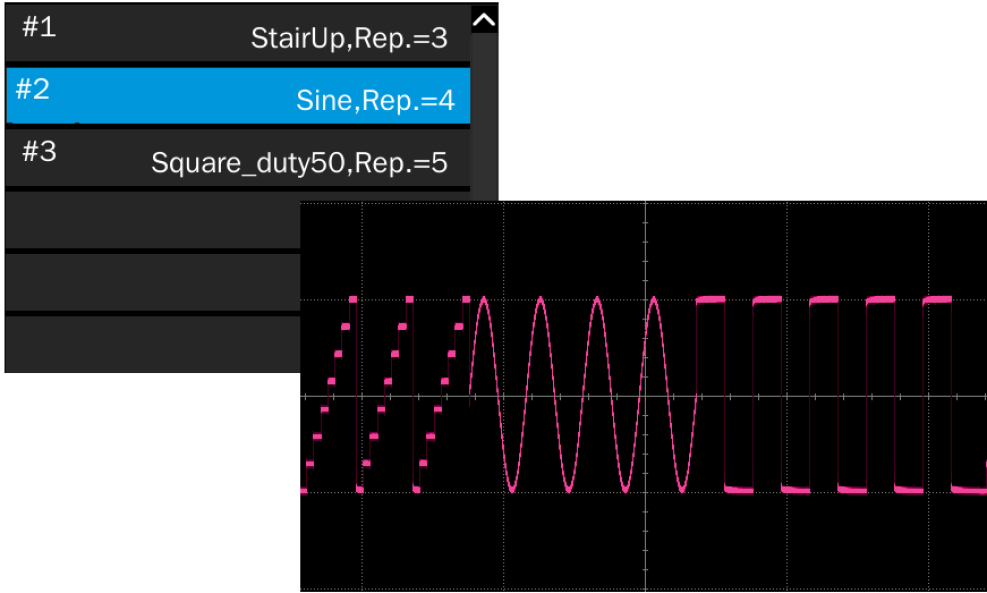

Sequence editing and playback
The SDG7000A supports up to 1024 arbitrary wave segments, each of which can be set with a maximum of 65535 repetitions. When switching between segments, the output seamlessly moves from the last point of the previous segment to the first point of the next segment without generating an idle level. It is suitable for applications with high requirements for waveform switching.

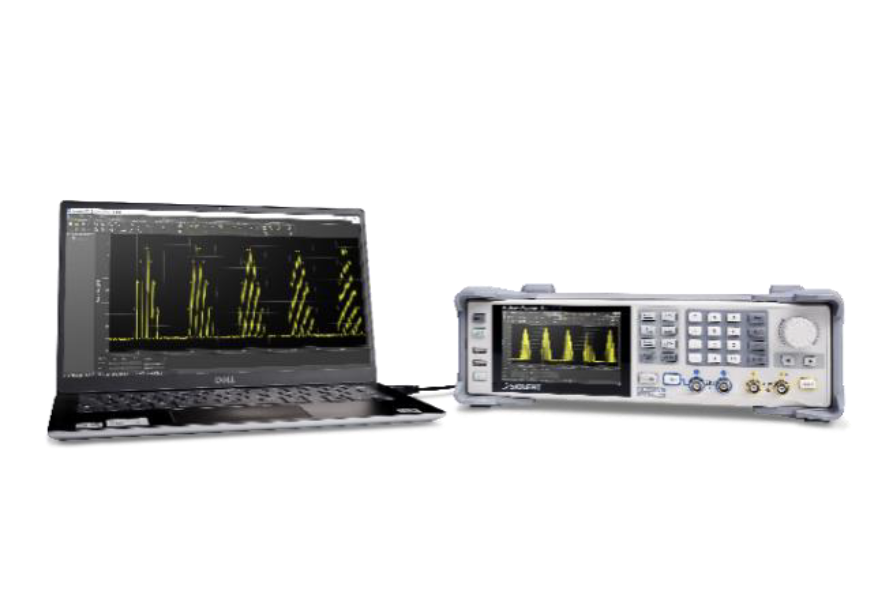

EasyWaveX
EasyWaveX supports extensive arbitrary wave editing functions including manual, linear, coordinate, and equation drawing that facilitate rapid generation of the required waveforms. The EasyWaveX editing software is embedded in the SDG7000A, and can also be installed in a computer, interacting with the SDG7000A over USB or LAN interfaces.

High Speed Low Jitter Pulse

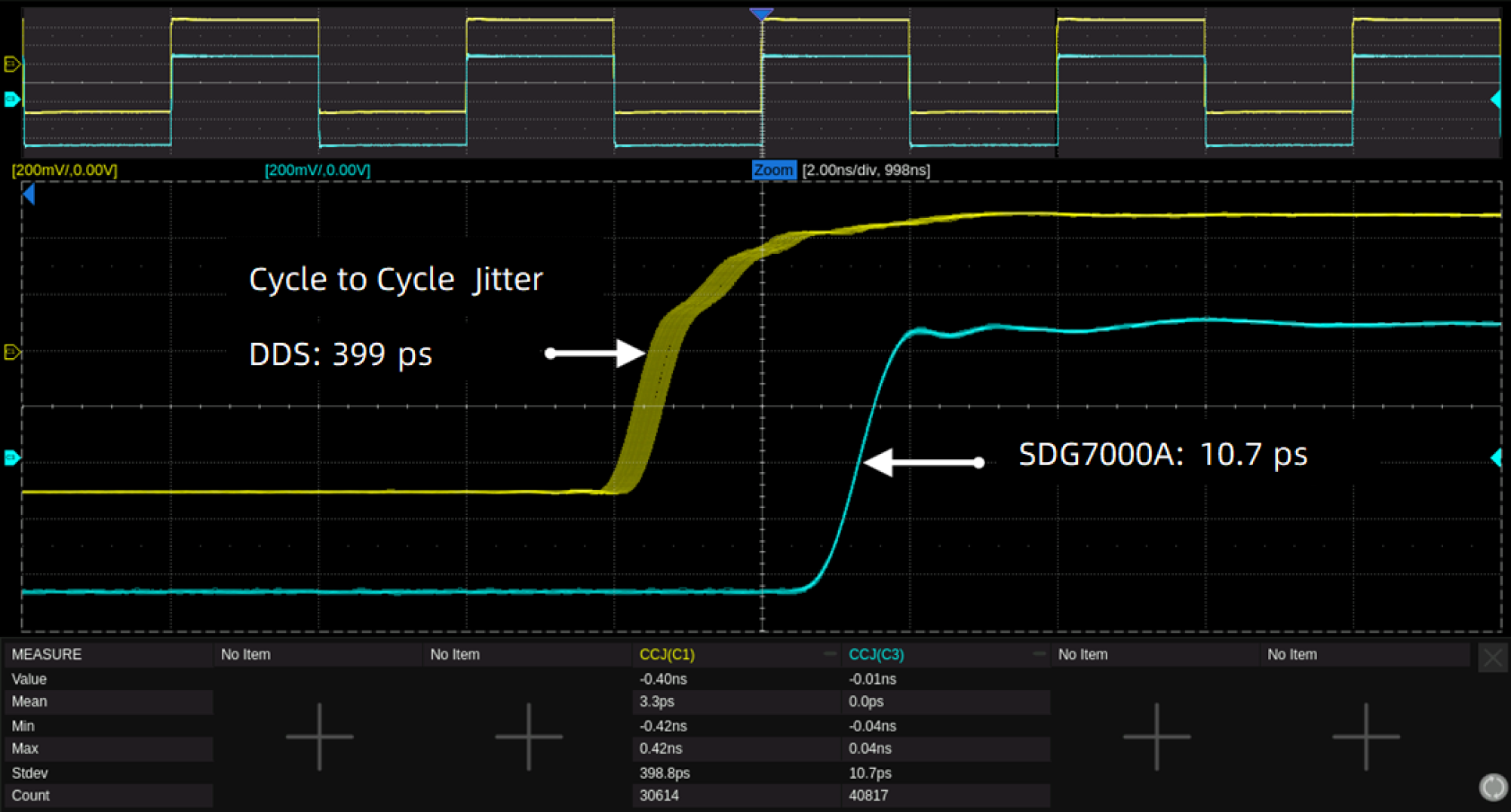

Low Jitter
When a Square/Pulse waveform is generated by traditional DDS, there can be additional jitter if the sample rate is not an integer related multiple of the output frequency. EasyPulse technology successfully overcomes this weakness in DDS designs and helps to produce low jitter Square/Pulse waveforms

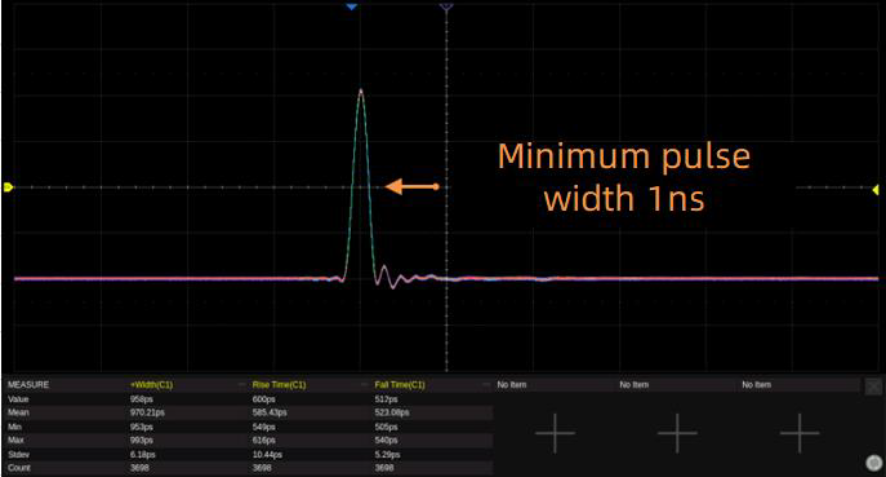

High speed
The minimum 1 ns pulse width, can be generated at any frequency. The pulse width can be finely adjusted in steps of 10 ps

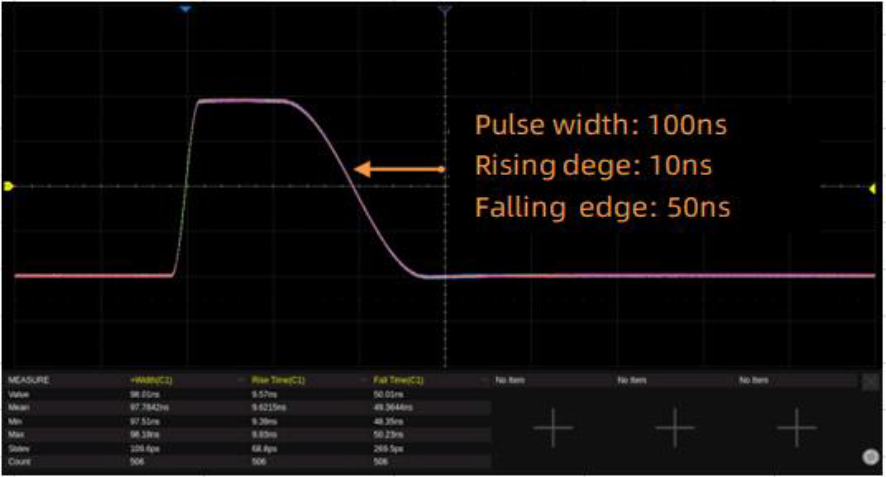

Flexible edge
Adjustable fine step resolution to 100 ps The minimum edge is 500 ps and can be generated at any frequency. The ris ing / fall ing edge can be set respectively and can be used to generate asymmetric pulse

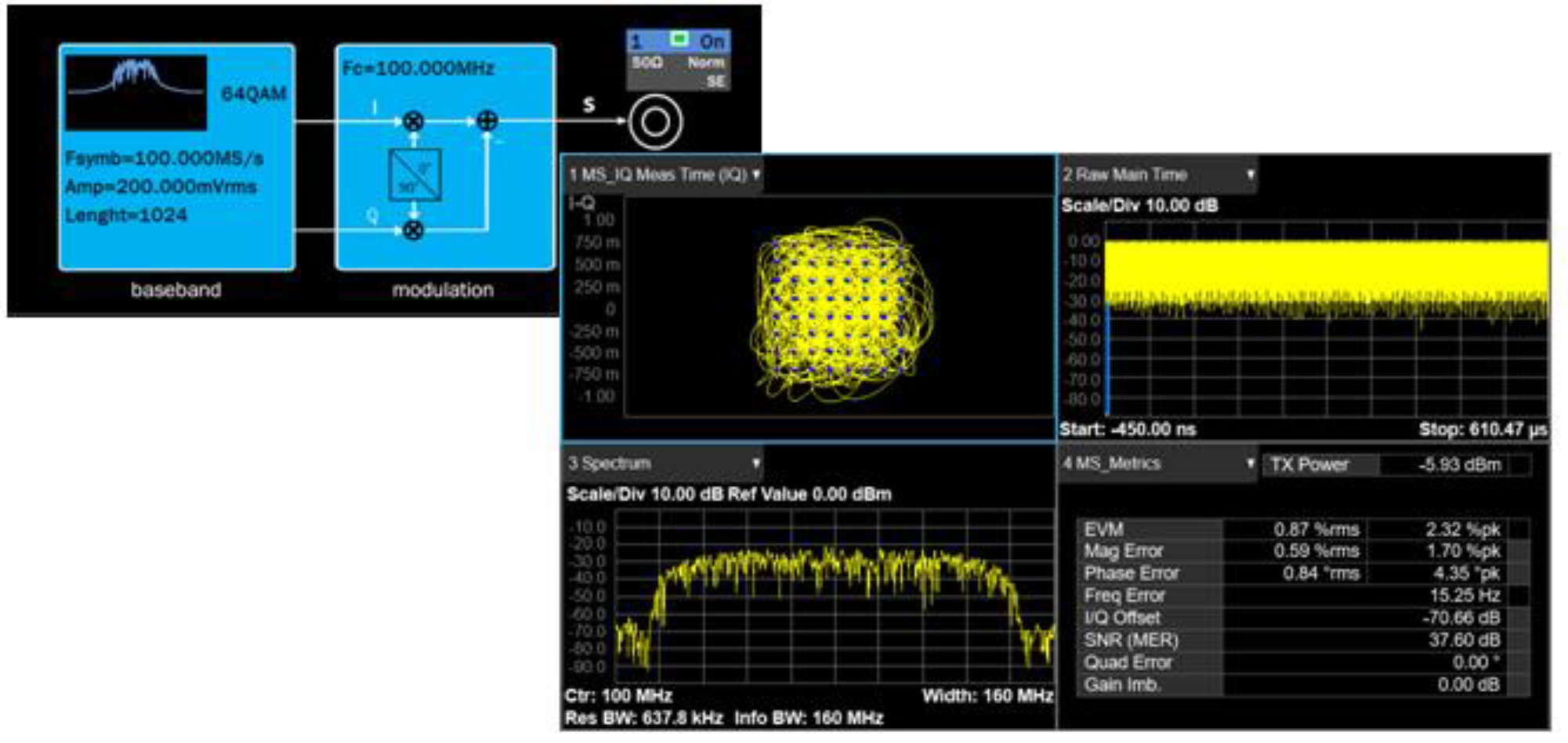

Vector Signal Output (Optional)
The SDG7000A can generate common modulation types of IQ signals, such as ASK, FSK, PSK, QAM. With the innovative resampl ing technology, excellent EVM performance can be obtained at any symbol rate between 250 S /s ~ 500 M S /s. The built in digital quadrature modulator can modulate the carri er of the IQ signal to any frequency between 0 Hz~1 GHz . The EasyIQ software can be used to generate and edit various types of IQ signals

Complex Signal Generator

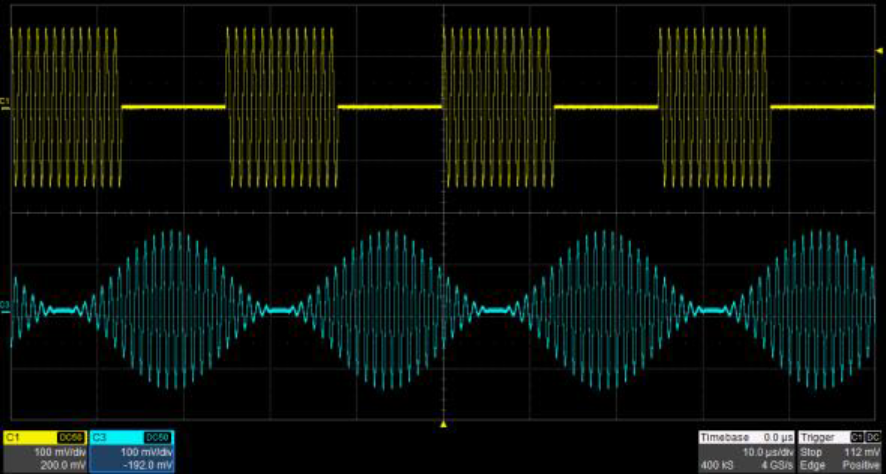

Modulation
A variety of analog and digital modulation modes such as AM, FM, PM, FSK, ASK, PSK, DSB SC, and PWM are supported. There are three modulation sources: Internal, External, and Channel.

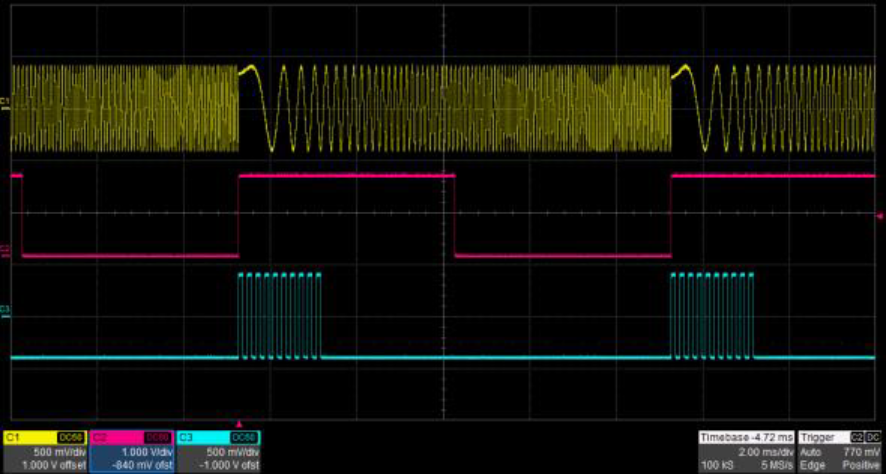

Sweep and Burst
Sweep supports "Line" and "Log" modes, while Burst enables "NCycle" and "Gated" modes. Both Sweep and Burst support trigger sources: Internal, External, and Manual.

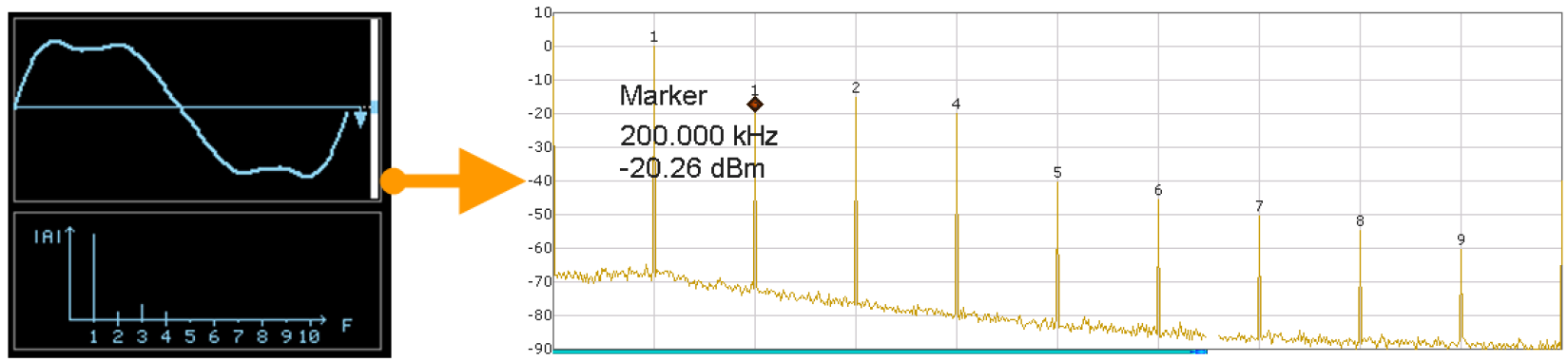

Harmonics Function
Harmonics Function provides the ability to add higher order elements to your signal.

Enhanced Dual Channel Functionality

Two Dual-Channel Operation Mode
Independent mode enables the two channels to be used as two independent generators. Independent mode also eliminated the discontinuity on the output when parameters (frequency, amplitude) change.
Phase Locked mode Automatically aligns the phases of each output.

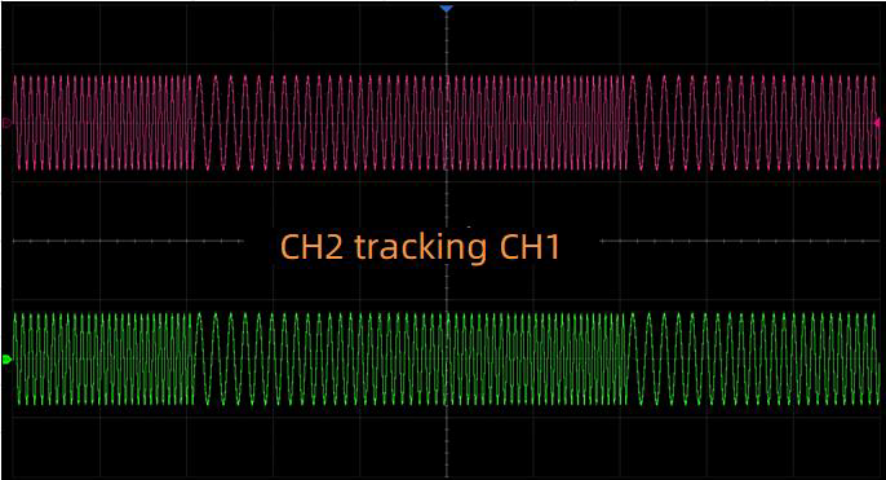

Track/Copy/Coupling
The track, copy and coupling functions between the two channels can quickly transfer the parameters of one channel to the other according to the requirements, greatly simplify the operation and meet the requirements of fast and synchronous switching waveforms.

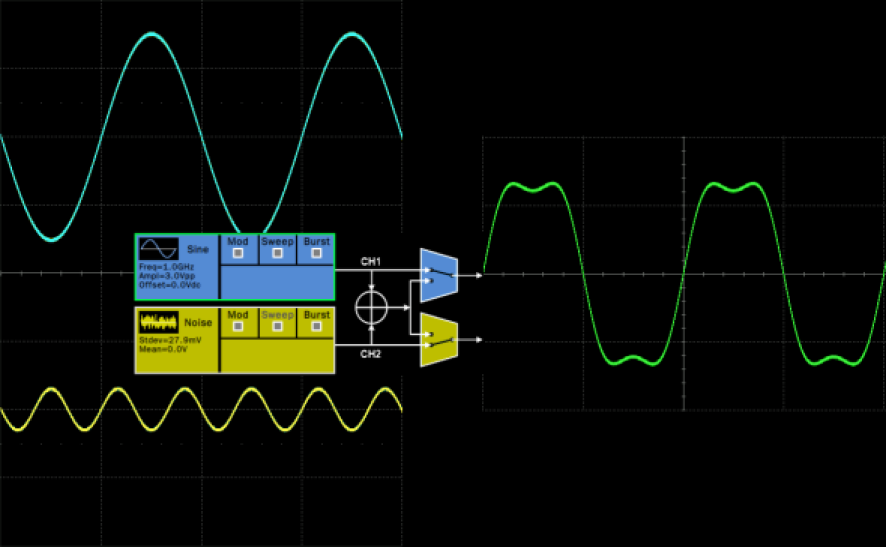

Waveform Combining
Superimposes CH1 and CH2 waveforms internally and provides the combined waveform to a user selected output. It easily combines basic waveforms, random noise, modulation signals, sweep signals, burst signals, EasyPulse waveforms, and TrueArbwaveforms without external connections or complex editing.

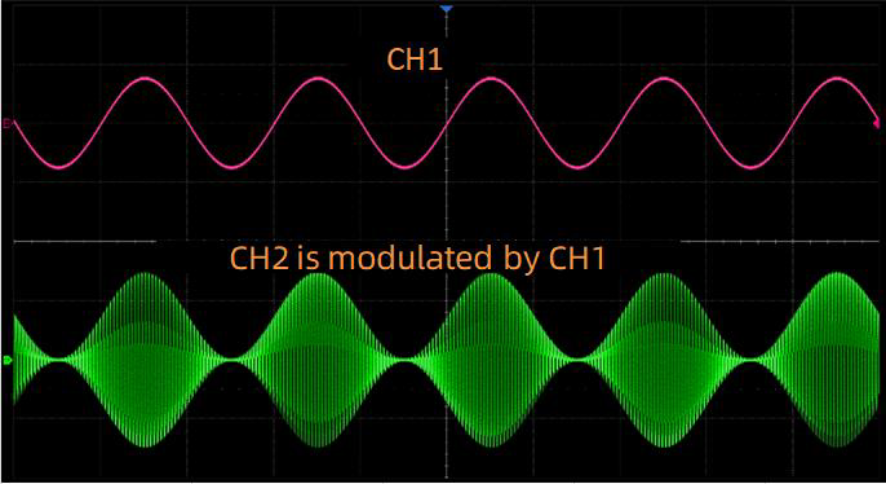

Channel Modulation
One channel can modulate the other without external connections. This feature provides an easy method for complex modulation waveform creation. The modulating wave channel can be directly output and compared with the modulated signal.
