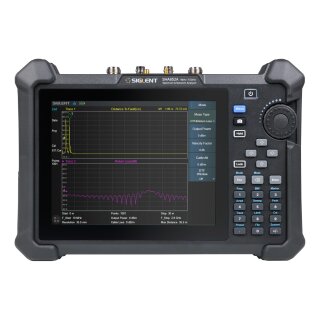

The SIGLENT SHA850A, a handheld portable spectrum analyzer and cable-and-antenna analyzer, is a powerful and flexible tool for those field and outdoor RF applications. Including communication engineering, telecom operation and maintenance, radio management, factory production, education and teaching and many other fields.
With a frequency range up to 7.5 GHz, the analyzer delivers reliable automatic measurements and multiple modes of operation. A spectrum analyzer, including built-in amplifier and independent signal source, fast scanning speed, high sensitivity, can achieve broadcast monitoring, channel power scanning, wireless interference location, power monitoring, electromagnetic compatibility, and other functions. A cable and antenna tester including built-in DC voltage bias, with a 1-path-2-port vector network analysis function, can measure TDR, VSWR, port matching debugging, insertion loss measurement, tower amplifier debugging, cable fault location, Smith chart, etc.
Features and Benefits
- Spectrum Analyzer: Frequency Range 9 kHz to 7.5 GHz
- Displayed Average Noise Level: -165 dBm/Hz (typical)
- Offset Phase Noise: -104 dBc/Hz at 10 kHz (1 GHz, typical)
- Minimum Resolution Bandwidth (RBW): 1 Hz to 10 MHz
- Preamplifier and Independent Signal Source up to 7.5 GHz
- GPS Positioning and Logging
- Vector Network Analyzer: Bias Output up to 32V DC
- Typical Working Time: 4 Hours
- 8.4 Inch Multi-Touch Screen, Mouse and Keyboard Support
Model Overview
|
SHA851A |
SHA852A |
| Spectrum Analyzer |
9 kHz ~ 3.6 GHz |
9 kHz ~ 7.5 GHz |
| Cable and Antenna Test |
100 kHz ~ 3.6 GHz |
100 kHz ~ 7.5 GHz |
Features
8.4 inch multi-touch screen and full keyboard control
GPS Location and trace log recorder, sync 10MHz reference clock
The device's GPS feature captures precise location data and syncs with a 10MHz reference clock for accurate timing, essential for outdoor RF signal surveys and interference analysis.
Channel Power and ACPR measurement
Interference analysis with directional antenna
Cable and Antenna Test based on Timing Domain Analysis
Vector Network Analyzer
100kHz-7.5GHz Vector S11 and S21 measurement, Multi Formats Overlay Display
Modulation Analysis
AM/FM/PM analog modulation, and ASK/FSK/PSK/MSK/QAM digital modulation analysis
