Description

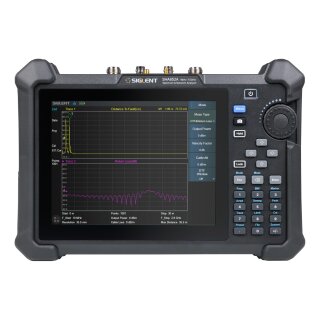

The SIGLENT SHA850A, a handheld portable spectrum analyzer and cable-and-antenna analyzer, is a powerful and flexible tool for those field and outdoor RF applications. Including communication engineering, telecom operation and maintenance, radio management, factory production, education and teaching and many other fields.
With a frequency range up to 7.5 GHz, the analyzer delivers reliable automatic measurements and multiple modes of operation. A spectrum analyzer, including built-in amplifier and independent signal source, fast scanning speed, high sensitivity, can achieve broadcast monitoring, channel power scanning, wireless interference location, power monitoring, electromagnetic compatibility, and other functions. A cable and antenna tester including built-in DC voltage bias, with a 1-path-2-port vector network analysis function, can measure TDR, VSWR, port matching debugging, insertion loss measurement, tower amplifier debugging, cable fault location, Smith chart, etc.
Features and Benefits
- Spectrum Analyzer: Frequency Range 9 kHz to 7.5 GHz
- Displayed Average Noise Level: -165 dBm/Hz (typical)
- Offset Phase Noise: -104 dBc/Hz at 10 kHz (1 GHz, typical)
- Minimum Resolution Bandwidth (RBW): 1 Hz to 10 MHz
- Preamplifier and Independent Signal Source up to 7.5 GHz
- GPS Positioning and Logging
- Vector Network Analyzer: Bias Output up to 32V DC
- Typical Working Time: 4 Hours
- 8.4 Inch Multi-Touch Screen, Mouse and Keyboard Support
Model Overview
| SHA851A | SHA852A | |
|---|---|---|
| Spectrum Analyzer | 9 kHz ~ 3.6 GHz | 9 kHz ~ 7.5 GHz |
| Cable and Antenna Test | 100 kHz ~ 3.6 GHz | 100 kHz ~ 7.5 GHz |
