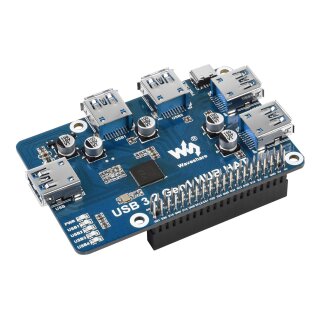

Waveshare 17584 USB 3.2 Gen1 HUB HAT
Artno.: WS1-017584

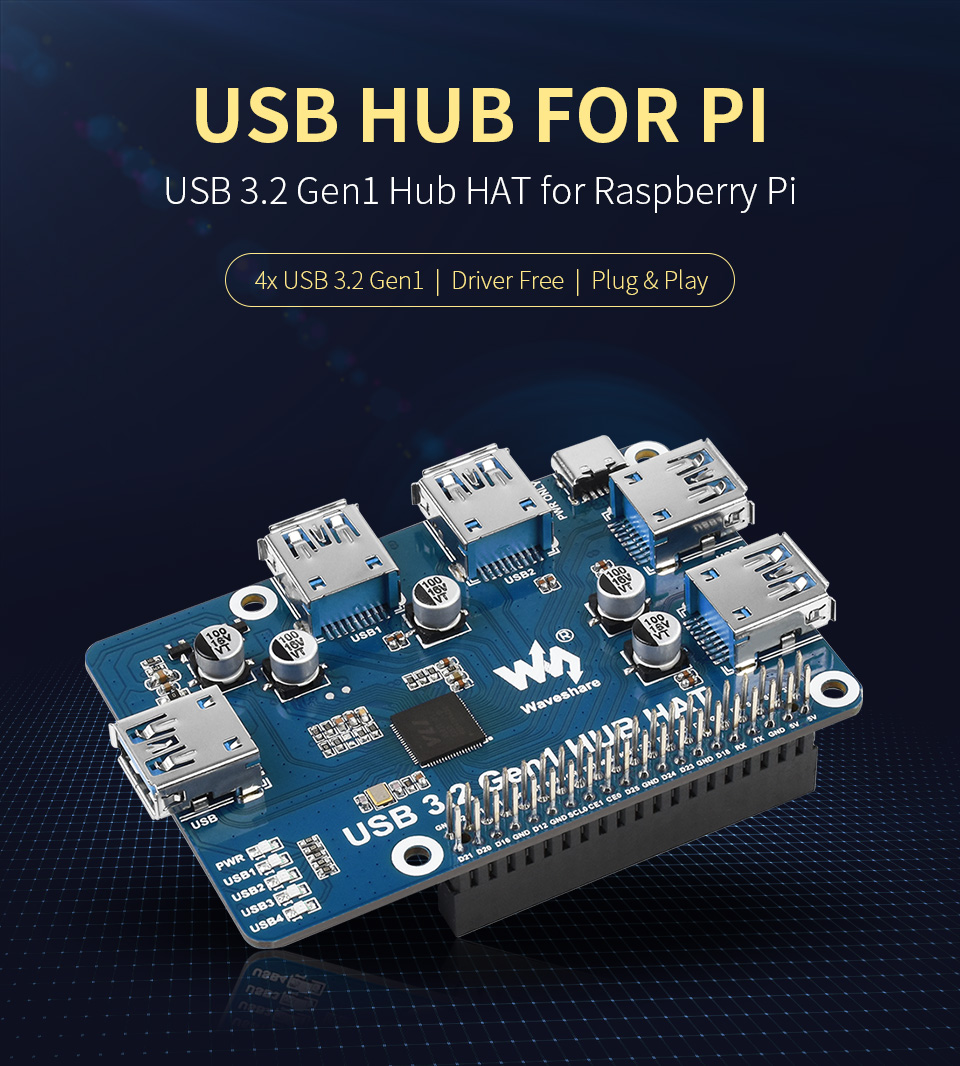

USB 3.2 Gen1 HUB HAT For Raspberry Pi, 4x USB 3.2 Gen1 Ports, Driver-Free

19.90 € incl. 19% VAT
16.72 € excl. VAT
100+ On stock

Shipping time: 1 - 3 business days

Description

This is a driver-free 4 ports USB 3.2 Gen1 hub HAT for Raspberry Pi, provides more USB capability to your Pi, make it easy to connect more USB devices.

The HAT features standard Raspberry Pi 40PIN GPIO extension header, when working with Raspberry Pi 4, the USB 3.2 Gen1 ports is able to provide up to 5 Gbps data rate, which means 10 times faster than USB 2.0.

Features at a glance

  • 4x USB 3.2 Gen1 ports, compatible with USB 3.0 / 2.0 /1.1
  • Onboard external USB-C 5V DC power port, ensures more stable power supply
  • 1x power indicator and 4x USB port indicators, easy to check the operating status
  • Driver-free, plug and play, compatible with OS including Windows, mac OS, Linux and Android
  • Purpose-made for Raspberry Pi 4, compatible with other Raspberry Pi version as well
  • Comes with development resources and manual

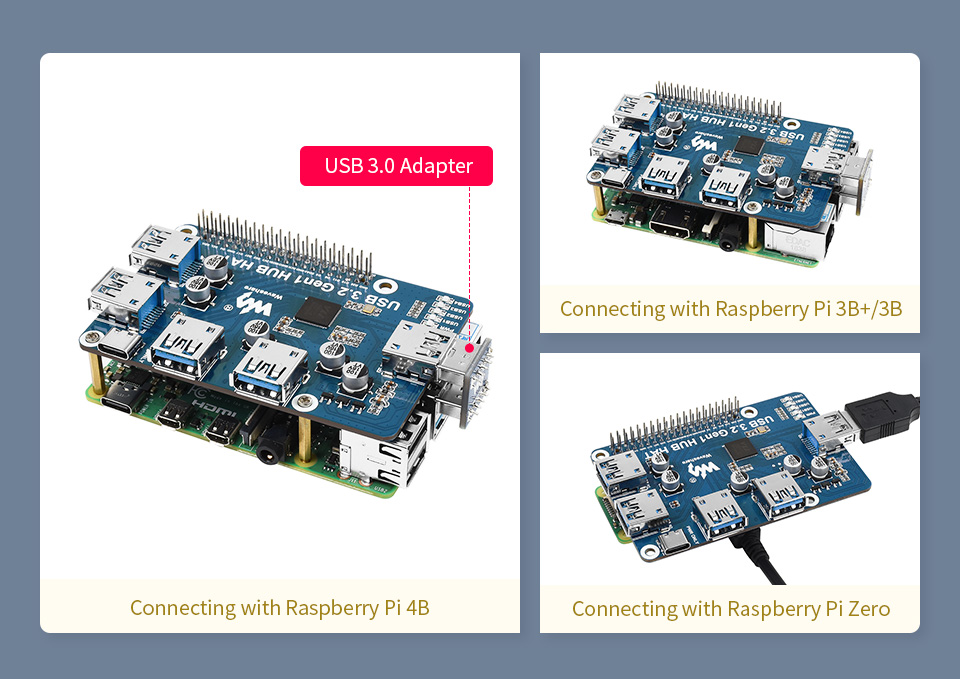

Designed for Raspberry Pi series

Standard Raspberry Pi 40PIN GPIO header, customized for Raspberry Pi series boards

Only Raspberry Pi 4B and Pi 400 support USB 3.0 for the moment, therefore, when working with other previous Raspberry Pi versions, there will be a data rate degradation.

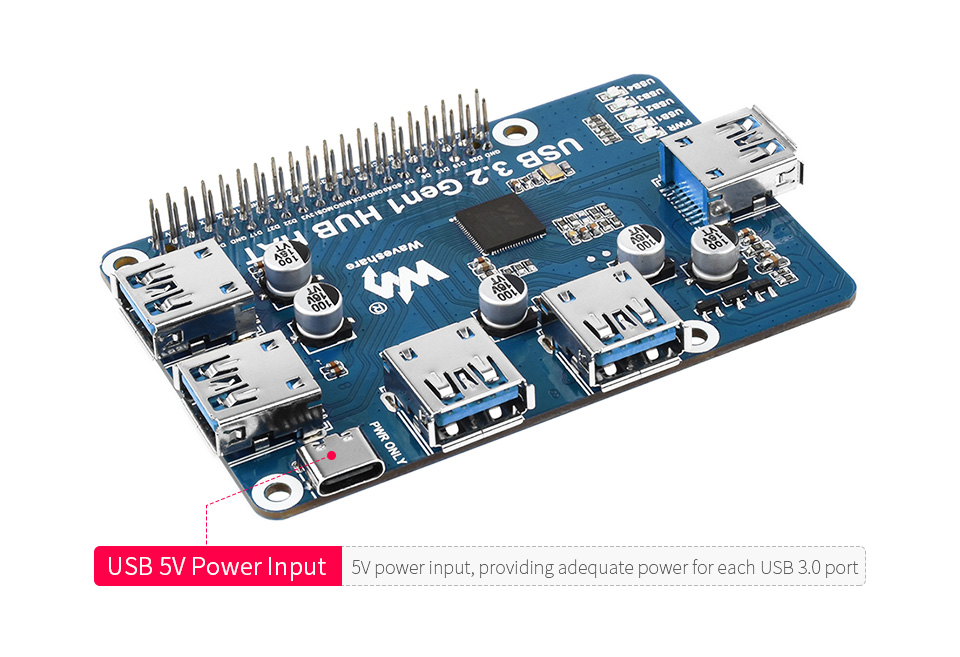

External power supply support

Onboard external USB-C 5V DC power port

Combined with the Raspberry Pi USB power source, it is capable of connecting more USB loads, even the high-power disk device

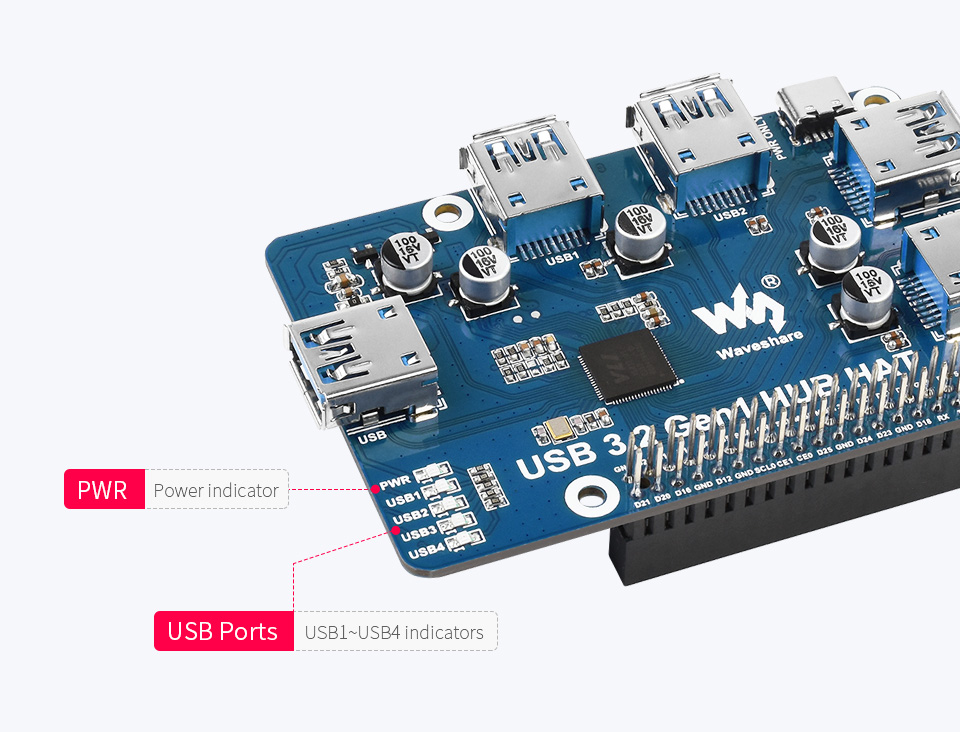

Multiple indicators

easy to check the operating status of power and USB ports

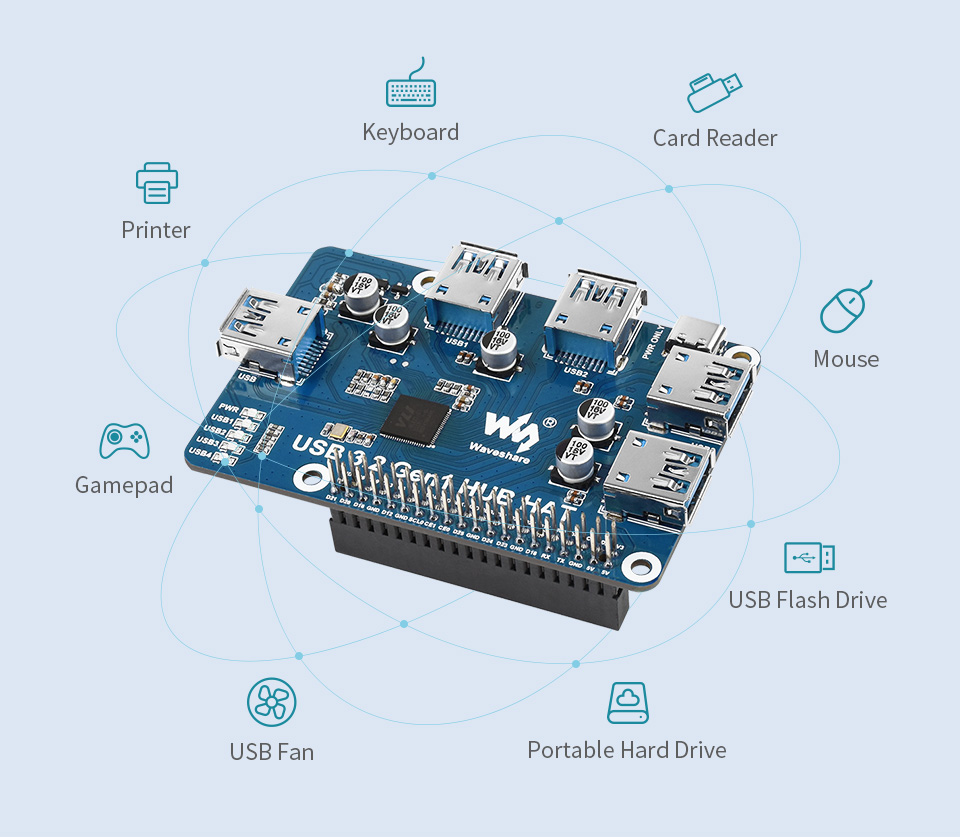

Various USB devices support

Driver free, plug & play

compatible with OS including Windows, mac OS, Linux and Android

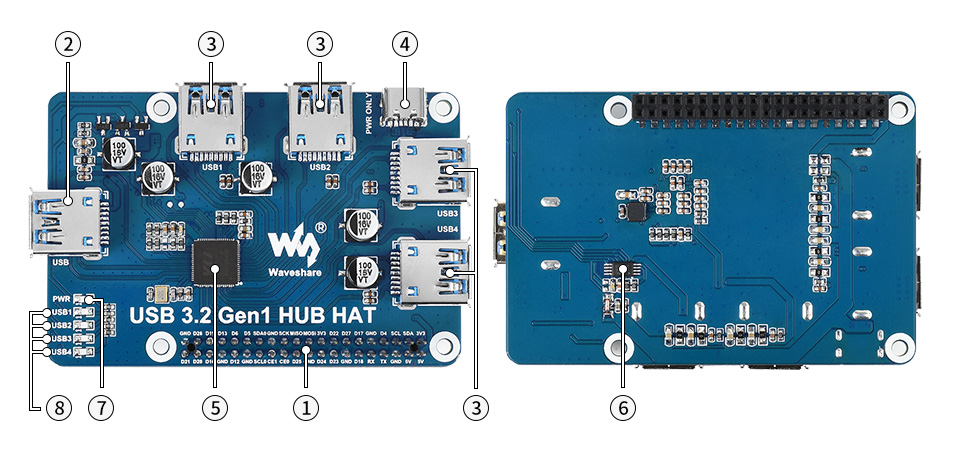

What's on board

  1. Raspberry Pi GPIO header for connecting Raspberry Pi
  2. USB 3.2 Gen1 HUB input connects to Raspberry Pi USB port
  3. USB 3.2 Gen1 extended ports USB1~USB4
  4. PWR ONLY port for external USB-C 5V DC power input
  1. VL817-Q7 USB HUB chip
  2. MX25L512EOI-10G FLASH chip
  3. PWR power indicator
  4. USB1~USB4 USB1~USB4 indicators

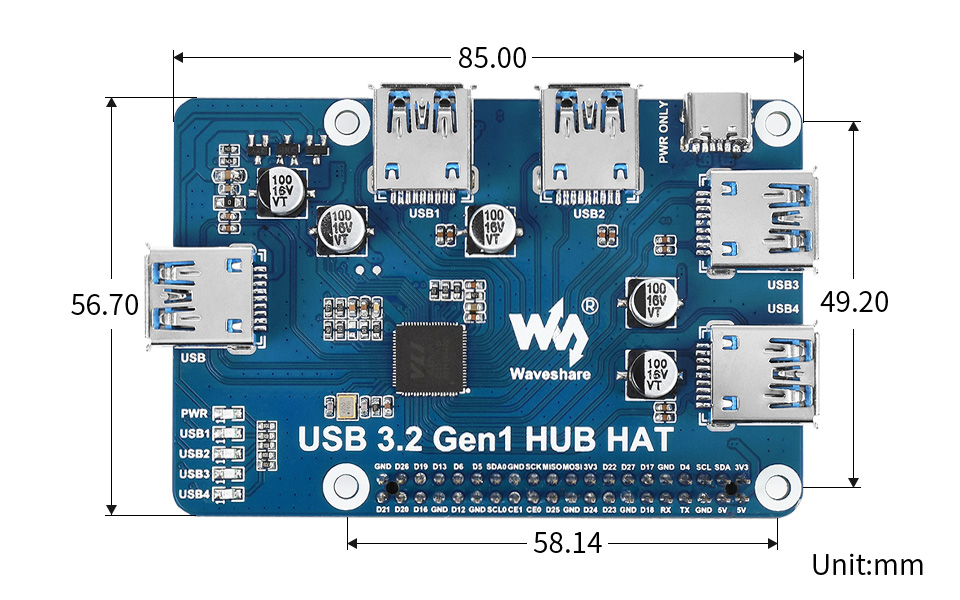

Outline dimensions

Resources & Services

* Resources for different product may vary, please check the wiki page to confirm the actually provided resources.

Package Contents

  1. USB 3.2 Gen1 HUB HAT x1

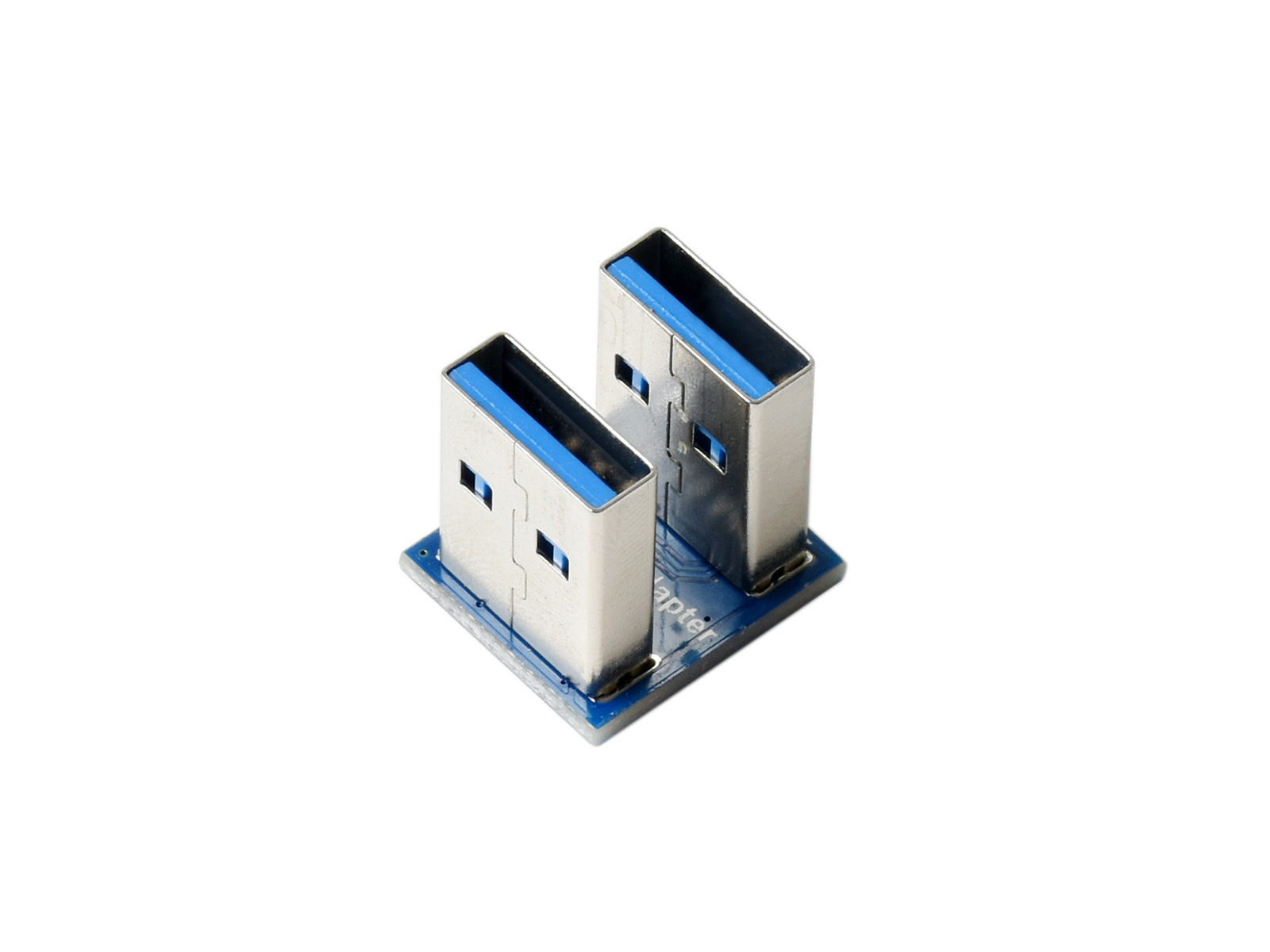

  2. USB 3.0 Adapter x1

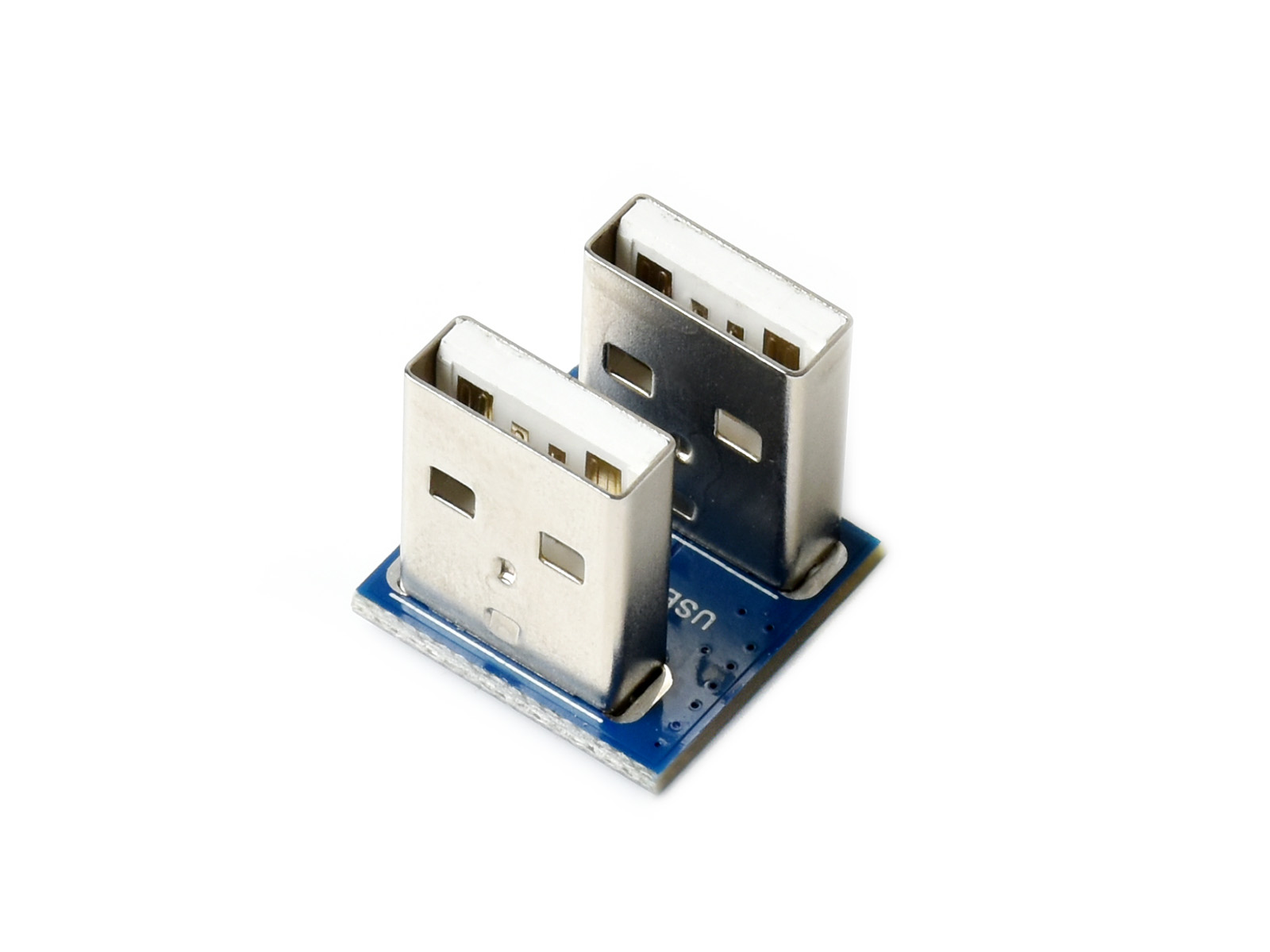

  3. USB 2.0 Adapter x1
  4. USB 3.0 dual plug cable x1
  5. RPi screws pack (2PCS) x1
1
2
3
4
5

Shipping weight: 0.12 Kg
