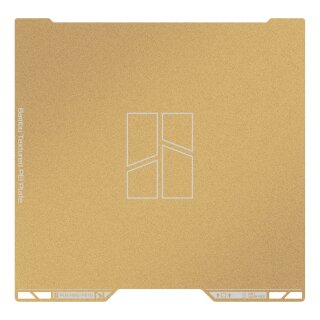

Bambu Lab FAP025 Textured PEI Plate H2D/H2S

Bambu Lab FAP025 Textured PEI Plate H2D/H2S

Artno.: BL9-400025
GTIN: 6937285501356
HAN: FAP025
Manufacturers: Bambu Lab

Excellent first-layer adhesion, Compatibility with various filaments, Self-release, Textured surface finish

Variant: 16,90 €A1 mini

33,90 €X1/P1/A1 (No detection feature)

41,90 €P2S

60,90 €H2D/H2S

60,90 €H2C

60,90 €

incl. 19% VAT

(51,18 € excl. VAT)

soon in stock
Delivery time: ca. 3 weeks (DE - int. shipments may differ)

Description
Product Reviews

The Bambu Textured PEI Plate offers exceptional first layer adhesion, ensuring reliable prints from the outset. Its textured surface finish enhances the grip on various filaments, with a particular emphasis on PLA.

Considerations

Increasing the temperature of the heatbed enhances the adhesion of the filament to the build plate. Users can adjust the temperature of the heatbed or apply glue if additional adhesion is needed.
During the printing process, dust and grease on the surface of the build plate can negatively impact material adhesion. It is recommended to regularly clean the surface with detergent and water to eliminate any dust or grease residue first. If it doesn't work, clean the surface with alcohol.
Wait until the build plate fully cools down to prevents damage to the plate and prints when removing the printed parts.
Do not clean the plate with acetone, as it will damage the PEI surface.
Carefully sanding the surface with fine-grit (600 was recommended) sandpaper can help restore adhesion.
The Textured PEI plate is considered a consumable part, which will degrade over time. The warranty will only cover manufacturing defects, not cosmetic damage like scratches, dents, or cracks. Defective sheets upon arrival are the only ones covered by the warranty.

Model Overview

Recommended Settings
Materials	Heatbed Tempe rature	Glue Stick Required
PLA/PLA-CF/PLA-GF	45 up to 60 ℃
ABS	90 up to 100 ℃
PETG/PETG-CF	60 up to 80 ℃
PET-CF	80 up to 100 ℃
TPU 85A/90A	35 up to 45 ℃
TPU 95A for AMS	35 up to 45 ℃
ASA	90 up to 100 ℃
PVA	45 up to 60 ℃
PC/PC-CF	90 up to 110 ℃
PA/PA-CF/PAHT-CF	90 up to 110 ℃

Product Specification
Material	PEI powder coating + Stainless Steel Plate
Surface temperature resistance	up to 180 ℃
Flexible stainless steel plate thickness	0.4 mm
Textured PEI coating thickness	0.075 mm
Color	Gold

Extended Specifications

Features

Excellent first-layer adhesion, Improved durability

After optimizing the manufacturing process of the Bambu Texture PEI Plate, the durability of the plate is enhanced. Additionally, the adhesion between the prints and the plate is significantly improved, eliminating the need for adhesives.
*In some situations, glue is required for very specific filaments

Self-release when cooled down

PEI is an excellent material for 3D printing applications due to its ability to withstand the repeated heating and cooling cycles of a printer heatbed. Prints come off easily when the temperature of the heatbed reaches room temperature, and we always recommend waiting until it reaches 35℃ or lower. If the print is still adheres to the plate, simply bend the steel plate and the model will fall right into your hands.

Textured surface finish

Bambu Texture PEI Plate offers a one-of-a-kind first-layer surface. Through the application of a powder-coating process, this PEI Build Plate creates a rugged texture that adds a texture to your prints.

Compatibility with various filaments, especially for PLA

PEI enables printing with common materials such as PLA, TPU, PETG and PVA.
*Please apply liquid glue or a glue stick to prevent the sheet from tearing if print filament other than PLA

More Features
