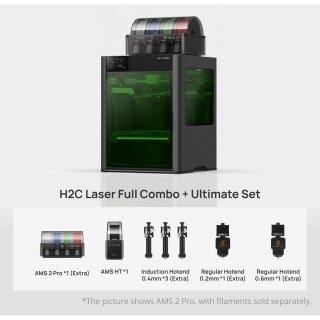

Bambu Lab H2C Laser Full Combo 40 W + Ultimate Set 3D Printer

Artno.: BL1-602377-S
HAN: PF003-N+SA007+SL002-EU+FAH066
Manufacturers: Bambu Lab

High-speed, multi-material 3D printer with Vortek Hotend system (up to 7 filaments), generous build volume, servo-driven extruder, full enclosure with multi-stage filtration, sensor network and cameras for monitoring, AMS automation for precise, reliable prints

Variante: 2.249 €H2C Combo (No Laser Version)

2.798 €H2C Combo (Laser version 10 W) Out of stock

3.349 €H2C Combo (Laser version 40 W) Out of stock

2.799 €H2C Combo + Ultimate Set (No Laser Version)

3.349 €H2C Combo + Ultimate Set (Laser version 10 W)

3.899 €H2C Combo + Ultimate Set (Laser version 40 W)

3.899,00 €

incl. 19% VAT

(3.276,47 € excl. VAT)

plus

Orderable
Delivery time: ca. 8 weeks (DE - int. shipments may differ)

The Bambu Lab H2C is a high-end, multi-material 3D printer engineered for creators who demand precision, speed, and versatility. Built around Bambu's innovative Vortek hotend-swapping system, the H2C enables fast, waste-free multi-color and multi-material printing with industrial-grade reliability. Its servo-driven extrusion, heated chamber, and intelligent sensor network make it ideal for engineering applications, detailed prototypes, and production-ready parts—bringing professional performance to the desktop.

Key Features

Vortek hotend-swapping system for fast, automated nozzle changes with very little purge waste.
Multi-material and multi-color support, allowing several hotends to stay loaded and ready to print.
High-performance PMSM servo extrusion with up to 10 kg of force for demanding materials.
Heated chamber (up to ~ 65 °C) that improves layer adhesion and overall print quality.
Wide material compatibility, from common PLA and PETG to carbon-fiber composites and engineering filaments.
High speed and precision with motion control and vision-based encoders reaching up to 1000 mm/s.
Smart monitoring through multiple cameras, over 50 sensors, and automated calibration tools.
Generous build volume suitable for larger prototypes and complex multi-material projects.

Model Overview

		H2C AMS Combo
H2C
H2C Laser Edition
Printing Technology		Fused Deposition Modeling
Body	Build Volume (W x D x H)	Single Nozzle Printing: 325 x 320 x 320 mm³ (Left) Single Nozzle Printing: 305 x 320 x 325 mm³ (Right) Dual Nozzle Printing: 300 x 320 x 325 mm³ Total Volume for Two Nozzles: 330 x 320 x 325 mm³
	Chassis	Aluminum and Steel
	Outer Frame	Plastic and Glass

		H2C AMS Combo
Physical Dimensions	(W x D x H)	492 x 514 x 626 mm³
Physical Dimensions	Net Weight	32.5 kg
Toolhead	Extruder Gear	Hardened Steel
	Nozzle	Hardened Steel
	Max Nozzle Temperature	350 °C
	Supported Nozzle Diameter	0.2 mm, 0.4 mm, 0.6 mm, 0.8 mm
	Filament Cutter	Built-in
	Filament Diameter	1.75 mm
	Extruder Motor	Bambu Lab High-precision Permanent Magnet Synchronous Motor
Heatbed	Build Plate Material	Flexible Steel Plate
Heatbed	Included Build Plate Type	Textured PEI Plate
Speed	Max Speed of Toolhead	1000 mm/s
	Max Acceleration of Toolhead	20.000 mm/s²
	Max Flow for Hotend	40 mm³/s (Test parameters: 250 mm round model with a single outer wall; Bambu Lab ABS; 280 °C printing temperature)
Chamber Temperature Control	Active Chamber Heating	Supported
Chamber Temperature Control	Max Temperature	65 °C
Air Purification	Pre-filter Grade	G3
	HEPA Filter Grade	H12
	Activated Carbon Filter Type	Granulated Coconut Shell
	VOC Filtration	Superior
Filtration	Particulate Matter Filtration	Supported
Filtration	Supported Filament Type	PLA, PETG, TPU, PVA, BVOH, ABS, ASA, PC, PA, PET, PPS; Carbon/Glass Fiber Reinforced PLA, PETG, PA, PET, PC, ABS, ASA, PPA, PPS
Cooling	Part Cooling Fan	Closed Loop Control
	Cooling Fan for Hotend	Closed Loop Control
	Main Control Board Fan	Closed Loop Control
	Chamber Exhaust Fan	Closed Loop Control
	Chamber Heat Circulation Fan	Closed Loop Control
	Auxiliary Part Cooling Fan	Closed Loop Control
	Toolhead Enhanced Cooling Fan	Closed Loop Control
Sensor	Live View Camera	Built-in; 1920*1080
	Nozzle Camera	Built-in; 1920*1080
	BirdsEye Camera	Built-in; 3264*2448 (Equipped with Laser Edition)
	Toolhead Camera	Built-in; 1600*1200
	Door Sensor	Supported
	Filament Run Out Sensor	Supported
	Filament Tangle Sensor	Supported
	Filament Odometry	Supported with AMS
	Power Loss Recovery	Supported
Electrical Requirements	Voltage	100-120 VAC / 200-240 VAC, 50/60 Hz
	Max Power*	1800 W@220 V/1250 W@110 V
	Typical Power	200 W@220 V/200 W@110 V (Single Nozzle Printing PLA)
Working Temperature		10 °C-30 °C
Electronics	Touchscreen	5-inch 720*1280 Touchscreen
	Storage	Built-in 8 GB EMMC and USB Port
	Control Interface	Touchscreen, mobile App, PC App
	Motion Controller	Dual-core Cortex-M4 and Single-core Cortex-M7
	Application Processor	Quad-core ARM with NPU
Neural Processing Unit		2 TOPS
Software	Slicer	Bambu Studio Supports third-party slicers which export standard G-code, such as Super Slicer, PrusaSlicer and Cura, but certain advanced features may not be supported.
Software	Supported Operating System	MacOS, Windows, Linux
Network Control	Ethernet	Not Available
	Wireless Network	Wi-Fi
	Network Kill Switch	Not Available
	Removable Network Module	Not Available
	802.1X Network Access Control	Not Available
Wi-Fi	Operating Frequency	2412 - 2472 MHz, 5150 - 5850 MHz (FCC/CE) 2400 - 2483.5 MHz, 5150 - 5850 MHz (SRRC)
	Wi-Fi Transmitter Power (EIRP)	2.4 GHz: ≤23 dBm (FCC); ≤20 dBm (CE/SRRC/MIC) 5 GHz Band1/2: ≤23 dBm (FCC/CE/SRRC/MIC) 5 GHz Band3: ≤30 dBm (CE); ≤24 dBm (FCC) 5 GHz Band4: ≤23 dBm (FCC/SRRC); ≤14 dBm (CE)
	Wi-Fi Protocol	IEEE 802.11 a/b/g/n

Extended Specifications

Package Contents

	H2C AMS Combo	H2C Laser Full Combo
H2C	1
H2C Laser Edition		1
Build Plate	1	1
Spool Holder	1	1

Package Contents	H2C AMS Combo	H2C Laser Full Combo	Ultimate Set
0.4mm Induction Hotend	4	4	3
0.2mm Induction Hotend	1	1
0.6mm Induction Hotend	1	1
0.4mm Hardened Steel Hotend	2	2
0.2mm Stainless Steel Hotend			1
0.6mm Hardened Steel Hotend			1
4-in-1 PTFE Adapter II	1	1
Accessory Box	1	1
AMS 2 Pro	1	1	1
AMS HT			1
10W Laser Module		depending on option
40W Laser Module		depending on option
Cutting Module (with Pen holder)		1
Laser Platform		1
Cutting Platform		1
Emergency Stop Button		1

Extended Specifications
