Flexible Industrial Automation – Easily Integrated

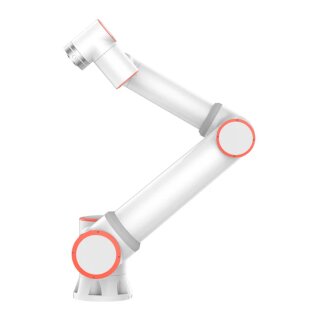

The FAIRINO FR3 is a powerful collaborative 6-axis robot arm designed specifically for high flexibility and easy operation.
A key advantage of this cobot is its attractive price-performance ratio: It delivers comparable performance to many competitor models,
but is significantly more cost-effective.
With 3 kg payload, 622 mm reach and a repeatability of ±0.02 mm, it automates assembly, handling and inspection processes precisely and reliably – without complex robotics integration.
Thanks to intuitive web programming as well as open interfaces for Python, C#, C++, ROS and industrial field buses, the FR3 can be seamlessly integrated into existing production environments.
The quiet operation, compact design and IP54/IP65 protection enable safe use directly next to humans.
This makes the FAIRINO FR3 COBOT ideal for integrators, research institutions and flexible production lines.
- Quick entry into robotics & automation
- Programming via web interface or Python / C# / C++ / ROS / ROS2
- Industry-ready with IP54/IP65 & fieldbus support
- Compact, quiet and ready to use immediately
Ideal for: Pick & Place • Assembly • Machine loading • Quality inspection • Lab automation
Features
Efficient Automation without Integration Effort
The FAIRINO FR3 was developed to make industrial automation accessible.
As a collaborative 6-axis robot, it combines high precision with easy commissioning and is suitable for both first robotics projects and scalable production solutions.
Companies can quickly automate manual processes without complex safety cells or long integration times.
Thanks to its compact design and low weight, the cobot can be flexibly used at workstations, machines or mobile platforms.
Typical applications are Pick & Place, machine loading, quality inspection, gluing processes as well as precise assembly tasks.
Easy Programming & Open Integration
Setup is done via an intuitive web interface, allowing users without robotics knowledge to work productively quickly.
For integrators and developers, additional open programming interfaces are available, including Python, C#, C++, ROS as well as industrial communication protocols such as TCP/IP, Modbus TCP/RTU and optional fieldbus systems.
Through support for modern real-time communication, the FAIRINO FR3 can be easily integrated into existing automation systems, MES systems or individual software solutions.
Industry-Ready Design for Daily Use
- Collaborative operation for flexible work environments
- Quiet operation (< 65 dB) for lab and production areas
- IP54/IP65 protection for industrial environments
- Compact design with only 15 kg weight
- High repeatability of ±0.02 mm
The FR3 can be configured quickly and easily via a user-friendly web interface – without any programming knowledge.
For more demanding applications, programming languages such as Python, C# and C++ are also available.
This makes the FR3 suitable for a wide range of applications, for example in assembly, handling or welding.
Specifications
- Payload: 3 kg
- Reach: 622 mm
- Repeatability: ± 0.02 mm
- Degrees of Freedom: 6
- Max Joint Speed: 180°/s
- Max TCP Speed: 1 m/s
- Protection Class: IP54 / IP65
- Noise Level: <65 dB
- I/O Ports Controller (DI, DO, AI, AO): 16, 16, 2, 2
- I/O Ports Cobot Head (DI, DO, AI, AO): 2, 2, 1, 1
- Communication: I/O, TCP/IP, Modbus TCP/RTU, Profinet, Ethernet/IP, CC-Link, EtherCAT (coming soon)
- Footprint: 128 mm
- Weight: 15 kg
- Operating Temperature: 0-45 °C
- Operating Humidity: up to 90 % RH
- Materials: Aluminum, Steel
Contents
- Fairino FR3 Cobot
- Control Box
- Safety Box
- EU Power Cable
Model Overview
Die passende Cobot-Größe für jede Anwendung!
Die FAIRINO Cobot-Serie deckt ein breites Anwendungsspektrum ab.
Von kompakten Präzisionsaufgaben bis hin zu anspruchsvollen Handlingprozessen mit hoher Traglast.
Die folgende Übersicht hilft bei der Auswahl des optimalen Modells.
| Model |
|
FR3-WML |
FR3-WMS |
FR3-C |
FR3 |
FR5 |
FR10 |
FR16 |
FR20 |
FR30 |
| Repeatability |
|
± 0.05 mm |
± 0.02 mm |
± 0.05 mm |
± 0.02 mm |
± 0.05 mm |
± 0.03 mm |
± 0.01 mm |
| Weight |
|
11 kg |
10.5 kg |
10 kg |
15 kg |
22 kg |
40 kg |
85 kg |
| Footprint |
|
128 mm |
125 mm |
128 mm |
149 mm |
190 mm |
240 mm |
| TCP Speed |
typ. |
1 m/s |
1.5 m/s |
2 m/s |
| J1 |
|
-175°C to 175°C |
| J2 |
|
-265°C to 85°C |
| J3 |
|
-150°C to 150°C |
-160°C to 160°C |
| J4 |
|
-85°C to 265°C |
| J5 |
|
-175°C to 175°C |
| J6 |
|
-360°C to 360°C |
-175°C to 175°C |
| Tool I/O Ports |
(DI, DO, AI, AO) |
(2, 2, 1, 1) |
| Tool I/O power supply |
Voltage |
N/A |
24V |
| Current |
N/A |
1.5A |
| Communication |
|
I/O, TCP/IP, Modbus TCP/RTU, Profinet, Ethernet/IP, CC-Link, EtherCAT (coming soon) |
| Noise |
|
< 65 dB |
| IP Protection Class |
|
IP54 (IP65 Optional) |
| Operating Temperature |
max. |
0°C - 45°C |
| Operating humidity |
(non-condensing) |
90% RH |
N/A |
90% RH |
| Materials |
|
Aluminium, Steel |
Extended Specifications
