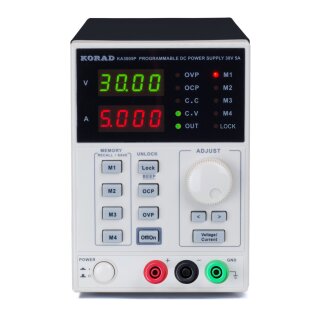

Korad KA3005P+ Benchtop Power Supply (110V US Version)

Korad KA3005P+ Benchtop Power Supply (110V US Version)

(2 Reviews)

Artno.: KR1-230069
HAN: KA3005P+ (US)
Manufacturers: Korad

Programmable Benchtop Power Supply, 1 channel (30V/5A), 150W, 10mV/1mA resolution, USB / RS232 interface

Variant: 109 €KA3005P (Screw Terminals) Out of stock

119 €KA3005P+ (Screw Terminals) Out of stock

119 €KA3005P+ (Safety Terminals) Out of stock

119 €KA3005P+ (US)

119,00 €

incl. 19% VAT

(100,00 € excl. VAT)

On stock
Delivery time: 1 - 3 business days (DE - int. shipments may differ)

Description
Product Reviews

KORAD introduces the KA series, a line of digital control and programmable regulated DC power supplies boasting industrial-grade performance. These power supplies feature comprehensive digital control, encoder-driven voltage and current adjustment, and rapid recall capabilities. They can be configured for overvoltage and overcurrent protection and come equipped with an intelligent temperature-controlled fan. Above all, the meticulous circuit design and tidy internal construction ensure the stability and reliability of the machine. The product range includes compact and portable single DC power supplies, as well as dual DC power supplies with a voltage range of 30V up to 100V and a current range of 2A up to 10A.

Models	KA3005	KA3010	KA6005
Voltage Range	0 - 30 V	0 - 30 V	0 - 60 V
Current Range	0 - 5 A	0 - 10 A	0 - 5 A
Load Regulation	≤ 0.01 % + 2 mV	≤ 0.01 % + 3 mV	≤ 0.01 % + 2 mV
Load Regulation	≤ 0.1 % + 10 mA	≤ 0.1 % + 20 mA	≤ 0.1 % + 10 mA
Line Regulation	≤ 0.01 % + 3 mV	≤ 0.01 % + 3 mV	≤ 0.01 % + 3 mV
Line Regulation	≤ 0.1 % + 3 mA	≤ 0.1 % + 3 mA	≤ 0.1 % + 3 mA
Setup Resolution	10 mV	10 mV	10 mV
Setup Resolution	1 mA	1 mA	1 mA
Setup Accuracy (25°C ± 5°C)	≤ 0.5 % + 20 mV	≤ 0.5 % + 20 mV	≤ 0.5 % + 30 mV
Setup Accuracy (25°C ± 5°C)	≤ 0.5 % + 10 mA	≤ 0.5 % + 20 mA	≤ 0.5 % + 5 mA
Ripple(20 - 20M)	≤ 2mVrms	≤ 2mVrms	≤ 1mVrms
Ripple(20 - 20M)	≤ 3mArms	≤ 5mArms	≤ 3mArms
Temp. Coefficient	≤ 150 ppm	≤ 150 ppm	≤ 150 ppm
Read Back Resolution	10 mV	10 mV	10 mV
Read Back Resolution	1 mA	1 mA	1 mA
Read Back Temp. Coefficient	≤ 150 ppm	≤ 150 ppm	≤ 150 ppm
Reaction Time	≤ 100 mS	≤ 100 mS	≤ 100 mS

Variations & Editions

Variatiants
Variant	P	P+
Programable	Yes
Interfaces	USB/RS232
Editions
Housing Color Front/Case	Grey/Grey	Grey/Black
Display:	single color LED Display(red)	two color LED Display(green/red)
Terminals
Terminal	(Sc) Screw Terminals	(Sc) Screw Terminals or (Sa) Safety Terminals

Example

KA3305P+(Sa):

Programmable Benchtop Power Supply with USB/RS232 connectors, 230V AC
Housing color (Front/Case): Grey/Black and a two color LED Display(green/red)
Safety Terminals

Shipping weight:	4,90 kg

Average item rating

All reviews:

How do reviews work?

Total entries: 2

Fast shipping and good value for the money
This kind of PSUs I encountered even in automotive embedded engineering offices. Theyve been out there and used for quite some while. Are still popular for a reason.
Personally, I was thinking about getting the KA3010P+(30V 10A version) but the price was a bit too high for a single output PSU.

Bita C , 03.12.2022 Verified purchase

Super Labornetzteil
Hab mir das Labornetzteil gekauft weil es in den Elektronikerforen oft gelobt wird. Als Modding war in den Elektronikerforen angegeben das man den Lüfter mit der Luftrichtung nach außen drehen soll und einen Thermoregler einbauen kann.
Mein geliefertes Modell hat das aber alles schon ab Werk anscheinend wurde Modellpflege betrieben. Jetzt muss es noch noch lange halten.

Thomas F , 13.02.2025 Verified purchase
