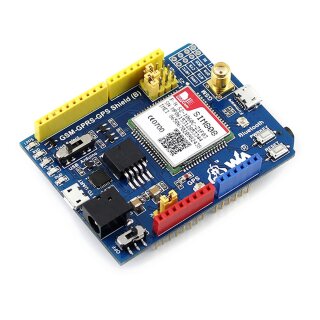

Waveshare 11492 GSM/GPRS/GPS Shield (B) (EU)
Artno.: WS1-011492
GSM/GPRS/GPS Shield (B), Arduino Shield Based on SIM808, Comes with US plug power adapter
Variante
49.90 € incl. 19% VAT
41.93 € excl. VAT
10+ On stock

Shipping time: 1 - 3 business days

Description

Prohibited by the module manufacturer SIMCOM, we're not allowed to ship this product, or to provide any tech support, to the following countries/regions: Iran, North Korea, Cuba, Sudan, Syrian.

GSM/GPRS/GPS Shield (B) is an Arduino shield based on the Quad-band GSM/GPRS/GPS module SIM808.

Features

General

  • Arduino connectivity, compatible with UNO, Leonardo, NUCLEO, XNUCLEO
  • Onboard USB TO UART converter CP2102 for UART debugging
  • 5 x LEDs for indicating the module working status
  • Onboard voltage level converter, supports both 3.3V and 5V systems
  • SIM card slot for 1.8V/3V SIM card
  • Baudrate auto detection (1200bps ~115200bps)
  • Bluetooth 3.0, supports data transferring through Bluetooth
  • RTC with power supply interface
  • Firmware upgradable via USB
  • Control via AT commands (3GPP TS 27.007,27.005, and SIMCOM enhanced AT Commands)
  • Supports SIM application toolkit: GSM 11.14 Release 99
  • Operating voltage: 6 ~ 12V
  • Operation temperature: -40 °C ~ +85 °C
  • Storage temperature: -45 °C ~ +90 °C

GSM/GPRS

  • Band
    • GSM 850/EGSM 900/DCS 1800/PCS 1900 MHz
    • Quad-band auto search
    • Compliant to GSM phase 2/2+
  • Emitting power
    • Class 4 (2W @ GSM 850/EGSM 900 MHz)
    • Class 1 (1W @ DCS 1800/PCS 1900 MHz)
  • GPRS connectivity
    • GPRS multi-slot class 12 (default)
    • GPRS multi-slot class 1~12 (configurable)
  • GPRS data feature
    • Downlink speed: max 85.6kbps
    • Uplink speed: max 85.6kbps
    • Coding schemes: CS-1\CS-2\CS-3\CS-4
    • Supports PAP (Password Authentication Protocol) for PPP connection
    • Embedded TCP/IP protocol
    • Supports PBCCH
    • Supports CSD transmission speed: 2.4/4.8/9.6/14.4 kbps
    • Supports USSD
  • SMS
    • Supports: MT/MO/CB/Text/PDU mode
    • SMS storage: SIM card
  • Audio
    • Voice encode/decode mode: Half Rate\Full Rate\Enhanced Full Rate\Adaptive muti rate
    • Supports echo cancellation
    • Supports noise reduction

GPS

  • Receiver type
    • 22 tracking channels
    • 66 acquisition channels
    • GPS L1 C/A code
  • Sensitivity
    • Tracking: -165 dBm
    • Cold starts : -148 dBm
  • Time-To-First-Fix
    • Cold starts : 30s (typ.)
    • Hot starts : < 1s
    • Warm starts: 28s
  • Accuracy
    • Horizontal position : <2.5m CEP

What's on Board

Phone Shield SIM808 on board resource
  1. SIM808 module
  2. MIC29302 power chip
  3. CP2102: USB TO UART converter
  4. SMF05C: TVS diode
  5. 1N5408: onboard rectifier
  6. SIM808 functional pins
  7. Arduino expansion connector
  8. USB TO UART interface
  9. DC power jack
  10. GPS antenna connector
  11. Bluetooth antenna connector
  12. Firmware upgrade interface
  13. GSM antenna connector
  14. SIM card slot
  15. 3.5mm earphone/mic jack
  16. GPS status indicator
  17. CP2102 UART Tx/Rx indicator
  18. NET indicator:
    • flashes fast when the module starts up
    • flashes slowly after GSM register succeed
  19. Power indicator
  20. Power switch
  21. SIM808 control button: press the button and hold for 1s, to startup/shutdown the SIM808
  22. Reset button
  23. UART selection switch,select controlling the SIM808 via:
    • CP2102
    • UART pins of Arduino interface
  24. SIM808 UART configuration:
    • SIM_TX: SIM808 UART TX
    • SIM_RX: SIM808 UART RX
  25. IOREF power selection: configure the UART voltage level

Photos

Note: the UNO PLUS in the photo is NOT included.

Dimension

Development Resources

Wiki : www.waveshare.com/wiki/GSM/GPRS/GPS_Shield_(B)

Package Contents

For the power adapter, different types of plugs are available, please select the one compatible with your outlet: US,EU

  1. GSM/GPRS/GPS Shield (B) x1
  2. GSM Antenna x1
  3. GPS External Antenna (B) x1
  4. Bluetooth Antenna x1
  5. Power adapter US standard x1
  6. USB type A plug to micro plug cable x1
1
2
3
4
5
6
