Digilent Analog Discovery 2
Artno.: DL1-410321
Portable oscilloscope with USB/Ethernet interface, 2 channels, bandwidth 30 MHz, sample rate 100 MS/s, resolution 14 Bit, 16 digital I/O

469.00 € incl. 19% VAT
394.12 € excl. VAT
On stock

Shipping time: 1 - 3 business days

Description

What is the Analog Discovery 2?

Digilent Analog Discovery 2 is a USB oscilloscope, logic analyzer, and multi-function instrument that allows users to measure, visualize, generate, record, and control mixed-signal circuits of all kinds.

Developed in conjunction with Analog Devices and supported by Xilinx University Program.

This test and measurement device is small enough to fit in your pocket, but powerful enough to replace a stack of lab equipment, providing engineering professionals, students, hobbyists.

And electronic enthusiasts the freedom to work with analog and digital circuits in virtually any environment, in or out of the lab. The analog and digital inputs and outputs can be connected to a circuit using simple wire probes; alternatively, the Analog Discovery BNC Adapter and BNC probes can be used to connect and utilize the inputs and outputs.

Driven by the free WaveForms software (Mac, Linux, and Windows compatible) software, Analog Discovery 2 can be configured to work as any one of several traditional test and measurement instruments including an Oscilloscope, Waveform Generator, Power Supply, Voltmeter, Data Logger, Logic Analyzer, Pattern Generator, Static I/O, Spectrum Analyzer, Network Analyzer, Impedance Analyzer, and Protocol Analyzer.

USB Oscilloscope

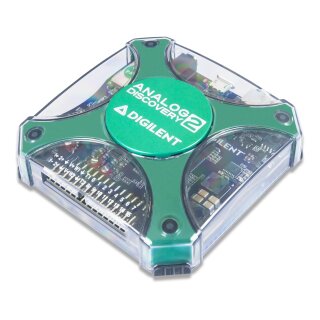

Analog Discovery 2 among compatible add-on boardsThe Analog Discovery 2 is designed to be a portable alternative to a stack of benchtop equipment.

It's durable enclosure measures (3.23 inch x 3.25 inch x7/8inch) and fits in a pocket. The Analog Discovery can be connected to circuits and designs via the included female flywires, or used in conjunction with the included gender changers when a male connection is necessary.

Accessories can be purchased separately to provide additional functionality, such as the BNC Adapter for higher bandwidth and BNC connectors, or the Breadboard Adapter and Breadboard Breakout for a direct connection to the breadboard, or the Impedance Analyzer for additional Impedance measurement functionality.

The Analog Discovery 2 comes packaged in a durable project box that will fit all the included accessories and some additional adapter boards. The project box measures (7" x 5.75" x 1.5") and provides even more durability when stashing your portable Oscilloscope and multi-function instrument in your backpack or briefcase.

For improved Power Supplies, integrated BNC connectors and a replaceable breadboardable interface check out the Analog Discovery Studio.

Pro Bundle

Start verifying and testing a wide range of projects with the Analog Discovery 2.With the addition of the BNC adapter and scope probes, professional or experienced engineers can access the full 30MHz bandwidth oscilloscope and 12MHz bandwidth waveform generator.

Included

Digilent Analog Discovery 2:

  • Analog Discovery 2
  • 1x regular-sized project box
  • 1x USB A to micro B programming cable
  • 1x 2x15 flywire signal cable assembly
  • 5x of 6-pin male headers
  • 1x ferrite cable snap-on
  • 30-pin flywire labels

Digilent Analog Discovery 2 Pro Bundle:

  • 1x BNC Adapter Board for the Analog Discovery
  • 2x BNC Oscillosope x1/x10 Probes
  • 6x Mini Grabber Test Clips
  • 1x Analog Discovery 2 and the following:
    • 1x regular sized project box(without sticker sheet)
    • 1x USB A to micro B programming cable
    • 1x 2x15 flywire signal cable assembly
    • 5x 6-pin male headers
    • 1x ferrite cable snap-on

    Note: The Analog Discovery BNC adapter board does not have differential analog (scope) inputs.


Shipping weight: 0.35 Kg
