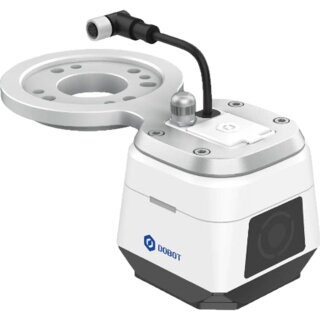

Dobot VX500 2.5D Industrial Camera
The Dobot VX500 is a flexible 2.5D industrial vision camera designed for direct mounting on collaborative and industrial robots. As a fully plug-and-play solution within the Dobot ecosystem, it enables fast deployment without complex external vision system integration.
With a 5MP image resolution and a working distance of 180–400 mm, the VX500 provides reliable visual feedback for a wide range of automation tasks. It is capable of detecting X/Y positions and estimating object height, making it suitable for applications that require both planar and depth-related information.
Key Capabilities
2.5D vision system for robotic applications
5MP high-resolution imaging
Working distance: 180–400 mm
X/Y position detection and height measurement
Barcode scanning and text recognition (OCR)
Object dimension measurement (width and diameter)
Direct mounting on Dobot robotic systems
Plug-and-play integration for fast setup
Typical Applications
Logistics and warehouse automation
Machine loading and unloading
Pick-and-place operations
Quality inspection and dimensional verification
Barcode tracking and identification workflows
Assembly assistance and part detection
Smart Vision for Flexible Automation
The VX500 is designed to simplify robotic vision tasks by combining multiple inspection and detection functions in a single device. It supports both positional guidance and object recognition, reducing the need for additional sensors or external vision systems.
Its ability to measure object dimensions and detect spatial positioning makes it especially useful in dynamic production environments where parts vary in size or orientation.
Easy Integration and Operation
As part of the Dobot ecosystem, the VX500 is designed for seamless integration with Dobot robots. Setup is handled through an intuitive, guided user interface, allowing operators to quickly configure vision tasks without advanced programming knowledge.
This simplifies deployment in industrial environments and enables rapid adaptation to new production requirements.
Technical Specifications
Camera Type |
2.5D Industrial Vision Camera |
Image Resolution |
5MP |
Working Distance |
180–400 mm |
Weight |
0.5 kg |
Functions |
X/Y positioning, height detection, barcode scanning, OCR, dimensional measurement |
Integration |
Direct robot mounting (Dobot compatible) |
Programming |
Guided user interface (no-code / low-code setup) |
The Dobot VX500 provides a compact and powerful vision solution for modern robotic automation, combining measurement, recognition, and positioning in a single plug-and-play device.
