Large Reach for Flexible Industrial Automation

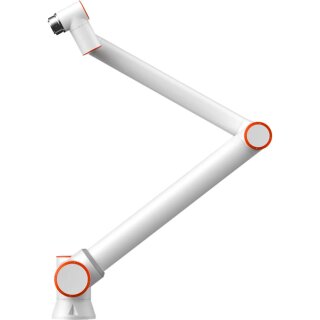

The FAIRINO FR5-WML is a powerful collaborative 6-axis robotic arm designed for applications requiring a large reach and comparatively low payload. It combines an attractive cost-performance ratio with flexible deployment options in industrial automation.
With a payload capacity of 5 kg, a reach of 1,900 mm, and a repeatability of ±0.1 mm, the FR5-WML is particularly suited for welding, pick & place, and handling processes that require a large working area.
Programming is carried out through an intuitive web interface. For more complex tasks, additional programming interfaces and languages such as Python, C#, and C++ are available. Thanks to industrial communication interfaces, the cobot can be flexibly integrated into existing automation systems.
- Large reach of 1,900 mm with a payload of 5 kg
- 6-axis robotic arm with extended motion range of the sixth axis from ±360°
- Easy programming via web interface or with Python, C#, and C++
- IP54 protection for industrial environments
- Support for common industrial communication protocols
Ideal for: Welding • Pick & Place • Handling • Machine Feeding • Automation with Large Reach
Features
Large Working Area for Versatile Applications
The FAIRINO FR5-WML is designed for automation tasks that require a large working area. With its reach of 1,900 mm, it can access widely spaced positions, making it suitable for large-area workspaces, welding applications, and flexible handling processes.
The payload capacity is 5 kg with a maximum rated load of 7 kg. The repeatability of ±0.1 mm enables reproducible movements for numerous industrial applications.
Extended Motion Range for Welding Applications
The sixth axis of the FR5-WML offers a motion range from +360° to −360°. This freedom of movement particularly facilitates the processing of pipes and other round workpieces, for example in welding applications where the robot must follow the contour of the workpiece.
Easy Programming and Industrial Integration
The cobot can be programmed through an intuitive web interface. For more complex automation tasks, developers can use Python, C#, and C++. The FR5-WML can be integrated into different automation environments via interfaces such as TCP/IP, Modbus TCP/RTU, Profinet, and Ethernet/IP. Additional supported interfaces include CC-Link and EtherCAT (announced).
Designed for Industrial Use
- IP54 protection class for use in suitable industrial environments
- Six degrees of freedom for flexible movements
- Maximum TCP speed of 2 m/s
- Maximum angular speed of 180°/s
- Noise level below 65 dB
- Flexible connection of tools and peripherals via I/O interfaces
Specifications
- Model: FAIRINO FR5-WML
- Payload: 5 kg (max. 7 kg)
- Reach: 1,900 mm
- Repeatability: ±0.1 mm
- Degrees of Freedom: 6
- Motion range axis 6: +360° to −360°
- Maximum angular speed: 180°/s
- Maximum TCP speed: 2 m/s
- Protection class: IP54
- Noise level: <65 dB
- I/O ports controller (DI, DO, AI, AO): 16, 16, 2, 2
- I/O ports on cobot head (DI, DO, AI, AO): 2, 2, 1, 1
- Communication: I/O, TCP/IP, Modbus TCP/RTU, Profinet, Ethernet/IP, CC-Link, EtherCAT (coming soon)
- Base area: 190 mm
- Weight: 45 kg
- Average power consumption: 270 W
- Peak power consumption: 620 W
- Operating temperature: 0–45 °C
- Operating humidity: up to 90 % relative humidity
- Materials: Aluminum, Steel
- Robot main cable length: 4 m (11 m extension available)
- Safety box cable length: 5 m
- AC mains cable length: 4 m
- Controller input voltage: 100–240 V AC (optional 48 V DC)
Scope of Delivery
- FAIRINO FR5-WML Cobot
- Control Box
- Safety Box
- AC Mains Cable
Model Overview
The appropriate cobot size for every application!
The FAIRINO Cobot series covers a wide range of applications.
From compact precision tasks to demanding handling processes with high payload.
The following overview assists in selecting the optimal model.
| Model |
|
FR3-WML |
FR3-WMS |
FR3-C |
FR3 |
FR5 |
FR10 |
FR16 |
FR20 |
FR30 |
| Repeatability |
|
± 0.05 mm |
± 0.02 mm |
± 0.05 mm |
± 0.02 mm |
± 0.05 mm |
± 0.03 mm |
± 0.01 mm |
| Weight |
|
11 kg |
10.5 kg |
10 kg |
15 kg |
22 kg |
40 kg |
85 kg |
| Base Area |
|
128 mm |
125 mm |
128 mm |
149 mm |
190 mm |
240 mm |
| TCP Speed |
typ. |
1 m/s |
1.5 m/s |
2 m/s |
| J1 |
|
-175°C to 175°C |
| J2 |
|
-265°C to 85°C |
| J3 |
|
-150°C to 150°C |
-160°C to 160°C |
| J4 |
|
-85°C to 265°C |
| J5 |
|
-175°C to 175°C |
| J6 |
|
-360°C to 360°C |
-175°C to 175°C |
| Tool I/O Connections |
(DI, DO, AI, AO) |
(2, 2, 1, 1) |
| Tool I/O Power Supply |
Voltage |
N/A |
24V |
| Current |
N/A |
1.5A |
| Communication |
|
I/O, TCP/IP, Modbus TCP/RTU, Profinet, Ethernet/IP, CC-Link, EtherCAT (coming soon) |
| Noise |
|
< 65 dB |
| IP Protection Class |
|
IP54 (IP65 Optional) |
| Operating Temperature |
max. |
0°C - 45°C |
| Operating Humidity |
(non-condensing) |
90%rF |
N/A |
90%rF |
| Materials |
|
Aluminum, Steel |
Extended Specifications
Support
As the official German distributor of Fairino, we support you from the first contact until the successful integration of your cobot. Utilize our support overview, training academy, expert support, and integration services.
