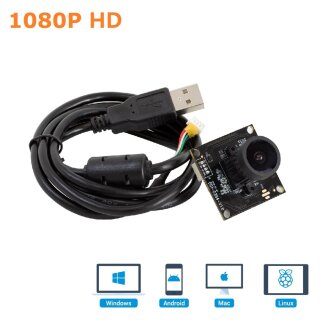

The B0203 is a new member of the Arducam's USB camera family. It's a 2MP, UVC compliant, wide angle, wide dynamic range (WDR), based on the 1/2.7" AR0230 image sensor, USB 2.0 camera.
Specifications
Camera
- Sensor: 1/2.7" AR0230
- Resolution: 2MP 1928H x 1080V
- Data Format: MJPG/YUY2/H.264
- Frame Rate: H.264 25fps@1920 x 1080; MJPG 25fps@1920 x 1080; YUY2 25fps@640 x 360
- Dynamic Range: Max 96dB
Lens
- Field of View (FOV): D= 100°
- Lens Mount: M12
- Focusing Range: 3.3ft (1M) to infinity
- IR Sensitivity: Integral IR filter, visible light only
Functionality and Compatibility
- Auto Controlled Features: Saturation, Contrast, Acutance, White balance, Exposure.
- System Compatibility: Windows, Linux, Mac and Android with UVC
- Serial Number: Supports modifying the Serial Number.
Power
- Power Supply: DC 5V
- Working Current: MAX 300mA
Physical
- Operating Temp.: -4°F~158°F (-20°C~+70°C).
- Dimension: 32mmx32mm
- Cable Length: 3.3ft (1M)
Note
The FOV of B0203+LN055 is not entirely correct as the chart describes. The size ratio of the camera is 2:1, but the FoV in the above blank is based on the size of 4:3.
User Guide
How to modify the serial number
