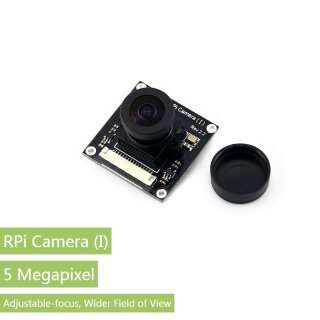

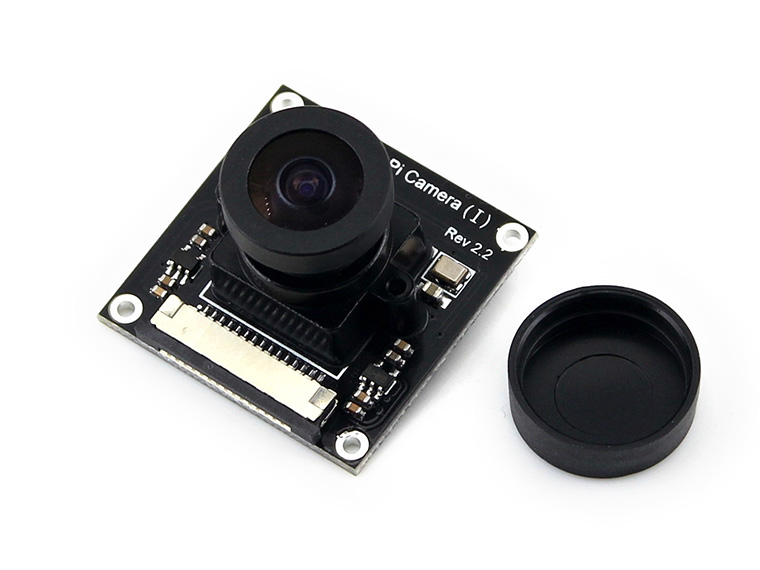

Waveshare 11388 RPi Camera (I)
Artnr.: WS2-011388
Raspberry Pi Kameramodul, Fisheye-Objektiv, größeres Sichtfeld

28,90 € inkl. 19% MwSt.
24,29 € exkl. MwSt.

zzgl. Versand

10+ ab Lager lieferbar

Lieferzeit: 1 - 3 Arbeitstage

Beschreibung

Features

  • Raspberry Pi Camera, supports all revisions of the Pi
  • Fisheye Lens, offers wider field of view
  • 5 megapixel OV5647 sensor
  • Adjustable focus distance
  • Camera specifications
    • CCD size : 1/4inch
    • Aperture (F) : 1.8
    • Focal Length : 1.55mm
    • Angle of View (diagonal) : 170 degree (while other normal cameras are typically 72 degree)
    • Sensor best resolution : 1080p
  • 2592 × 1944 still picture resolution
  • Support 1080p30, 720p60 and 640x480p60/90 video record
  • Dimension: 32mm × 32mm

Development Resources

Wiki : www.waveshare.com/wiki/RPi_Camera_(I)

Selection Guide

Partnumber Pixels Sensor Adjustable Focus Distance Infrared Night Vision Angle of View (diagonal) (degree) Manufacturer Dimensions (mm) Recommendation1
RPi Camera V2 8 Mega IMX219 × × 62.2 element14 25x24x9 ★★★☆
RPi NoIR Camera V2 8 Mega IMX219 × 62.2 element14 25x24x9 ★★★☆
RPi Camera (B) 5 Mega OV5647 × 60.6 Waveshare 32x32 ★★★
RPi Camera (D) 5 Mega OV5647 × × 66 Waveshare 25x24x9 ★★
RPi Camera (E) 5 Mega OV5647 × 69.1 Waveshare 25x24x6 ★★
RPi Camera (F) 5 Mega OV5647 75 Waveshare 25x24 ★★★★
RPi Camera (G) 5 Mega OV5647 × 160 Waveshare 25x24 ★★★★
RPi Camera (H) 5 Mega OV5647 160 Waveshare 25x24 ★★★★
RPi Camera (I) 5 Mega OV5647 × 170 Waveshare 32x32 ★★★
RPi Camera (M) 5 Mega OV5647 × 200 Waveshare 25x24 ★★★☆
RPi IR-CUT Camera2 5 Mega OV5647 75.7 Waveshare 31x32 ★★★★
RPi IR-CUT Camera (B)2 5 Mega OV5647 40 Waveshare 31x32 ★★★★
RPi Zero V1.3 Camera3 5 Mega OV5647 × × 69.1 Waveshare 60x11.5x5 ★★★
RPi FPC Camera 5 Mega OV5647 × × 72 Waveshare 300x16x5 ★★★
  1. The recommendation is considered from sales report and cost performance.
  2. While normal IR cameras will take curious reddish pictures by daylight for lacking of IR filter in the CCD, the RPi IR-CUT Camera can take better pictures in correct color by daylight, and still features the ability to see in the dark.
  3. RPi Zero V1.3 Camera supports only Raspberry Pi Zero V1.3,Raspberry Pi Zero W, and Raspberry Pi Zero WH

Package Contents

The included FFC is 15cm, if you need a longer cable, please consider: RPi Camera Cable 60cm

  1. RPi Camera (I) x1
  2. 15-pin FFC (opposite sides contact) x1
1
2
