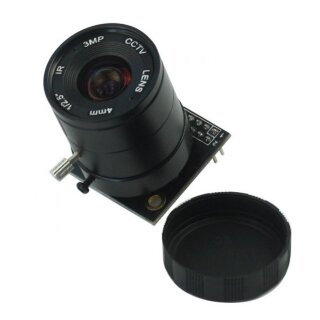

Arducam B0019 5 Mega pixel Camera Module OV5642 with CS mount Lens
Artnr.: AC2-200190
5 Mega pixel Camera Module OV5642 with CS mount Lens

35,90 € inkl. 19% MwSt.
30,17 € exkl. MwSt.

zzgl. Versand

bestellbar

Lieferzeit: 61 - 63 Arbeitstage

Beschreibung

Features:

  • Onboard LDO regulators for 2.8V and 1.8V
  • Single 3.3V power input
  • 2.54mm (0.1 inch) standard pin out
  • Open source project www.ArduCAM.com supported
  • active array size: 2592 x 1944
  • power supply:
    core: 1.5VDC + 5% (internal regulator)
    analog: 2.6 ~ 3.0V
    I/O: 1.7 ~ 3.0V
  • output formats :
    (8-bit): YUV(422/420) / YCbCr422,
    RGB565/555/444, CCIR656,
    8-bit compression data,
    8/10-bit raw RGB data
  • lens size: 1/4″
  • input clock frequency: 6 ~ 27 MHz
  • shutter: rolling shutter
  • maximum image transfer rate:
    5 megapixel (2592×1944): 15 fps (and any size scaling down from 5 megapixel)
    1080p (1920×1080): 30 fps
    720p (1280×720): 60 fps
    VGA (640×480): 60 fps
    QVGA (320×240): 120 fps
  • scan mode: progressive
  • pixel size: 1.4 μm x 1.4 μm
  • image area: 3673.6 μm x 2738.4 μm
  • RAW,RGB,YUV,JPEG output support
  • External 1/4 inch high quality M12x0.5 lens
  • Camera mount Lens is LS-6018

Pin Out:

Pin No.

PIN NAME

TYPE

DESCRIPTION

1

VCC

POWER

3.3v Power supply

2

GND

Ground

Power ground

3

SCL

Input

Two-Wire Serial Interface Clock

4

SDATA

Bi-directional

Two-Wire Serial Interface Data I/O

5

VSYNC

Output

Active High: Frame Valid; indicates active frame

6

HREF

Output

Active High: Line/Data Valid; indicates active pixels

7

PCLK

Output

Pixel Clock output from sensor

8

XCLK

Input

Master Clock into Sensor

9

DOUT9

Output

Pixel Data Output 9 (MSB)

10

DOUT8

Output

Pixel Data Output 8

11

DOUT7

Output

Pixel Data Output 7

12

DOUT6

Output

Pixel Data Output 6

13

DOUT5

Output

Pixel Data Output 5

14

DOUT4

Output

Pixel Data Output 4

15

DOUT3

Output

Pixel Data Output 3

16

DOUT2

Output

Pixel Data Output 2 (LSB)

17

PWDN

Input

Power down

18

RSV

NC

Reserved

19

DOUT1

Output

Pixel Data Output 1(10bit mode)

20

DOUT0

Output

Pixel Data O

Additional Resources:
