Arducam B0100 1.2MP AR0134 Camera for USB Shield

Arducam B0100 1.2MP AR0134 Camera for USB Shield

Arducam B0100 1.2MP AR0134 Camera for USB Shield

Arducam B0100 1.2MP AR0134 Camera for USB Shield

Artnr.: AC2-201000
HAN: B0100
Hersteller: Arducam

75,80 €

inkl. 19% MwSt.

(63,70 € exkl. MwSt.)

ausverkauft

Item Description:

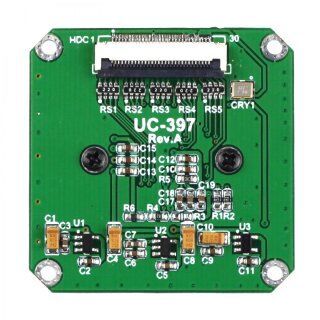

The AR0134 module is a 1/3 inch 1.2MP global shutter color camera module which can be operated in its default mode or programmed for frame size, exposure, gain, and other parameters. The default mode output is a full-resolution image at 54 frames per second (fps). It outputs 12-bit raw data, using either the parallel output ports. The device may be operated in video (master) mode or in frame trigger mode.

Note:

Please note that camera module only can be used together with Arducam USB shield.

Feature

1/3" optical format
1.2MP 1280 x 960 AR0134 global shutter sensor
3.75 x 3.75 u Pixel size
54fps at full resolution
5.3V/lux-sec responsivity
64dB dynamic range
single 3.3V power input
Parallel camera interface
Default M12 mount 6mm LS-6020 lens

Application

Security
High dynamic range imaging
Unattended surveillance
Stereo vision
Machine vision
Automation

Package Including

1 pcs Arducam CMOS AR0134 1/3-Inch 1.2MP Color Camera Module

Additional Resources:

Versandgewicht:	0,05 kg
