Item Description:

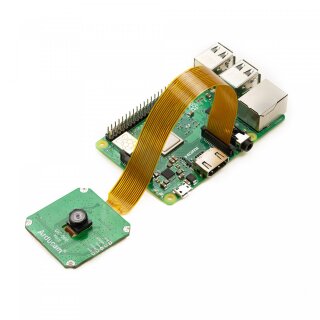

The Arducam monochrome (B&W) global shutter 1280x800 resolution OV9281 MIPI camera module is mainly designed for Raspberry Pi boards, and it can be connected directly to RPi"¯s CSI-2 camera interface without additional hardware. This camera is based on 1/4-inch Omnivision OV9281 image sensor which adopts OmniPixel3-GS™ technology to provide full-frame, sub-sampled, and windowed 8/10-bit MIPI images, and capable of operating at up to 60fps in full resolution at 1-lane MIPI bus with complete user control over image quality.
The sensor's global shutter and excellent low-light sensitivity allow it to be used for any application that needs gesture detection, head and eye tracking, and depth and motion detection.
Note:
This camera and RPI driver doesn"¯t support ISP functions like AEC/AGC etc. Arducam SDK for this camera supports RAW/JPEG/H.264 format, and manual or software auto exposure/gain/white balance.
Key Specifications:
- Sensor: Monochrome global shutter OV9281
- Pixel Size: 3 µm x 3 µm
- Active array size: 1280 x 800
- Optical Size: 1/4 inch
- EFL: 0.83
- F.NO: 2.0
- FOV: 166 Deg. diagonal
- Focusing Range: 65mm ~ infinite
- Output interface: 1-lane MIPI serial output
- Output formats: 8/10-bit BW RAW
- Maximum image transfer rate: 1280 x 800@60 fps
- Board Size: 40mm x 40mm
- IR Sensitivity: visible light only, build-in 650nm IR cut filter
Application:
- Cellular phones
- Toys
- Tablets
- Machine vision
- ARM/FPGA/DSP based platforms
Package Including:
- 1 pcs Arducam OV9281 MIPI 1MP Monochrome Global Shutter Camera Module
- 1 pcs 150mm 15pin 1.0mm to 22pin 0.5mm pitch FPC cable
- 1 pcs 80mm 22pin 0.5mm pitch FPC cable
Additional Resources:
