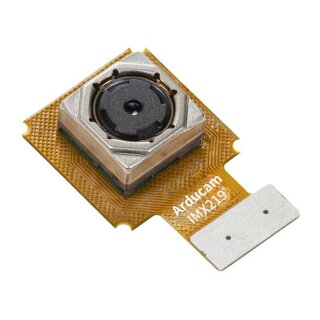

Arducam B0182 IMX219 Auto Focus Camera Module

Arducam B0182 IMX219 Auto Focus Camera Module

Artnr.: AC2-201820
HAN: B0182
Hersteller: Arducam

Arducam IMX219 Auto Focus Camera Module, drop-in replacement for Raspberry Pi V2 Camera and Jetson Nano Camera

27,90 €

inkl. 19% MwSt.

(23,45 € exkl. MwSt.)

zzgl.

bestellbar
Lieferzeit: ca. 3 Monate (DE - Ausland abweichend)

Beschreibung
Kundenrezensionen

The Raspberry Pi Camera Module v2 has a fixed-focus lenses, which are either glued or need manual adjustment with a tool. Sometime you want to see the object both closer and far away from the camera through the software control without human intervention.

Arducam has designed a series of IMX219 replacement sensor modules to add the flexibilities to your Raspberry Pi Camera V2 Camera Board. This autofocus sensor module can adjust the lens focus on a Raspberry Pi camera board through the software.

SEE NATURALLY: 8MP IMX219 sensor drop-in replacement module for your Raspberry Pi Camera Module V2, works natively compatible with the Raspberry Pi
SEE CLOSER: Software-controllable moveable Lens. See in millimeter level, much closer than the fixed focus (1 m to infinity) official lens
SEE PRECISELY: Precise manual focus control with UP and DOWN keys on the keyboard to handcraft your pixel accuracy step by step. See Arducam Github for more details
SEE SMARTER: Autofocus python scripts to enable the auto focus features on the Raspberry Pi, powered by OpenCV
Note: Please detach and re-attach the connectors gently and carefully, otherwise you might cause damage to the connection. The Raspberry Pi Camera Module V2 is NOT included.
Note: By default, the examples reset the focus as you quit the program or power off. To fix the focus, please alter the example code on your own.

Features:

Sony 8MP IMX219 Sensor
Optical Format: 1/4 inch
Frame Rate: 30fps@8MP, 60fps@1080p, 180fps@720p
Data Format: RAW8/RAW10
EFL: 2.8mm
F.NO: 2.2
Focus Type: Programmable/Auto Focus
View Angle: 77.6 (Diagonal)
Interface: MIPI CSI-2 2-lane
IR Sensitivity: Visible light, Integral IR Filter
Horizontal FoV: 65°
Vertical FoV: 51°
Focus Distance: 80mm to infinity

Application:

Unmanned Aerial Vehicles (UAVs)
Building Drones
Autonomous Robotic Systems
Mobile Medical Imaging
Intelligent Video Analytics (IVA)

Package Includes:

1pcs Arducam IMX219 Auto Focus Camera Module

Additional Resources:
