Arducam B0206 OV7251 0.3MP Global Shutter Monochrome IR Sensitive Camera Module (NoIR) for Raspberry Pi 4/3B+/3

Arducam B0206 OV7251 0.3MP Global Shutter Monochrome IR Sensitive Camera Module (NoIR) for Raspberry Pi 4/3B+/3

Artnr.: AC2-202060
HAN: B0206
Hersteller: Arducam

Arducam OV7251 0.3MP Global Shutter Monochrome IR Sensitive Camera Module (NoIR) for Raspberry Pi 4/3B+/3

29,90 €

inkl. 19% MwSt.

(25,13 € exkl. MwSt.)

zzgl.

ausverkauft

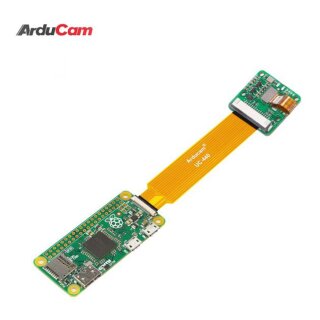

The Arducam monochrome (B&W) global shutter VGA resolution OV7251 camera module is mainly designed for Raspberry Pi boards, and it can be connected directly to RPi's CSI-2 camera interface without additional hardware.

This OV7251 camera module is compatible with the official V4L2 camera driver, and you can also use Arducam SDK for higher frame rates.

The sensor's global shutter and excellent low-light sensitivity allow it to be used for any application that needs gesture detection, head, and eye tracking, and depth and motion detection.

Applications

Gesture Detection
Head, eye tracking
Depth and motion detection
Home Security system
Wildlife photograph, etc.

Featrues

Supported By The Lastest Official Firmware: The Raspberry Pi has recently updated its firmware with V4L2 camera drivers, which adds support including for OV7251. Thus this OV7251 camera module is compatible with the official V4L2 camera driver, and you can get it working easily just by enabling the overlay.
Global Shutter: Shoot high-speed moving objects in crisp sharp images. Avoid the rolling artifacts to get a much more accurate complete picture than the rolling shutter Pi cameras
Frame Rates: Capture video at 640×480/30fps when working with the official driver.
Application: this 0.31MP monochrome global shutter camera module has excellent low-light sensitivity, which makes it ideal for any application that needs gesture detection, head, and eye tracking, and depth and motion detection.

Image Sensor	Monochrome Global Shutter OV7251
Optical Size	1/7.5"
Resolution	0.3MP 640×480
Max Frame Rate	640 x 480@30fps
Pixel Size	3 μm x 3 μm
Focal Length	1.3mm
F.NO	2.2
Focus Distance	65 cm to infinity
Focus Type	Fixed Focus
Field of View(FOV)	86.5°(D), 72.9°(H), 57.7°(V)
IR Sensitivity	NoIR, IR sensitive
Output Format	8/10-bit BW RAW
Output Interface	2-lane MIPI serial output
Camera Board Size	24mm x 25mm
Camera Connector	BBR13-24K6417
Board Connector	BBR43-24KB533

1 x Arducam OV7251 0.3MP Monochrome Global Shutter Camera Module NoIR
1 x 150mm 15pin 1.0mm FPC cable
1 x 73mm 15pin 1.0mm to 22pin 0.5mm pitch FPC cable

Note

This camera and RPI driver doesn't support hardware JPEG/H.264 encoding
The camera supports Raspberry Pi native driver and V4L2 apps
The maximum frame rate of OV7251 is 30fps with the official driver. If you need higher frames, visit Arducam OV7251 documentations

Versandgewicht:	0,03 kg
