Arducam B0212 2MP IMX323 Low Light Low Distortion Camera with USB 2.0 UVC, S-Mount

Item Description:

As part of Project Jetvariety, which allows any camera modules to be connected to the high-speed CSI-2 connector on the Jetson Nano. Arducam just released this OV7251 monochrome global shutter camera module for Jetson Nano.This camera is based on a 1/7.5-inch Omnivision OV7251 image sensor which adopts OmniPixel3-GS™ technology to provide full-frame, sub-sampled, and windowed 8/10-bit MIPI images, and capable of operating at up to 100fps in VGA resolution with complete user control over image quality.
The sensor's global shutter and excellent low-light sensitivity allow it to be used for any application that needs gesture detection, head and eye tracking, and depth and motion detection.

Key Specifications:

• Sensor: Monochrome global shutter OV7251
• Pixel Size: 3 µm x 3 µm
• Active array size: 640*480
• Optical Size: 1/7.5 inch
• EFL: 1.3
• F.NO: 2.2
• IR Sensitivity: build-in 650nm IR cut filter (Check IR sensitive version with SKU B0206)
• FOV: D86.5 Deg./H72.9 Deg./V57.7 Deg.
• Focusing Range: 65mm ~ infinite
• Output interface: 1-lane MIPI serial output
• Output formats: 8/10-bit BW RAW
• Maximum image transfer rate: 120fps@640 x 480, 180fps@320 x 240, 360fps@160 x 120
• Board Size: 40mm x 40mm

Driver Features:

• Support Gray, Y10, Y16
• Support standard V4L2 framework, Video Nodes and Controls (Exposure, Gain and depending on camera parameters)
• Support External Trigger Global Shutter Camera
• Support Single Line Driver Installation Command
• Support OpenCV Friendly and Provides Source Code Demonstration
• Support Dual Camera Synchronzation

Application:

• Cellular phones
• Toys
• Tablets
• Machine vision
• ARM/FPGA/DSP based platforms

Package Including:

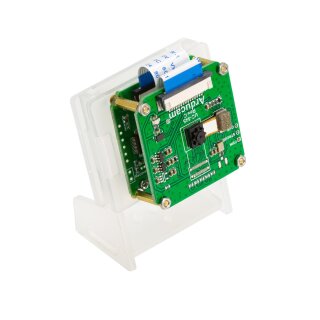

• 1 pcs Arducam OV7251 MIPI 0.3MP Monochrome Global Shutter Camera Module
• 1 pcs Arducam Adapter Board for Jetson Nano
• 1 pcs 150mm 15pin 1.0mm FPC cable
• 1 pcs 73mm 15pin 1.0mm to 22pin 0.5mm pitch FPC cable
• Acrylic case for the camera module

Additional Resources:

• Arducam Documentation – Arducam Cameras for Jetson Nano
• Video – Arducam MIPI Camera Module for Jetson Nano
• Blog – Arducam MIPI Camera Modules for Jetson Nano
