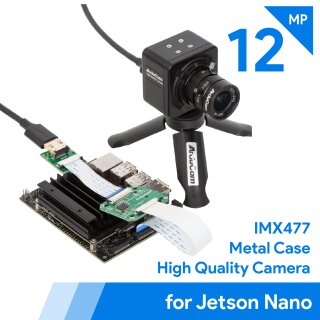

Arducam B0243 IMX477 12.3MP Camera Kit with Metal Case for Jetson Nano, CS-Mount
Artnr.: AC2-202430

119,00 € inkl. 19% MwSt.
100,00 € exkl. MwSt.
nicht lieferbar

Beschreibung

Item Description:

The official Pi HQ camera is only available in one model. It doesn't include a lens and a case, and only comes with limited recommendations. To solve these pain points and implement the applications on Jetson Naon, Arducam released this complete camera bundle, an IMX477 camera board with a 6mm CS lens, a customized metal enclosure, a Jetson Nano adapter board, a tripod stand and a set extension adapter. This camera module supports Jetson Nano as well as all Raspberry Pi models and PC/laptop (need MIPI adapter board and USB camera shield, not included).

Features:

  • Work Natively with Jetson Nano: Jetvariety adapter board is included, hassle-free to work with Jetson Nano A02 and B01. NOTE: only RAW image supported, no ISP supported.
  • Get Clearer Images: This camera adopts 1/2.3" 12.3 Megapixel IMX477 sensor for sharp image, max. still resolution 4056(H) x 3040(V).
  • No Hassle: No more wasting time looking for the CS lens and camera case. It includes A 1/2.3" 6mm focal length CS lens, and an industrial metal enclosure mounted on the camera board, the bundle also comes with a Jetvariety adapter board, mini tripod stand and a set HDMI extension adapter.
  • More Lanes: The Arducam high quality camera module has a 4-lane MIPI CSI-2 interface, more than the official one, makes it possible to get more data through.
  • Support More Platforms: It supports all Jetson Nano A02&B01 models. For Raspberry Pi models (Pi 4, Pi 3/3B+/3A+, CM3/3+, Pi Zero, and more), you need to remove the Jetvariety adapter board and connect the camera cable to Raspberry Pi (camera cable included). For PC/laptop, you need a camera shield and a MIPI adapter board, please search for USB2 camera shield B0175 or USB3 camera shield B0111, and MIPI adapter board B0123.

Ordering in bulk- Or having questions about this camera- Talk to us!

Specifications

  • Camera

- Sensor: IMX477

- Optical Format: 1/2.3" (diagonal 7.857mm)

- Resolution: 4056(H) x 3040(V) 12.3MP

- Pixel Size: 1.55um x 1.55um

- IR Sensitivity: Visible light

- Interface: 4-lane MIPI CSI-2

- Default Lens Mount: CS-Mount

- Frame Rate: (depends on the target platform, maximum fps limit might apply)

  Full resolution@60fps(normal), 4K2K@60fps, 1080p@240fps

  Full resolution@40fps (12bit normal)

  Full resolution@30fps (DOL-HDR, 2 frames)

  • Lens

- Format: 1/2.3 inch

- Focal Length: 6mm

- Aperture (F): F1.4

- Field of View (FOV): 65° (H)

- Mount: CS-Mount

- Back Focal Length: 12.5mm

- MOD: 0.1m Dimension: Φ28×26.58mm

- Weight: 29g

Package Includes

  • 1 pcs complete 12.3MP IMX477 color camera mounted in a metal encolsure

  • 1 pcs 1/2.3 inch 6mm focal length CS-mount lens and

  • 1 pcs HDMI-CSI camera adapter board with 60mm/2.36inch 15 pin camera cable

  • 1 pcs Jetvariety adapter board

  • 1 pcs 1m high-speed HDMI cable

  • 1 pcs mini tripod stand

  • 1 pcs 150mm/6inch 15 pin camera cable

  • 1 pcs 73mm/2.9inch 15 pin to 22 pin camera cable for Raspberry Pi Zero&W
