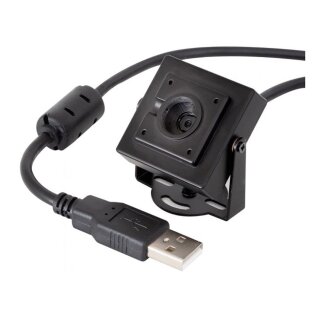

Arducam B029201 4K 8MP IMX219 Autofocus USB Camera Module with Metal Case
Artnr.: AC2-202921
Arducam 4K 8MP IMX219 Autofocus USB Camera Module with Metal Case, 1080P Mini UVC USB2.0 Video Webcam with Dual Microphones, 3.3ft/1m Cable for Computer, Laptop, Raspberry Pi, Jetson Nano

45,90 € inkl. 19% MwSt.
38,57 € exkl. MwSt.

zzgl. Versand

ab Lager lieferbar

Lieferzeit: 1 - 3 Arbeitstage

Beschreibung

Overview

This 8MP 4K Autofocus USB Camera is based on 1/4" 8MP IMX219 image sensor, autofocus, UVC compliant USB 2.0 cameras. No extra drivers needed, the native UVC drivers of Windows, Linux and Mac shall be compatible with this camera. Auto control the focusing process to capture the moving object, works like the human eye, and shots the imaging you want. Ultra HD resolution meets your request for higher quality video still pictures resolution.

Feature

  • More than HD: This camera adopts an 8MP IMX219 sensor for sharp image and accurate color reproduction, Max. still resolution 3264H x 2448V.
  • Autofocus: Shoot objects at millimeter level and in the distance on the same camera, automatically controlled without lens adjustment tool, closer and easier than the fixed focus camera.
  • Plug & Play: Ready to use, UVC-compliant, just connect the camera to PC, laptop, Android device, or Raspberry Pi with the included USB cable without extra drivers to be installed.
  • Applications: Assemble with a metal case and rotatable bracket, this mini-sized camera is highly recommended for a home surveillance system, monitoring 3D Printer, and you can easily put it on the desk or any flat surface, or mount it on the wall or tripod mount.

SPECS

Camera

Sensor: 1/4" IMX219

Resolution: 8MP 3264H x 2448V

Data Format: MJPG/YUY2

Frame Rate: MJPG: 15fps@3264×2448/2592×1944; 30fps @1920×1080/1600×1200/1280×720/800×600/640×480
YUV: 10fps@1280×720/800×600/640×480/320×240

Lens

-Field of View (FOV): H= 60°

Focusing Range: 40mm to infinity

Focus Type: Motorized focus

IR Sensitivity: Integral IR filter, visible light only

MORE SPECIFICATIONS

Functionality and Compatibility

- Auto Controlled Features: Saturation, Contrast, Acutance, White balance, Exposure.

- Audio: Dual microphone (optional dual channel)

- System Compatibility: Windows, Linux, and Mac with UVC

Power

- Power Supply: DC 5V

- Working Current: MAX 200mA

Physical

- Operating Temp.: -4°F~158°F (-20°C~+70°C)

- Dimension: 44mmx25x44mm

- Cable Length: 3.3ft (1M)

Application

Video conference

Home video surveillance system

Day&night low light vision security camera system

Dash cam

Monitoring 3D printer

Baby Camera

Robot and machine vision

Documentation

Manual
