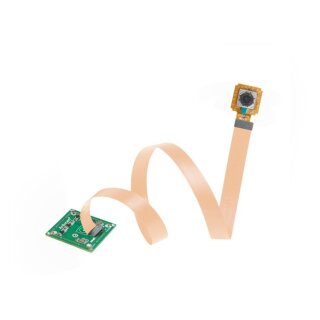

Arducam B0321 8MP IMX219 Autofocus USB2.0 Camera Module with 300mm Extension Cable

Arducam B0321 is a new member of the Arducam's USB camera family. It's an 8MP, based on the 1/4" IMX219 image sensor, UVC compliant, autofocus USB 2.0 camera.

No longer be anxious about installing the driver! The native UVC drivers of Windows, Linux and Mac shall be compatible with this camera so that it does not require extra drivers to be installed.

This 8MP IMX219 high resolution color COMS sensor and the autofocus feature make it can be widely used in the home surveillance system, monitoring 3D Printer, object recognition and tracking, or other machine vision application.

• More than HD: This camera adopts 8MP IMX219 sensor for sharp image and accurate color reproduction, Max. still resolution 3264H x 2448V.
• Autofocus: Shoot objects in millimeter level and in the distance on the same camera, automatically controlled without lens adjustment tool, closer and easier than the fixed focus camera.
• Frame Rates: TBD
• Plug&Play: UVC-compliant, just connect the camera to PC, laptop, Android device or Raspberry Pi with the included USB cable without extra drivers to be installed.
• Applications: This small 38mmx38mm camera board is highly recommended for a home surveillance system, monitoring 3D Printer, object recognition and tracking, or other machine vision application.
• Note: By default, the examples reset the focus as you quit the program or power off. To fix the focus, please alter the example code on your own.

Camera

• Sensor: 1/4" IMX219
• Resolution: 8MP 3264H x 2448V
• Data Format: MJPG/YUY2
• Frame Rate: TBD

Lens

• Field of View (FOV): H= 60°
• Focusing Range: 40mm to infinity
• IR Sensitivity: Integral IR filter, visible light only

Functionality and Compatibility

• Auto Controlled Features: Saturation, Contrast, Acutance, White balance, Exposure.
• System Compatibility: Windows, Linux, and Mac with UVC

Power

• Power Supply: DC 5V
• Working Current: MAX 200mA

Physical

• Operating Temp.: -4°F~158°F (-20°C~+70°C)
• Dimension: 38mmx38mm
• Cable Length: 3.3ft (1M)

• 1pcs Arducam IMX219 USB2.0 Camera Module
• 1pcs Arducam 300mm Extension Cable
• 1pcs 3.3ft (1M) USB cable
