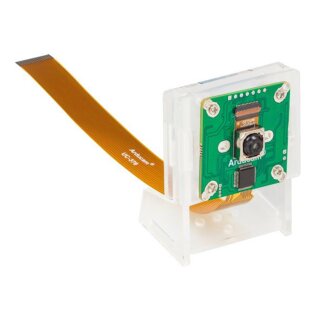

Arducam B0324 Pivariety 21MP IMX230 Color Camera Module for RPi 4B
Artnr.: AC2-203240
Arducam Pivariety 21MP IMX230 Color Camera Module for RPi 4B, 3B+, 3A+, CM3/CM4 and Jetson Nano/Xavier NX

119,00 € inkl. 19% MwSt.
100,00 € exkl. MwSt.
bestellbar

Lieferzeit: 61 - 63 Arbeitstage

Beschreibung

Arducam Pivariety is a Raspberry Pi camera solution to take the advantage of using its hardware ISP functions. Using Arducam Pivariety camera modules, users can get better performance and a wider variety of camera, lens options. For a long time, Raspberry Pi users are limited to use the closed-source official supported camera driver and camera modules (V1/V2/HQ). Now Arducam made it possible to provide well-tuned ISP for Pivariety camera modules with Auto Exposure, Auto White White Balance, Auto Gain Control, Lens Shading Correction, etc.

  • 21MP Sony IMX230 Exmor RS? color sensor, up to 5344×4012@9 fps.
  • Auto Exposure Control, Auto White Balance.
  • Programmable focus control.
  • Gstreamer support.
  • Upcoming V4L2 support.
  • Compatible w/ all libcamera-based apps maintained by the RPi foundation.

Specifications

  • Pixel Size: 1.12um x 1.12um
  • Optical Size: 1/2.4"
  • Active Pixels: 5344H × 4016V
  • Lens Spec: Focal length: 4.77mm, F.NO: 1.75±5%, FOV: horizontal 64deg
  • IR Sensitivity: Integral IR filter, visible light only
  • Focus Type: Motorized focus, programmable focus control
  • Frame Rate: 5344×4012@9 fps, 3840×2160@10 fps, 2592×1944@15 fps, 2656×2004@30 fps, 1920×1080@30 fps, 1280×960@120 fps, 1280×720@120 fps, 640×480@120 fps
  • Output Format: Output image format of JPG, YUV420, RAW, DNG; output video format of MJPEG, H.264
  • Sensor Output Format: RAW10
  • ISP Output Format: Output image format of JPG, YUV420, RAW, DNG; output video format of MJPEG, H.264
  • Interface Type: 2-Lane MIPI
  • Board Size: 38x38mm

Applications

  • UAV/Drones/FPV camera
  • Machine Vision
  • Robotics
  • IoT
  • Face Recognition
  • Defect Detection

Package Contents

1 x Arducam 21MP IMX230 ISP Camera Module
1 x 150mm 22pin 0.5mm FPC cable
1 x 150mm 15pin 1.0mm to 22pin 0.5mm pitch FPC cable
1 x acrylic case kit with assembly accessories
