Arducam B0331 1MP*4 Quadrascopic Camera Bundle Kit for Raspberry Pi

Artnr.: AC2-203310

Arducam B0331 1MP*4 Quadrascopic Camera Bundle Kit for Raspberry Pi

Arducam 1MP*4 Quadrascopic Camera Bundle Kit for Raspberry Pi, Four OV9782 Global Shutter Color Camera Modules and Camarray Camera HAT

359,00 € inkl. 19% MwSt.

301,68 € exkl. MwSt.

kostenfreie Lieferung

bestellbar

Lieferzeit: 61 - 63 Arbeitstage

Beschreibung

Overview

This Arducam quadrascopic camera bundle incorporates four 1MP OV9782 global shutter cameras, and the cutting-edge MIPI stereo camera breakthrough from Arducam – The Arducam Camarray HAT. As the upgraded version of Arducam Synched Stereo Camera HAT, the Camarray further pushes the multi-camera limits and doubles the interfacing capabilities to allow 4 synchronized MIPI camera modules to be interfaced to a single MIPI CSI-2 slot on prevailing single-board computers like Raspberry Pi. Also, as the Camarray HAT releases, Arducam starts to support a variable baseline for stereo camera applications with some modified Arducam camera modules, such as those OV9782 ones included in this bundle. Since no shared camera board or clock-sharing soldering is required for the image sensors, you can kick off your prototyping for stereo camera applications and then decide the optimal baseline. This camera can only get four images. Arducam also accepts subsequent customizations for your stereo camera applications.

Features

Complete Synchronization: The frames of four cameras of this bundle are synchronized at the hardware level, extra synchronization scheme by time stamping or so does not need to be considered.
Color Global Shutter: Shoot high-speed moving objects in crisp sharp images. Avoid the rolling artifacts to get a much more accurate complete picture than the rolling shutter Pi cameras.
Variable Baseline Extension: Compared to the fixed stereo camera module, this stereo camera bundle has higher flexibility. The separated cameras can be used with a variable baseline device and controlled through the computer control system to achieve rapid and dynamic interactive adjustment of the moving parts for multi-degree-of-freedom stereo quadrascopic vision.

Applications

Head, and eye-tracking
Gesture detection
Motion detection
3D reconstruction
Depth-related vision applications

Specifications

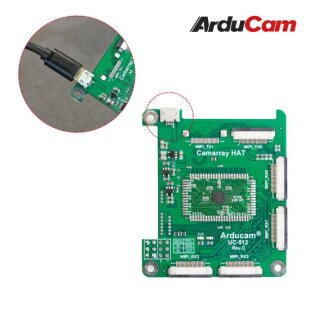

- Camarray Quadrascopic Stereo Camera HAT

Support Platform: Raspberry Pi
Inputs: x4 CSI-2 2-lane Input Ports
output: x1 CSI-2 2-lane Output Port
CSI-2 Speed: 1.0 Gbps/Lane
Camera Control: I2C Broadcasting for all cameras, no individual control
ISP Support: Supports
External Trigger Support: Supports
Multiple HAT Sync: Supports through external trigger mode
Aggregate mode: Two/Three/Four MIPI camera side-by-side combined, channel 0/1/2/3 software switching on the fly.
Resolution&Frame Rate

RAW8 RAW10

5120x800@45fps 5120x800@35fps

5120x720@50fps 5120x720@40fps

2560x400@150fps /
HAT Size: 65 x 56 mm

– Camera

Sensor: Color global shutter OV9782
Pixel Size: 3 µm x 3 µm
Active Array Size: 1280 x 800
Optical Size: 1/4 inch
Focusing Range: 30mm ~ infinite
IR Sensitive: With an IR filter, sensitivity to visible light
Output interface: 2-lane MIPI serial output
Board Size: 24mm x 25mm

– Lens

Optical Format: 1/2.7"
Distortion: <1%
Effective Focal Length: 2.8mm
FOV on 1/4" RPi Camera: 75° (H)
F/NO: 2.8
Mount: M12
Size: 14mm x 15.6mm
Weight: 4g

NOTES

Raspberry Pi board is not included in the package.
This bundle kit is not recommended for Raspberry Pi Zero.
The OV9782 cameras in this kit are the special version and cannot be connected to Raspberry Pi directly.
This kit is released for official Raspberry Pi/Jetson Nano/Xavier NX boards by default, and it does not support other third-party boards.
This kit uses 1MP OV9782 sensor. Due to the limitations of the sensor, the camera may experience lens shading under low exposure conditions.
