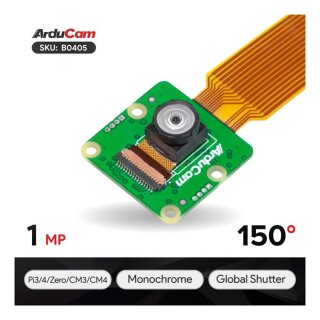

Arducam B0405 OV9281 Monochrome Global Shutter Camera Module with wide angle for Raspberry Pi
Beschreibung
PRODUCT DESCRIPTION
Based on OmniVision's OV9281 high-speed global shutter image sensor, Arducam OV9281 camera module is released for the Raspberry Pi family. It is compatible with any existing Pi model and works well with the latest software from the foundation.
Features best-in-class near-infrared (NIR), and quantum efficiency (QE), a wider angle lens, and a V2-like form factor, it can meet high-resolution and low-latency requirements and is widely used in consumer and industrial computer vision applications, including augmented reality (AR), virtual reality (VR), collision avoidance in drones, bar code scanning and factory automation or etc.
SPECIFICATION
| Sensor | OV9281 |
| Optical Size | Type 1/4" |
| Pixel Size | 3µm×3µm |
| Shutter Type | Global Shutter |
| Max Sensor Resolution | 1280 x 800 |
| Color Filter Array | None (Monochrome) |
| Resolution and Frame Rate | RAW8/RAW10: 640×480@260fps, 1280×720@144fps, 1280×800@120fps |
| Supported Platform | Pi 4/3/Zero/CM3/CM4 |
| Output | RAW8/RAW10 |
| Focus Type | Manual |
| Focus | 50cm~INF |
| Lens | f/2.0; EFL: 1.69mm; FoV: 150° (D) |
| IR Sensitivity | build-in 650nm IR-cut filter, sensitive to visible light only |
| Dimensions | 25mm × 24mm |
DOCUMENTATIONS
PACKING LIST
- 1 x Arducam OV9281 Camera Module for Pi
- 1 x 150mm 15pin to 22pin Ribbon Flex Cable
- 1 x 80mm 22pin Ribbon Flex Cable
