Beschreibung
PRODUCT DESCRIPTION

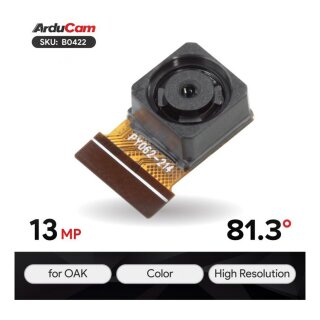

This Arducam IMX214 13MP high resolution camera module is designed and released as the color camera in OAK Lite variants; OAK-D-Lite and OAK-1 Lite.
It is also compatible with OAK FFC boards (OAK-FFC-3P, OAK-FFC-4P), so you can easily evaluate its sensor and optics performance via a camera board and a flex cable.
SPECIFICATION
|
Sensor |
IMX214 |
|
Optical Size |
Type 1/3.1" |
|
Pixel Size |
1.12µm×1.12µm |
|
Shutter Type |
Rolling Shutter |
|
Color Filter Array |
RGB Color |
|
Max Sensor Resolution |
4224 x 3136 |
|
Resolution & Frame Rate |
4224 x 3136@30fps, 4056×3040@30fps, 3840×2160@30fps, 1920×1080@35fps |
|
Supported Platform |
OAK-D-Lite, OAK-1 Lite, OAK-FFC-3P, OAK-FFC-4P |
|
Focus Type |
Manual |
|
Focus |
50cm~INF |
|
Lens |
f/2.2, EFL: 3.37mm, FoV: 81.3° (D) |
|
IR Sensitivity |
Build-in 650nm IR filter, sensitive to visible light only |
|
Module Dimensions |
8.5mm x 14.67mm |
DOCUMENTATIONS
PACKING LIST
-
1 x IMX214 Camera Module for DepthAI OAK
