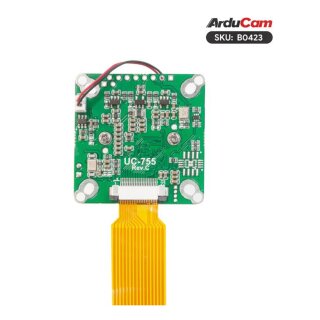

Arducam B0423 2MP Ultra Low Light STARVIS IMX462 Motorized IR-CUT Camera for Raspberry Pi

Arducam B0423 2MP Ultra Low Light STARVIS IMX462 Motorized IR-CUT Camera for Raspberry Pi

Artnr.: AC2-204230
GTIN: ß000026B0423
HAN: B0423
Hersteller: Arducam

Arducam 2MP Ultra Low Light STARVIS IMX462 Motorized IR-CUT Camera for Raspberry Pi

79,90 €

inkl. 19% MwSt.

(67,14 € exkl. MwSt.)

im Zulauf
Lieferzeit: 6 - 7 Wochen (DE - Ausland abweichend)

Beschreibung
Kundenrezensionen

Arducam 2MP IMX462 Motorized IR-CUT Camera is capable of capturing visible and near-infrared images with very low noise even in extremely low-light conditions or no light (near 0 lux). This high-speed camera captures uncompressed Full HD images at 50fps at full resolution. This is great for minimizing inter-frame distortion and reducing motion blur, resulting in sharper images with more scene detail when capturing moving objects. High sensitivity, low dark current and no smear can be achieved through the adoption of R, G and B primary color mosaic filters.

Applications

Surveillance cameras
FA cameras
Industrial cameras
Autonomous mobile robots, UGV/UAV, ADAS, etc.

Features

Input frequency: 74.25 MHz / 37.125 MHz
Pixels: Approx. 1920 (H) × 1080 (V) 2.07 million pixels
Maximum frame rate in Full HD 1080p mode: 30 fps
10-bit/12-bit A/D converter
CSI-2 serial data output: 2 Lane, RAW10 / RAW12 output

Specifications

Sensor	SONY STARVIS IMX462
Optical Size	Type 1/2.8'' (Diagonal 6.46 mm)
Pixel Size	2.9μm×2.9μm
Shutter Type	Rolling Shutter
Number of the Active Pixels	1920x1080
Color Filter	Bayer RGB
Frame Rates	1920x1080@60fps;1280x720@60fps
Supported Platform	Pi 4/3/Zero/CM3/CM4
Output Format	RAW10/RAW12
Focus Type	Manual Focus
Lens Mount	M12 Mount
F.NO	1.6±10%
Effective Focal Length	4.3±5%mm
MOD.	2.0
Back Focal Length	5.43±0.2mm
Field of View(FOV)	103°(D) x 90°(H) x 74°(V)
IR Sensitivity	Motorized IR-cut
Camera Board Size	38mm x 38mm

Comparasion

Among the Sony STARVIS series sensors, IMX290, IMX462, and IMX327 are some of the more popular ones. Though they are all belong to the STARVIS series, there are some differences between them. Please see the following table about the similarities and differences:

Specifications	Sensor
Specifications	IMX462	IMX290	IMX327
Mega Pixels	2.10MP	2.07MP	2.07MP
Max Resolution	1920x1080	1920x1080	1920x1080
Optical Size	1/2.8''	1/2.8''	1/2.8''
Pixel Size	2.9μm×2.9μm	2.9μm×2.9μm	2.9μm×2.9μm
G Sensitivity*	10471	5486	10471
Max Frame Rate	120fps(sensor)	120fps(sensor)	90fps(sensor)
NIR Sensitivity(850nm)*	~1	~0.5	~1

G Sensitivity*: Gravity sensitivity is an important indicator of camera performance in low light conditions. Higher the G sensitivity, better is the low light performance.
NIR sensitivity*:NIR imaging performance is one of the most crucial features for smart surveillance, smart traffic monitoring, and agricultural applications.

If low light sensitivity is your key requirement, then choosing IMX462(B0423) and IMX327(B0425) will better suit your requirements
If you need a higher frame rate for your project, then the higher frame rate IMX462(B0423) and IMX290 (B0424) will be your first choice
Among the above three sensors, IMX462 has relatively high near-infrared sensitivity. If you need this feature more, it is recommended that you choose IMX462 (B0423)

Package Including

1 x IMX462 Motorized IR-CUT Camera Module
1 x 150mm 15pin to 22pin flex cable

Notes

For any issues when using the camera, you can directly contact support@arducam.com .
If you have any custom requirements for this camera module, you can directly contact sales@arducam.com for help.

Documentation

Used on Pi- Arducam IMX462 Low Light Camera
