Arducam B0492R 2.3MP*2 AR0234 Color Global Shutter Synchronized Stereo Camera Bundle Kit for Raspberry Pi

Arducam B0492R 2.3MP*2 AR0234 Color Global Shutter Synchronized Stereo Camera Bundle Kit for Raspberry Pi

Artnr.: AC2-204928
HAN: B0492R
Hersteller: Arducam

Arducam 2.3MP*2 AR0234 Color Global Shutter Synchronized Stereo Camera Bundle Kit for Raspberry Pi

299,00 €

inkl. 19% MwSt.

(251,26 € exkl. MwSt.)

bestellbar
Lieferzeit: ca. 3 Monate (DE - Ausland abweichend)

Beschreibung
Kundenrezensionen

This Arducam stereo camera bundle kit consists of two synched AR0234 global shutter cameras and an Arducam Camarray stereo camera HAT.

As a stereo bundle system, it enables simultaneously working dual cameras with a variable baseline for better prototyping and evaluation with a single MIPI CSI camera slot: The two image sensors are on separate camera boards, and you easily move them around for different perspectives while the Camarray HAT handles the rest of the work.

Applications

Head, and eye tracking
Gesture detection
Motion detection
3D reconstruction
Depth-related vision applications

Features

Precision Sync: Based on AR0234, a color global shutter CMOS, ensuring flawless synchronization.
Rapid Capture: Leveraging the low-latency capabilities of the global shutter, it achieves a swift 94fps frame rate for seamless imaging.
Trigger Flexibility: This camera supports an external trigger function, enhancing control and adaptability to diverse scenarios.
Crisp Clear Vision: Fitted with an M12 low distortion lens, ensuring sharp and undistorted images for accurate analysis.
Supported by Raspberry Pi, only install arducam-pivariety driver for hassle-free integration.

Specifications

Image Sensor	AR0234
Image Sensor
Still Resolution	2.3 Megapixels
Color Filter Type	Color
Shutter Type	Global Shutter
Optical Size	1/2.6"
Pixel Size	3 μm x 3 μm
Sensor Active Area	1920(H)×1200(V)
Output Format	RAW10
Video Modes (on Raspberry Pi)	2560×720@94fps, 3840×1080@38fps, 3840×1200@38fps
IR Sensitivity	Integral IR-cut Filter, visible light only
Lens
Focus Type	Manual
Focal Length	3.6mm
F.NO	F2.8
Field of View (FOV)	120°(D)×90°(H)×75°(V)
Lens Mount	M12-mount
Distortion	<-0.33%
Default Focus Range	2m-infinite
Electrical and Mechanical
Working Current	Max 380 mA
Camera Board Size	40 ×40 mm

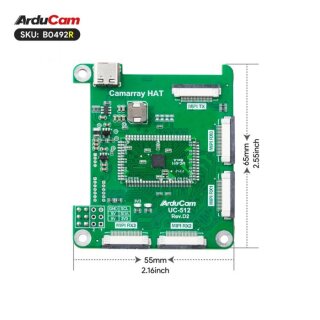

Camarray Hat Size	65×56 mm
Functionality and Compatibility
Supported OS	Raspberry Pi OS
Supported Platforms	Raspberry Pi
ISP Support	Supported by Raspberry Pi
External Trigger	Support
Aggregate mode	Full Spelling Combine

Package Including

2 x Arducam AR0234 Camera Module
1 x UC-512 Camarray HAT
2 x 15cm 22-22pin FFC Camera Cable
1 x 30cm 22-22pin FFC Cable
1 x 73mm 15-22pin Camera Cable
1 x Screw Pack

Notes

The kit does not include the Raspberry Pi Board.
The AR0234 cameras included in the kit are exclusively designed and can only be utilized with the Camarray HAT. Directly connecting any of them to the Raspberry Pi will not function.
This bundle kit is not recommended for Raspberry Pi Zero.
The I2C signal and clock of each camera are fully synchronized. It is unavailable to capture the same frame of images at different exposure times for each camera.
The lens on this camera is not interchangeable, if you need to replace the lens, please contact sales in advance!
The kit only supports the latest Raspberry Pi OS and libcamera apps. Legacy OS users should contact sales for support.

Documentation

Quick Start Guide
